Diamond wire saw tool type

Publish date:2022-07-12 16:34:15 Article From:Linsing Diamond Tools Clicks:

Diamond wire saw is a product that is widely used in modern industry and construction. From stone cutting to concrete engineering demolition, then to the cutting of jade, agate and other materials, and finally to the cutting of metal materials, the development of diamond wire saw is becoming more and more mature. , And the product line is becoming more and more abundant. This article introduces the types of diamond wire saw tools to let everyone better understand the diamond wire saw products, so as to choose the right diamond wire saw.

Diamond wire saw tools used in the stone cutting industry

1: Mine mining wire saw: This type of wire saw is mainly used for marble and granite mining. Compared with traditional drilling tools, the utilization rate of the stone during the wire saw mining process will be greatly improved, and it is used in combination with a circular saw. Under the circumstances, the efficiency of block mining is greatly improved.

2: Special-shaped stone processing wire saw: This type of wire saw is mainly used for special-shaped stone processing. What is special-shaped stone? In fact, special-shaped stone refers to stone with irregular shapes, which can be stone carvings, steles, arc-shaped slabs, cylinders, text sculptures, etc. These irregular stone cutting processes can be processed with special-shaped cutting wire saws.

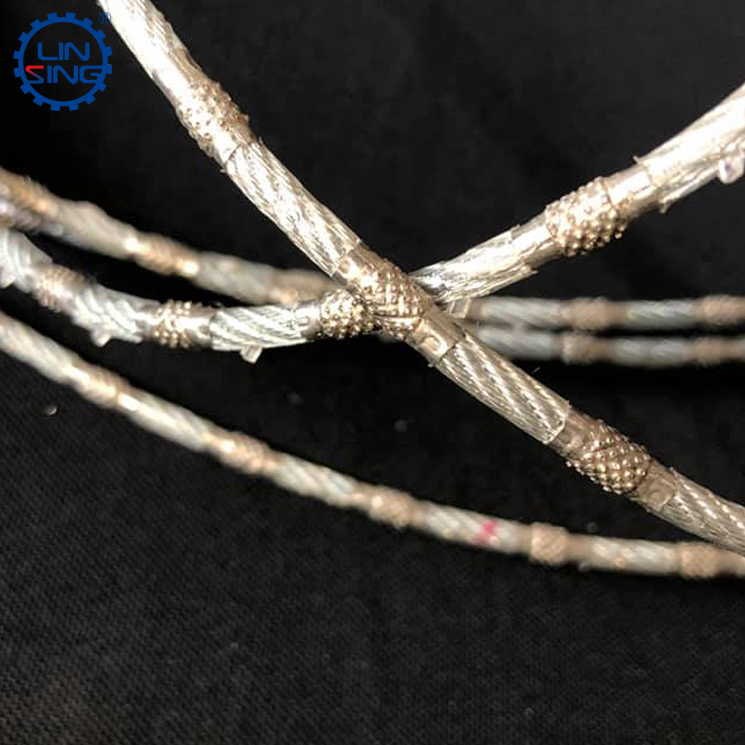

Diamond wire saw, wire saw rope

3: Block cutting wire saw: For marble and granite, blocks need to be cut into slabs. In order to speed up the cutting efficiency, multiple wire saw machines have emerged. This kind of machine can be installed with up to 120 wire saws. These wire saws Can work at the same time to quickly complete the plate cutting process.

4: Trimming wire saw: If the edge of the mining stone is uneven, it will shake. When the block is cut, it will affect the stability of the cutting. If the block is trimmed, then in the process of cutting the block, There will be no uneven bottom.

Diamond wire saw tool used in steel concrete building demolition industry.

Steel-concrete buildings mainly include bridges, steel-concrete load-bearing walls, load-bearing columns, wharfs, dams, etc. Because these buildings have steel bars inside, ordinary demolition methods will be time-consuming and laborious. How to make good use of such steel-concrete building blocks, diamond wire saw It can perfectly cut steel-concrete buildings and has been widely used at present. Steel concrete buildings mainly use rubber ropes, the main diameters are 11.0mm and 11.5. Among them, the diamond wire saw of 11.5mm has a longer life, and the diamond wire saw of 11.0mm beaded diameter is more sharp.

Diamond wire saw tool used in jade and gem processing industry

Jade, agate, and gems are very precious. In the process of cutting stone, if the thickness of the cutting tool is large, it will cause great waste of jade. In order to maximize the integrity of the raw materials, people use electroplating on the steel wire rope. Or it can be processed into a special diamond wire saw (also known as diamond wire saw) by brazing. This product adopts a very thin wire rope, so it can save the principle and also has a strong sharpness.

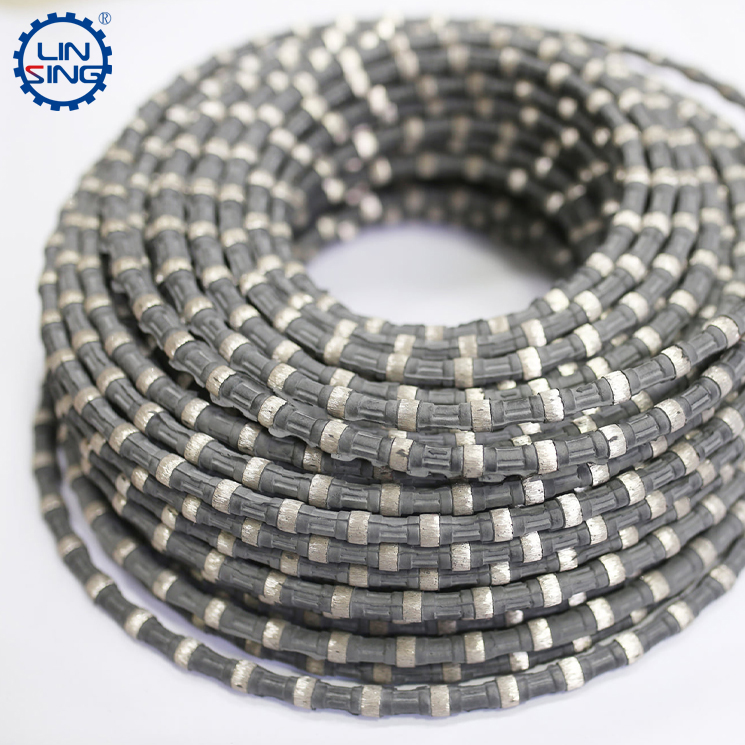

Diamond wire saw, wire saw rope

Metal cutting diamond wire saw tool

In the cutting process of some alloy products, such as the fuselage of an airplane, it is made of titanium alloy with a very high melting point. In the cutting process, extremely sharp cutting tools are required, and the high temperature resistant titanium alloy is resistant to laser and infrared rays. The cutting method is not too cold. At this time, you need to choose a special wire saw made of diamond to cut the body.

In general, the current application of diamond wire saw is still exploring the scope, but with the continuous research and development of wire saw research, the types and applications of diamond wire saw tools will increase day by day, making cutting tools faster, better, and better. The direction of stability continues to evolve.
