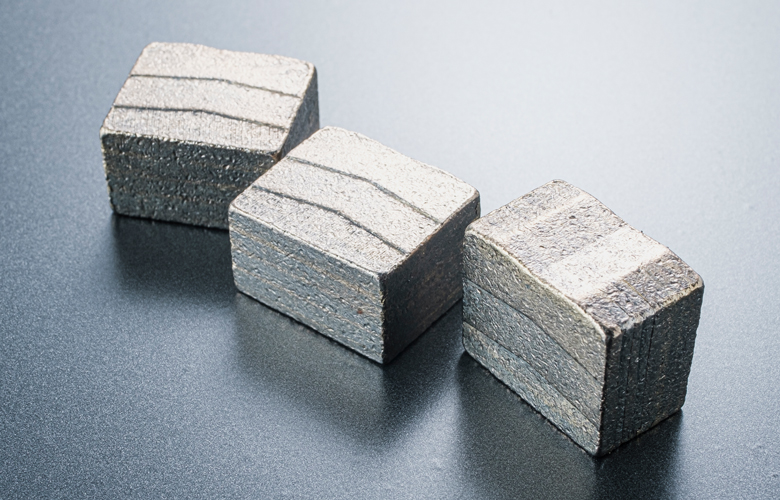

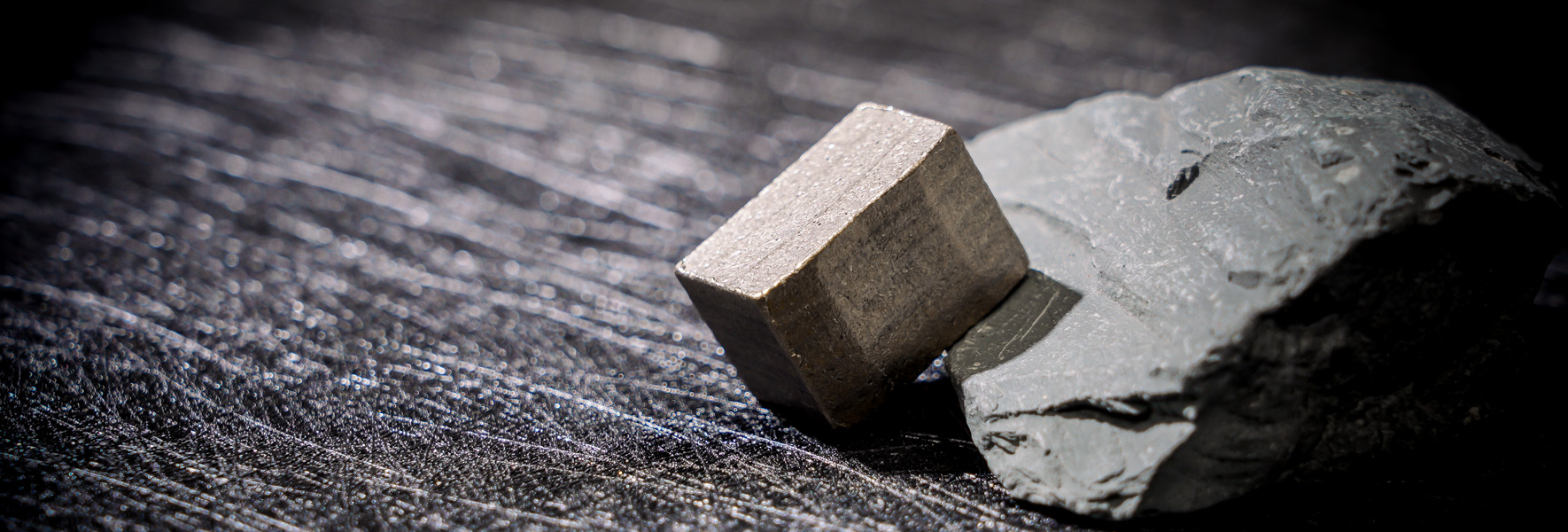

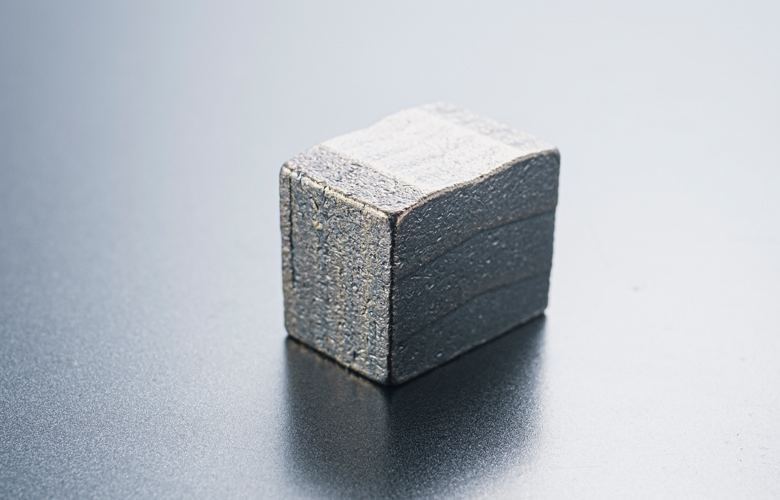

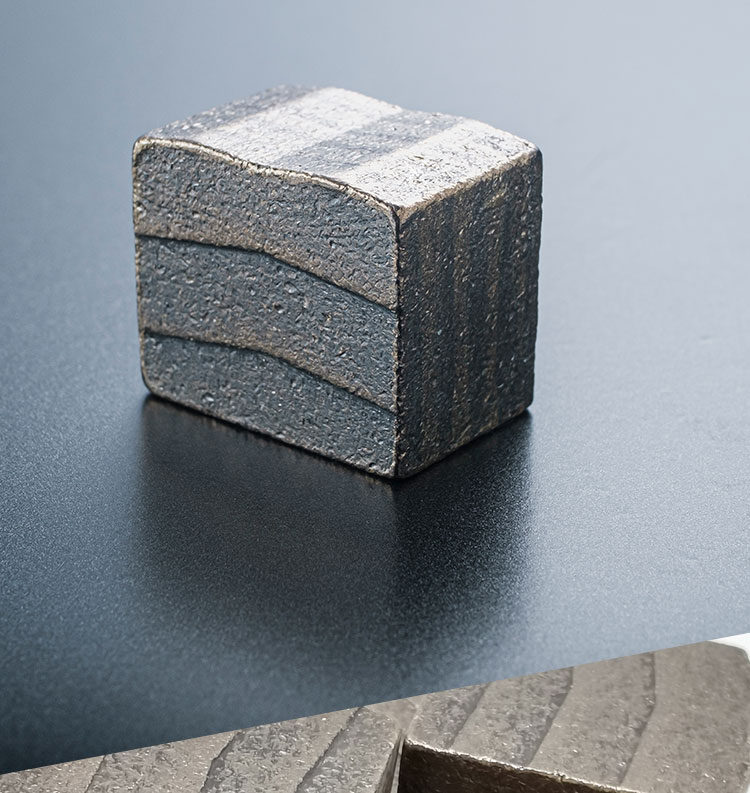

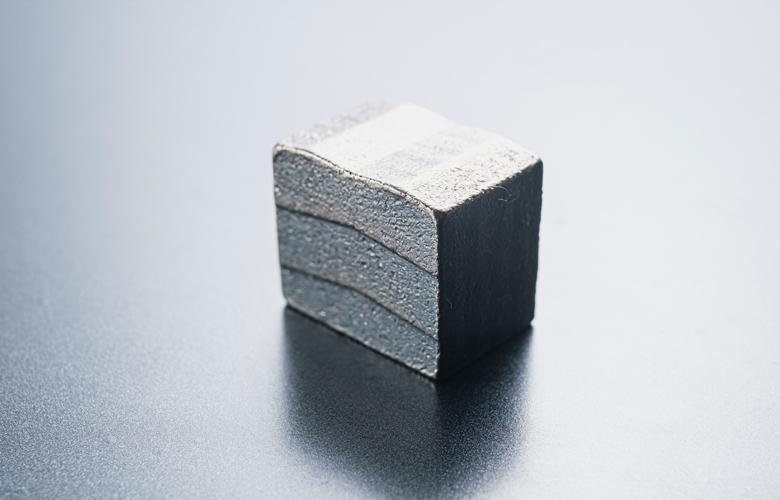

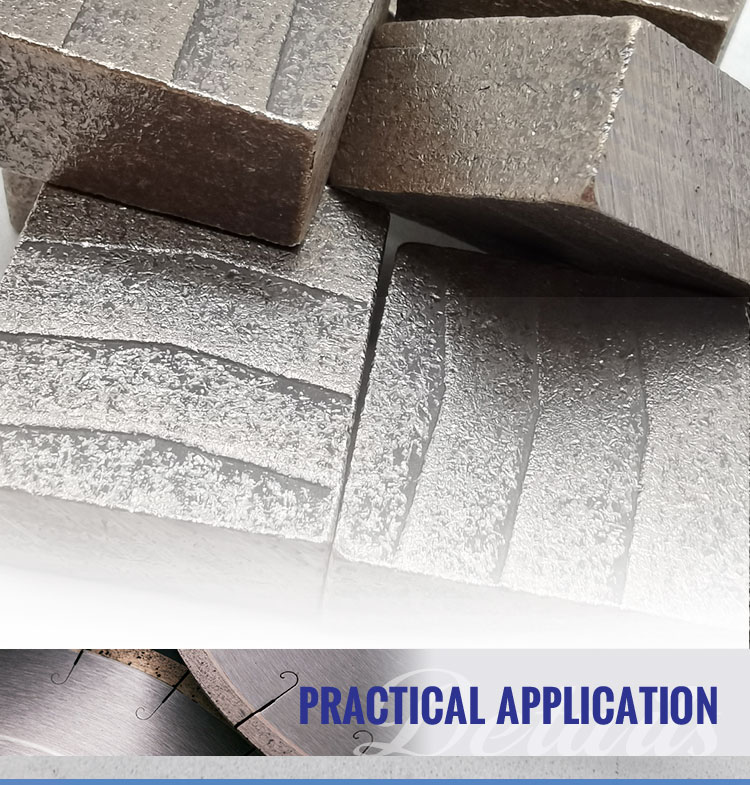

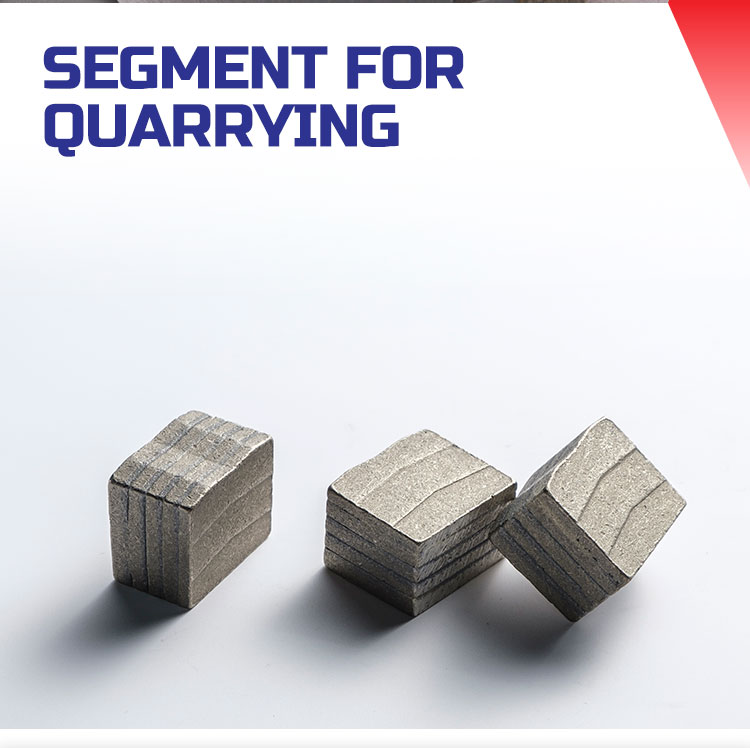

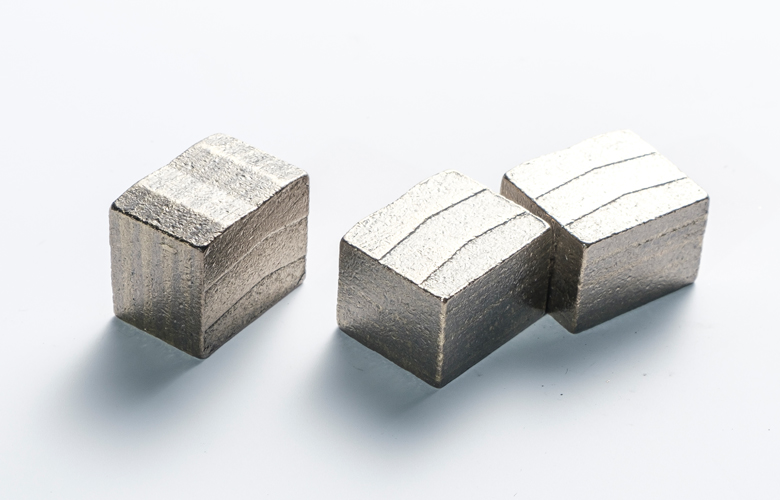

Diamond Segment For Quarrying&Mining

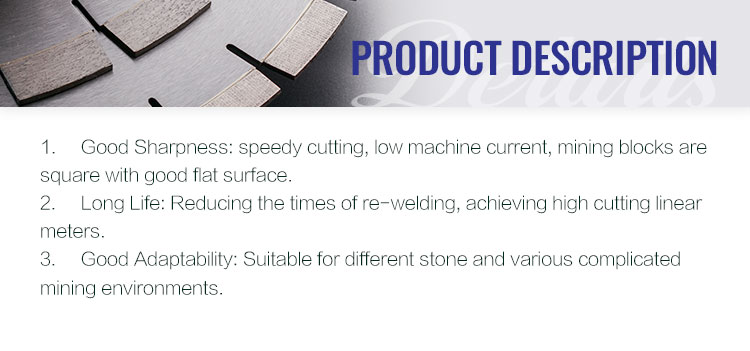

Product Features:
1. Good Sharpness: speedy cutting, low machine current, mining blocks are square with good flat surface;
2. Long Life: Reducing the times of re-welding, achieving high cutting linear meters;
3. Good Adaptability: Suitable for different stone and various complicated mining environments.
Product Specification:
Double-blades Combinations:
D2200/D3300; D2200/D3600; D2400/D3300; D2400/D3600
Blade Diameter(mm) | Steel Core Thickness(mm) | Segment Specification(mm) | Segment No.(pcs) |
Φ2200/2400 | 9.5/10 | 22x13.1/13.9x15 | 132/140 |
Φ3300/3600 | 9.5/10 | 22x12.4/11.6x15 | 160/180 |
Triple-blades Combinations:
D2400/D3600/D4200; D2600/D3800/D4600; D2600/D3800/D4800
Blade Diameter(mm) | Steel Core Thickness(mm) | Segment Specification(mm) | Segment No(pcs) |
Φ2400/2600 | 12 | 22x15.6/16.4x15 | 142 |
Φ2400/2600 | 12 | 24x15.6/16.4x20 | 142 |
Φ3600/3800 | 12 | 22x14.6/15.4x15 | 180 |
Φ3600/3800 | 12 | 24x14.6/15.4x20 | 180 |
Φ4200/4600/4800 | 12 | 22x13.6/14.4x15 | 210 |
Φ4200/4600/4800 | 12 | 24x13.6/14.4x20 | 210 |

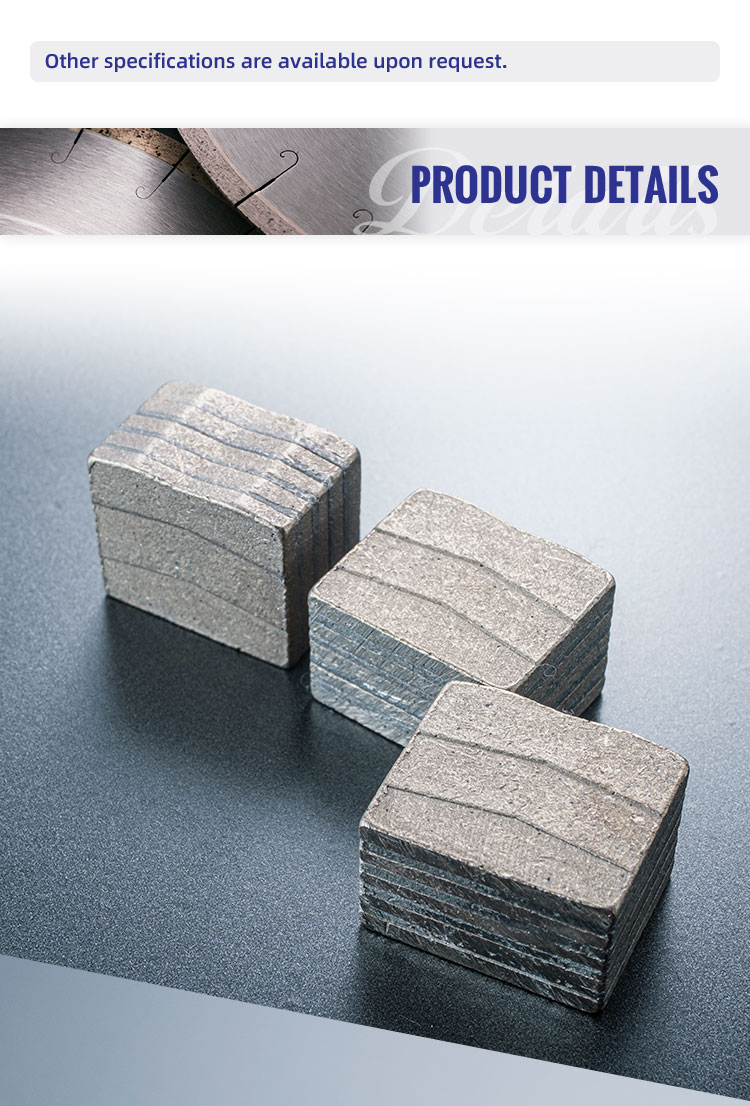

Other specifications are available upon request.
