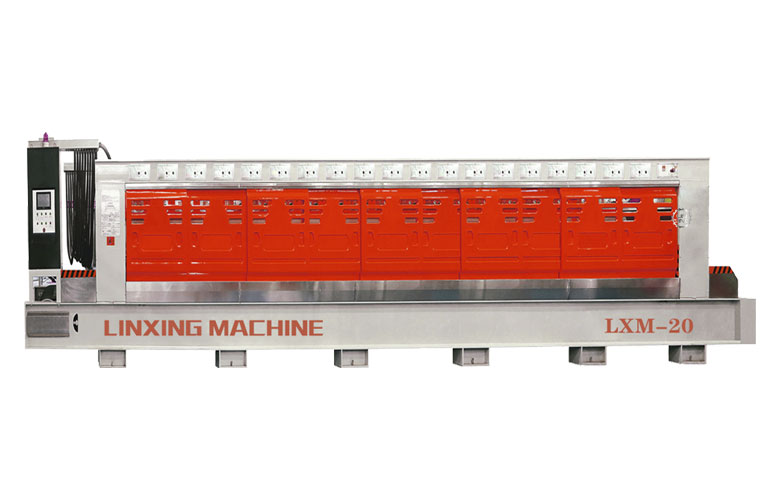

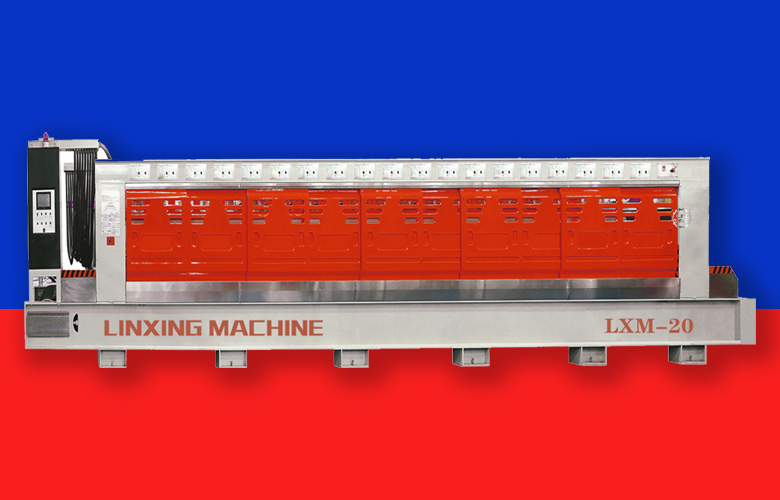

Fully-automatic Polishing Machine
Product Features:

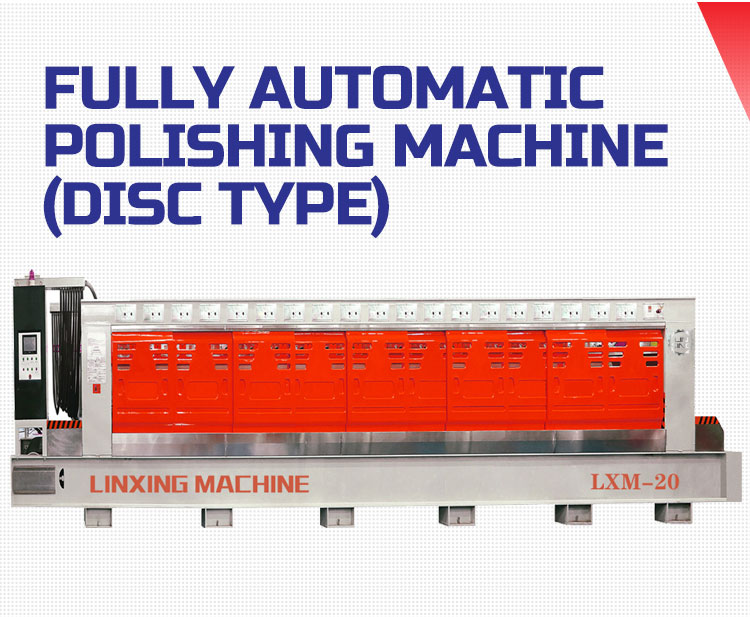

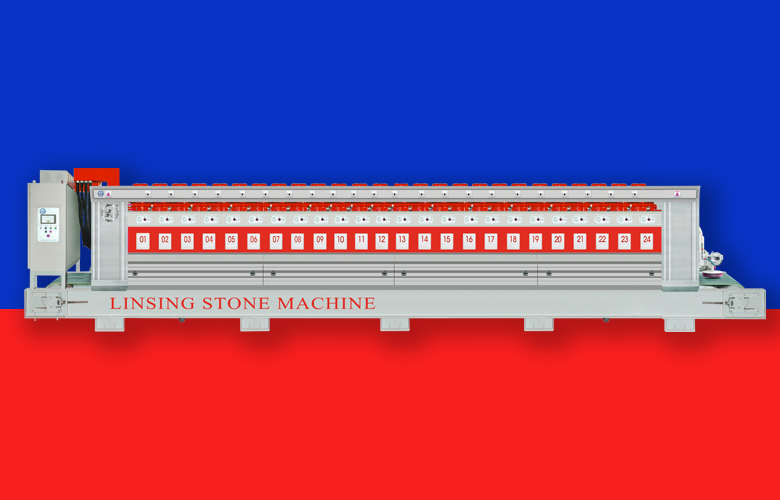

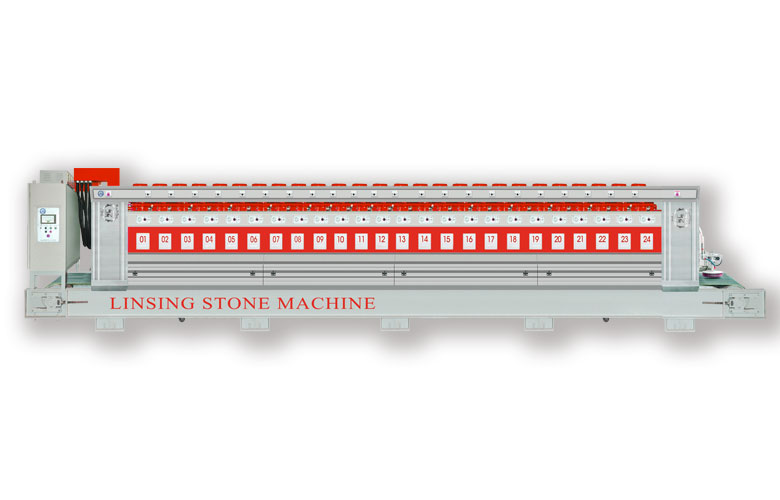

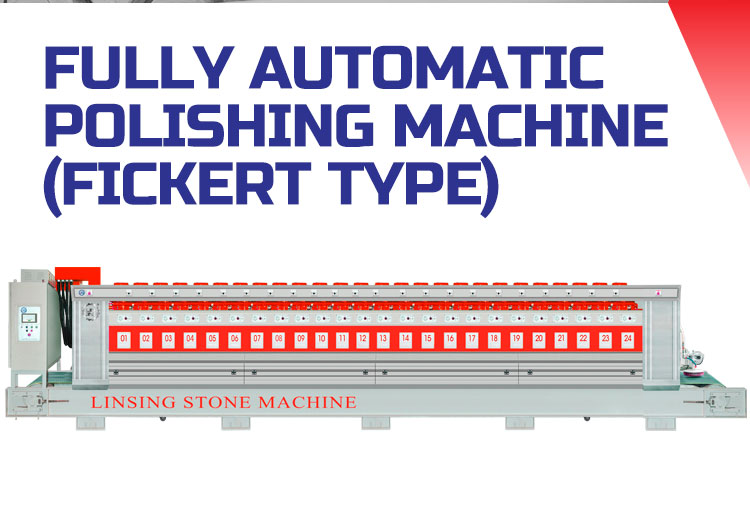

1. Provide two different machines of fickert type and disc type for customers to choose;

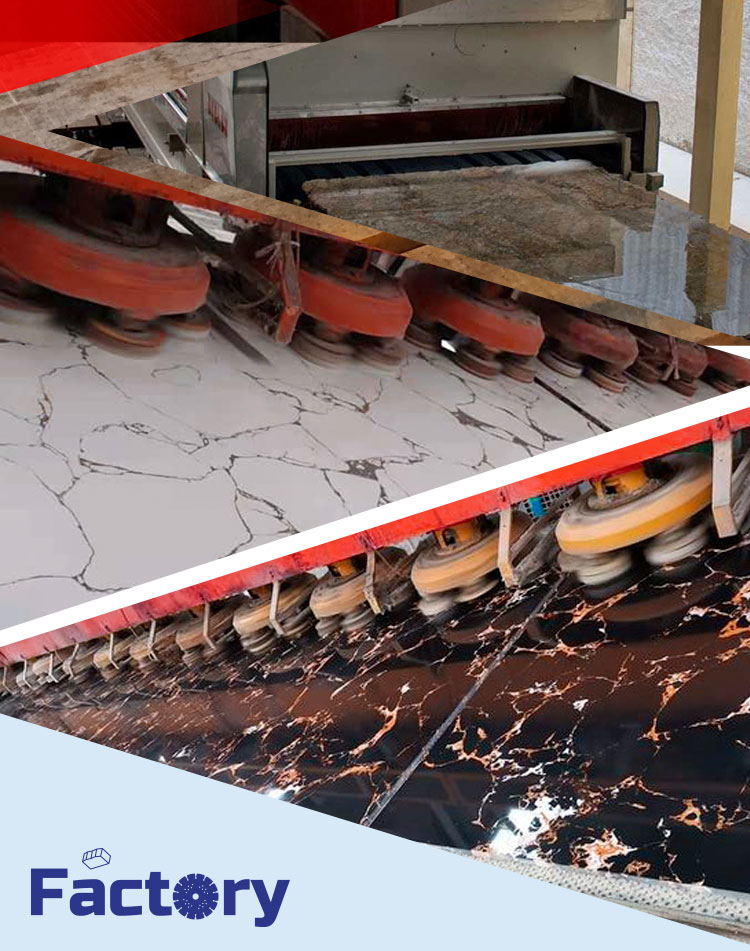

2. Applicable for polishing the surface of granite and marble slab;
3. Automatic polishing machine of newly design, which absorbs the most advanced technology of granite&marble polishing and has created several patent technologies;
4. Superior material, reasonable structure, completed processing technique, stable performance, high efficiency and energy saving;

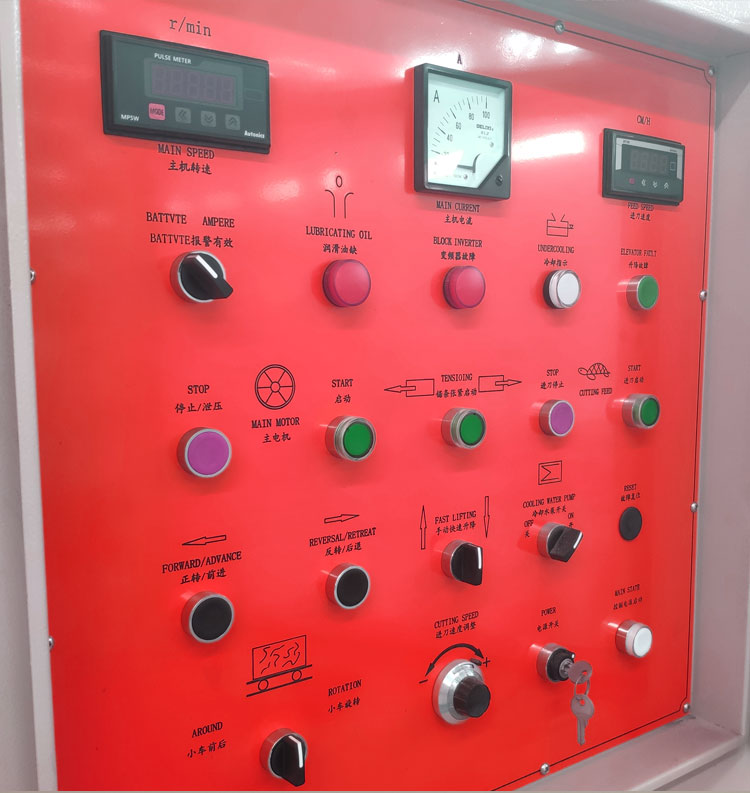

5. Electric parts are of worldwide brand, PLC control system and friendly human -machine interface via LCD to achieve computerized control;
6. Automatically detect the slab profile by laser scanning device;
7. Sensitive collision avoidance of polishing head.

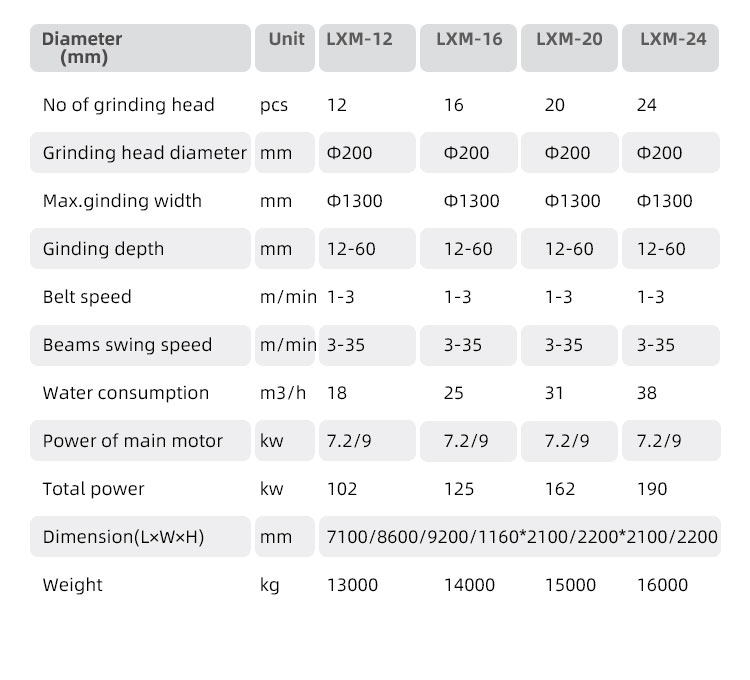

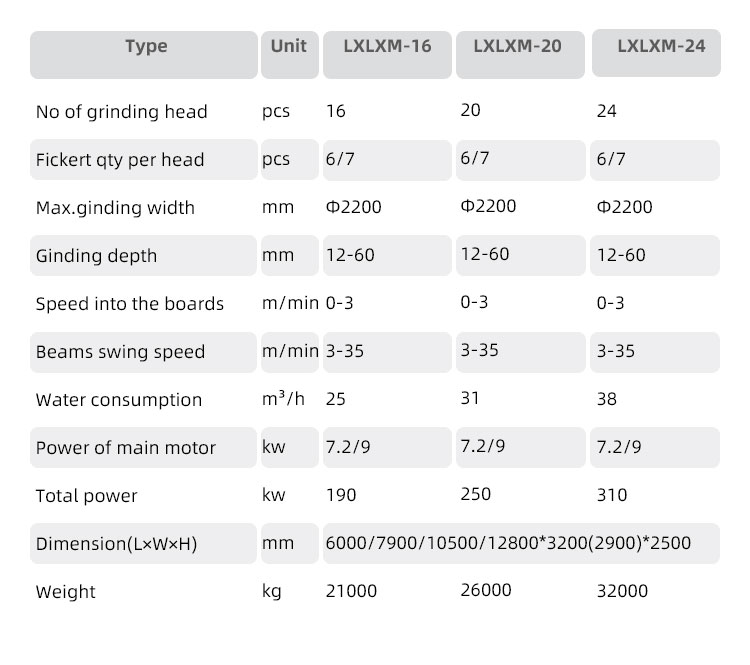

Product Specifications:
Model | LXM-10 | LXM-12 | LXM-16 | LXM-20 | LXM-24 | |
Working Width (Optional) | mm | 500~1300 | 500~1300 | 500~1300 | 500~1300 | 500~1300 |
Thickness | mm | 15~50 | 15~50 | 15~50 | 15~50 | 15~50 |
Conveyor Speed | m/min | 0~2.6 | 0~2.6 | 0~2.6 | 0~2.6 | 0~2.6 |
No.of Polishing Head | pcs | 10 | 12 | 16 | 20 | 24 |
Water Consupmtion | m3/h | 11 | 13 | 18 | 22 | 25 |
Air Consumption | m3/h | 12 | 14 | 19 | 23 | 27 |

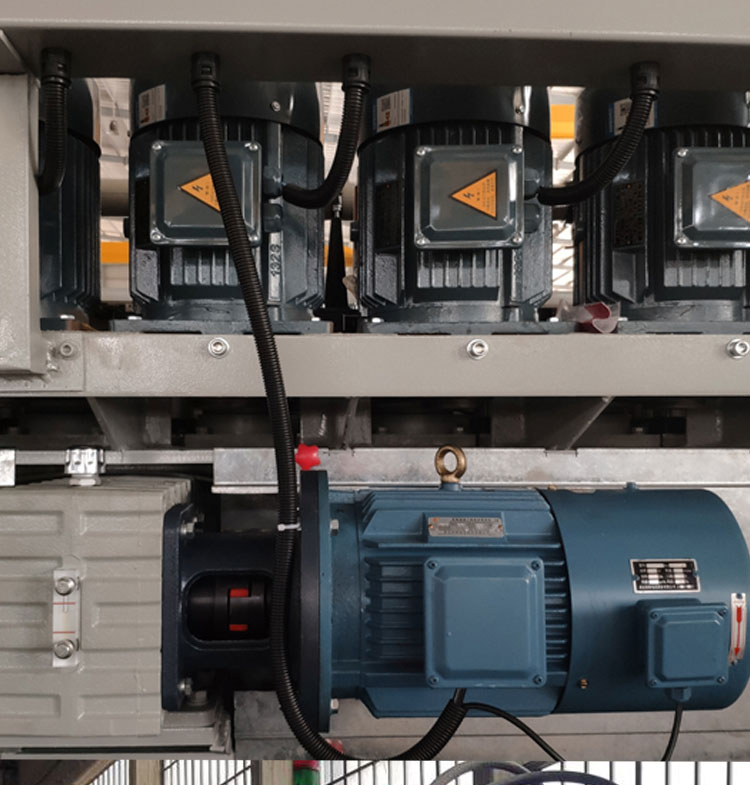

Main Motor Power | KW | 8x7.5kw+2x9kw | 9x7.5kw+3x9kw | 12x7.5kw+4x9kw | 16x7.5kw+4x9kw | 20x7.5kw+4x9kw |
Total Power | KW | 88.5 | 105 | 135 | 162 | 186 |
Dimension (LxWxH) | mm | 5960x2200x2200 | 6600x2200x2200 | 7900x2200x2200 | 9200x2200x2200 | 11600x2200x2200 |
Total Weight | T | ≈12 | ≈13 | ≈16 | ≈20 | ≈20 |
Other models can be customized.
