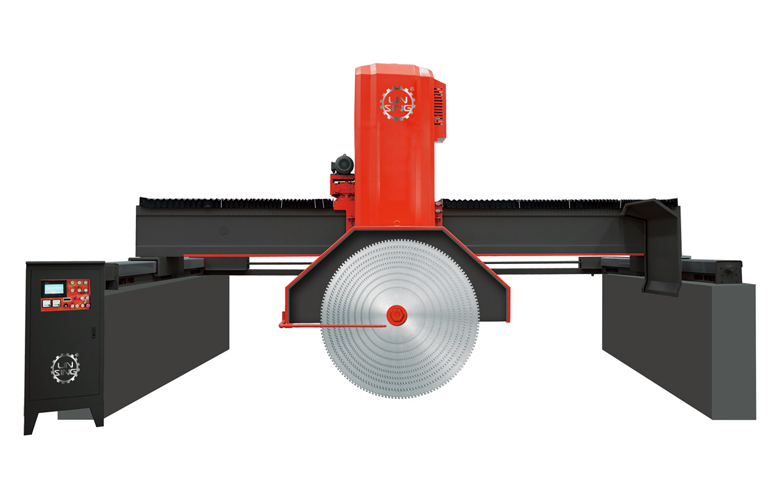

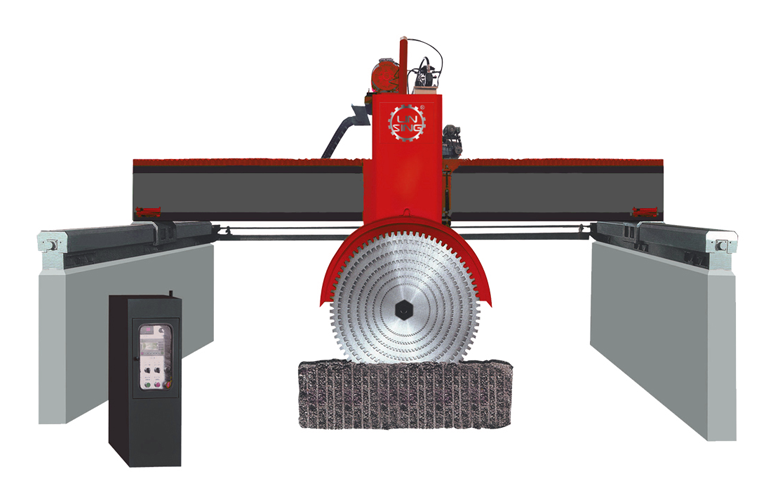

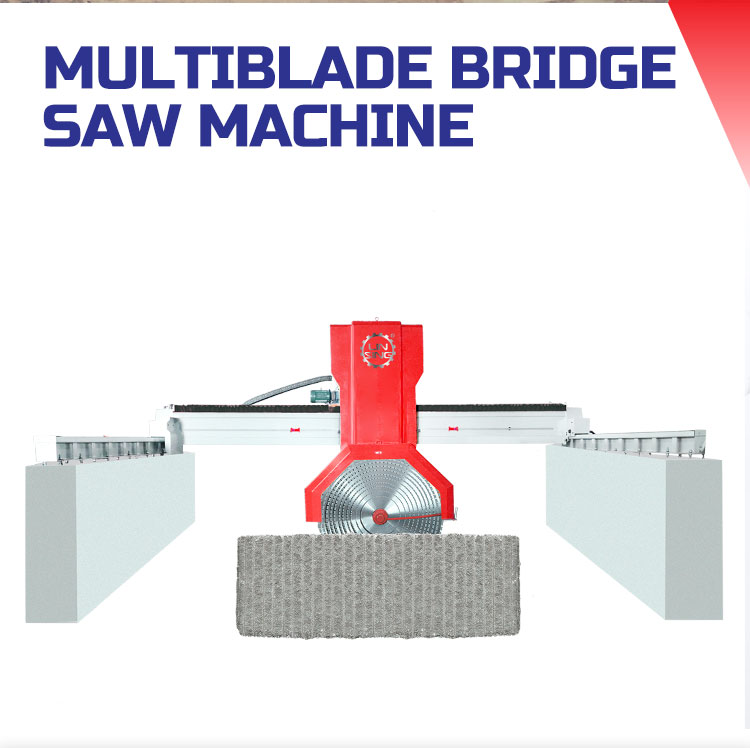

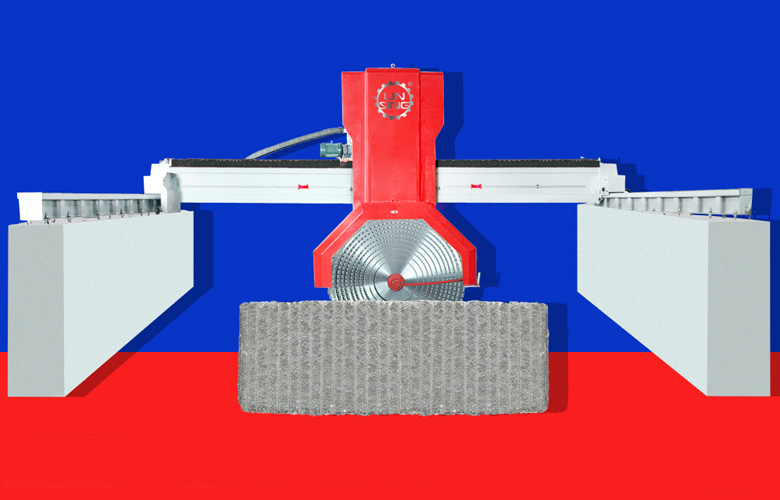

Multiblade Bridge Saw Machine For Granite Block Cutting

Multiblade bridge cutting machine adopts high-speed cutting techmology It is mainly used for cutting granite and marble panels. It is also used for processing stone products such as tombstone, kerbstone, foundation stone, slope protection stone, panel slabs etc.

Message

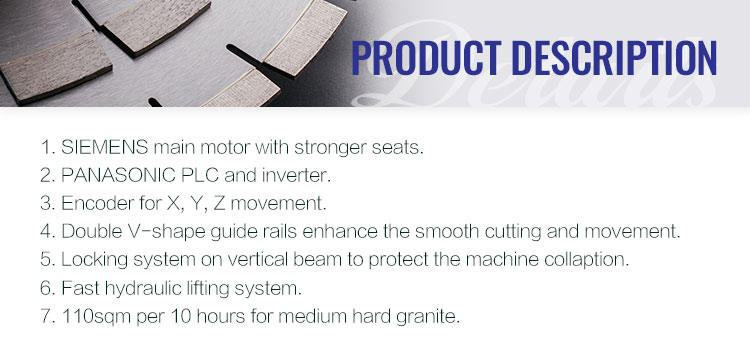

Products features:
1. Reasonable structure, low cost of use, stable works, high cutting efficiency, smooth cutting surface, high yield, no mechanical breakage, no rust and pollution;
2. It has a wide range of applications and can process granite marble and other panel blanks with the thickness of 10mm and above;

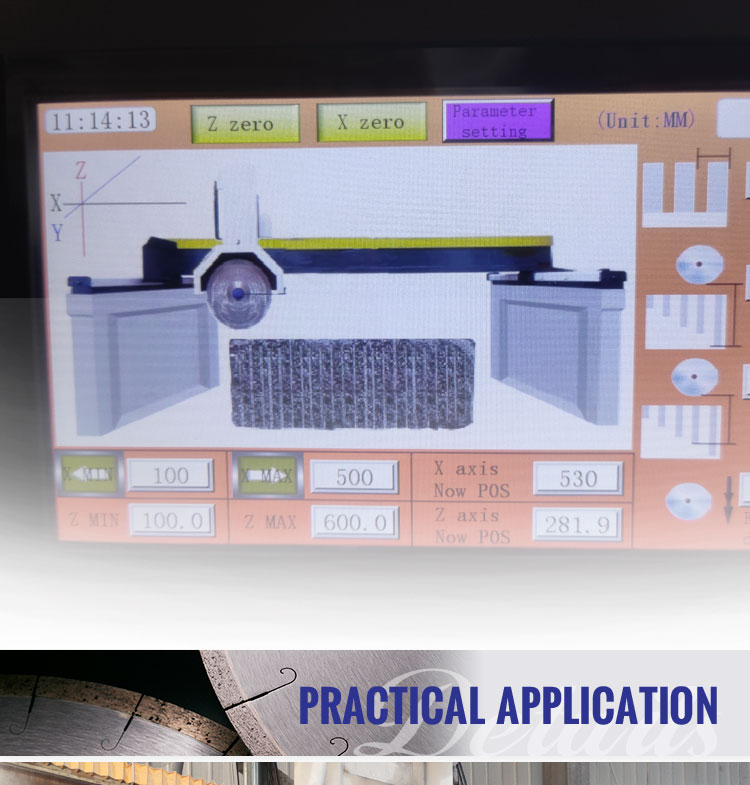

3. The operation is convenient, safety and reliable. In addition to the workbench, the control part adopts two methods: manual or semi-auto control: according to the hardness of stone, the feeding speed can be adjusted, which is safe and can improve cutting efficiency; the electric part adopts interlocking and safety devices to ensure safe and reliable operation of the equipment.

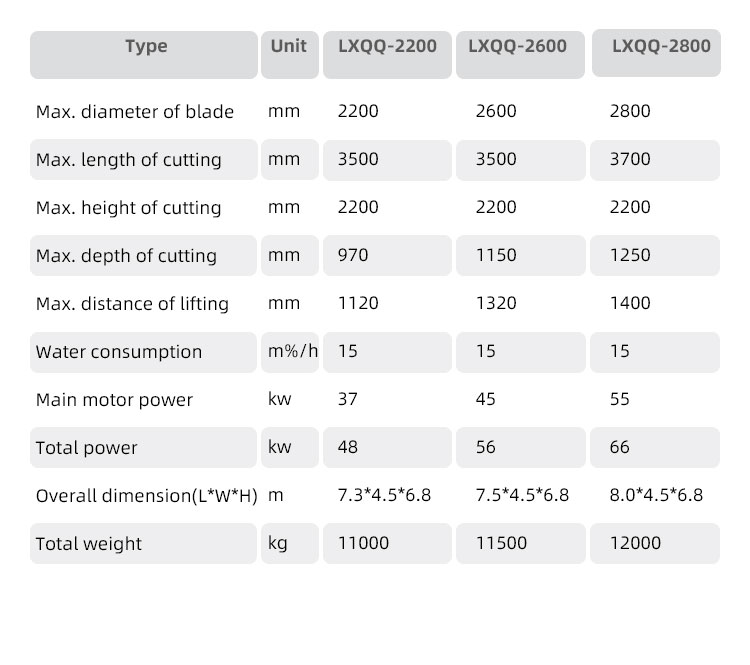

Product specifications:

Model	Unit	LXQQ-2200	LXQQ-2600	LXQQ-2800
Max. diameter of blade	mm	2200	2600	2800
Max. length of cutting	mm	3500	3500	3700
Max. height of cutting	mm	2200	2200	2200
Max. depth of cutting	mm	970	1150	1250
Max. distance of lifting	mm	1120	1320	1400
Water consumption	m%/h	15	15	15
Main motor power	kw	37	45	55
Total power	kw	48	56	66
Overall dimension(LWH)	m	7.34.56.8	7.54.56.8	8.04.56.8
Total weight	kg	11000	11500	12000
