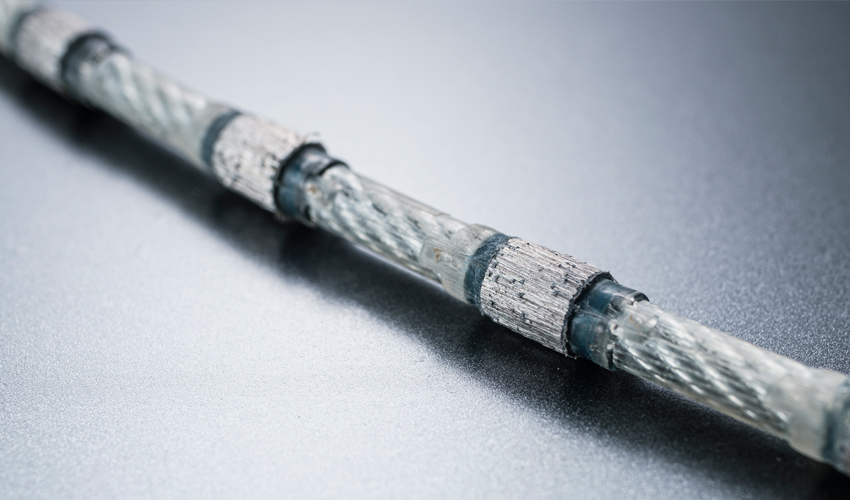

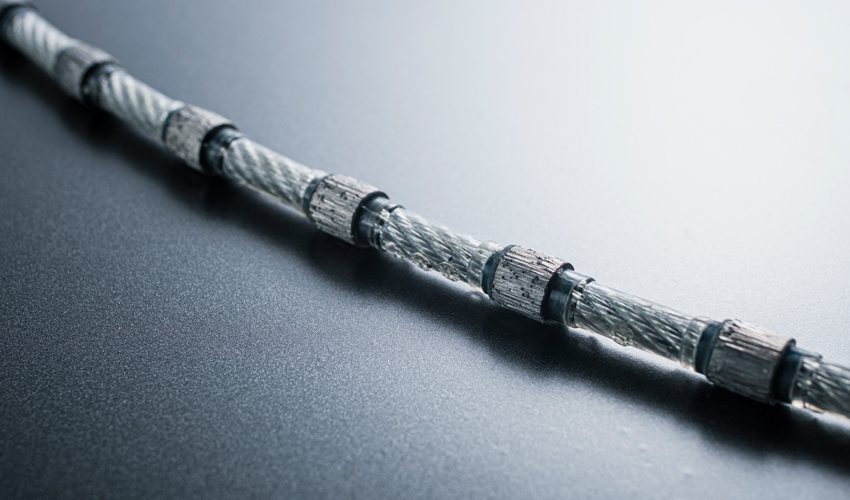

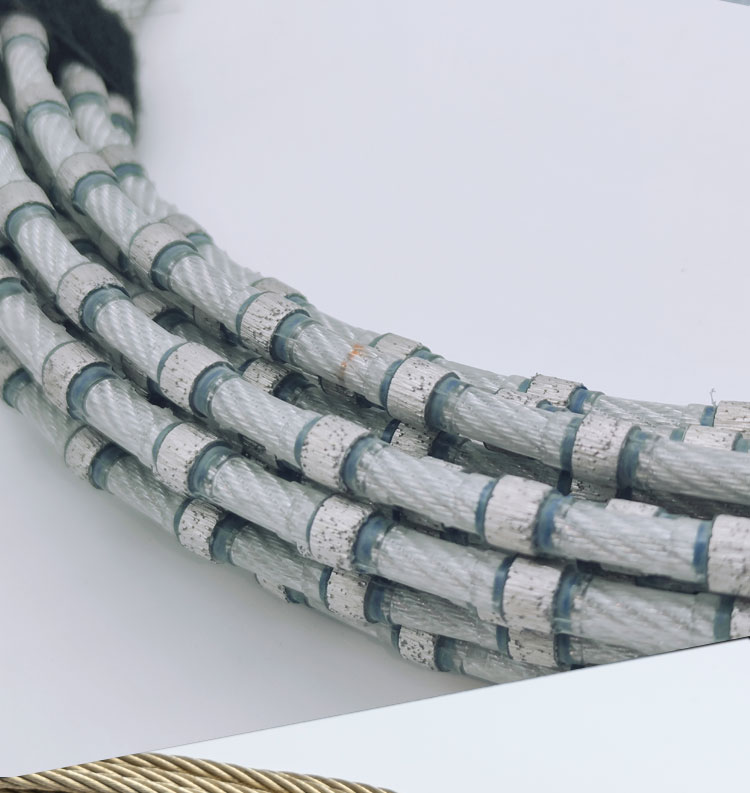

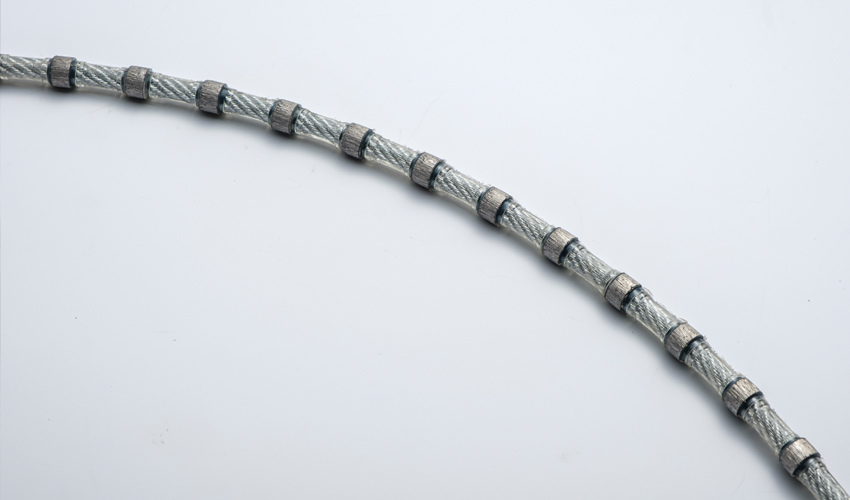

Diamond Wire Saw For Stone Profiling

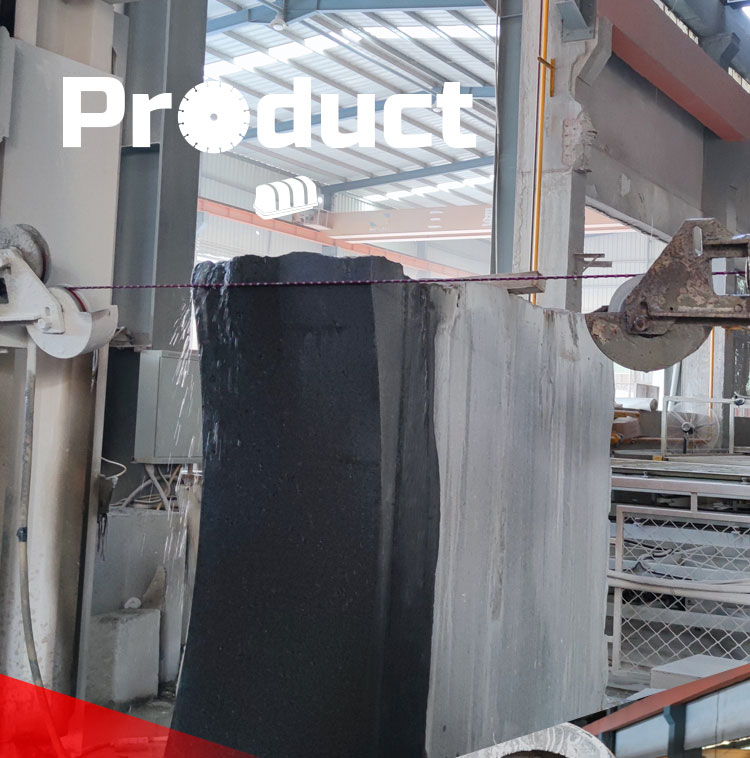

Profiling wire saws are mainly used to cut non-standard slab shapes, such as Roman columns of various shapes The special-shaped wire saw has low power consumption and low energy consumption, which can greatly improve the cutting efficiency and the accuracy of cutting special-shaped shapes is very high
Message

Product feature:
1. Good sharpness and long life, low noise and eco-friendly.
2. Stable quality control for excellent cutting performance, high cost-effective.
3. Suitable for cutting all kind stone.

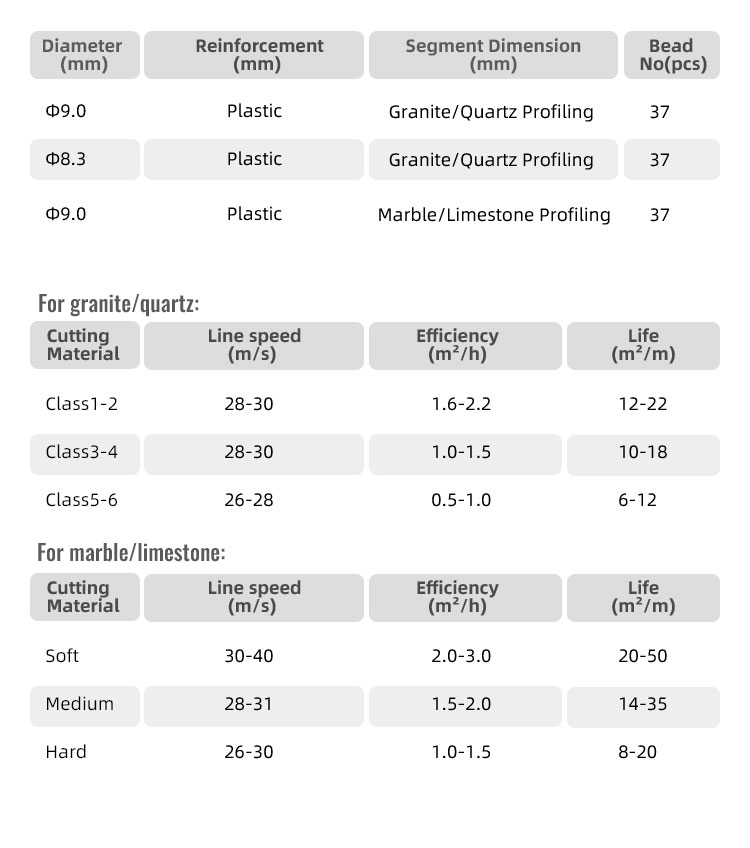

Product specification for granite/quartz:

Diameter

(mm)

Bead No.

(pcs/m)

Reinforcement

Usage

D9.0

37

Plastic

Granite/

Quartz

Profiling

D8.3

37

Plastic

Granite/

Quartz

Profiling





Cutting Material

Line   Speed(m/s)

Efficiency(m2/h)

Life(m2/m)

Class1-2

28-30

1.6-2.2

12-22

Class3-4

28-30

1.0-1.5

10-18

Class5

26-28

0.5-1.0

6-12

Product specification for marble/limestone:

Diameter

(mm)

Bead No.

(pcs/m)

Reinforcement

Usage

D9.0

37

Plastic

Marble/

Limestone

Profiling





Cutting Material

Line   Speed(m/s)

Efficiency(m2/h)

Life(m2/m)

Class1-2

30-40

2.0-3.0

20-50

Class3-4

28-31

1.5-2.0

14-35

Class5

26-30

1.0-1.5

8-20

Other specifications are available upon request
