The difference between saw blade diamond segment and other diamond segment

Publish date:2022-07-13 09:02:59 Article From:Linsing Diamond Tools Clicks:

There are many types of diamond segments, such as large blades for large segments, segments for medium-diameter saw blades, segments for cutting discs, and segments for grinding discs, agglomerates of fickert, etc. A variety of stone edging wheels and segments for cutting and grinding wheels, as well as drill bits for drilling, etc., are all different diamond segment products. So what are the specific differences between these products, especially compared with the segment of the saw blade, what is the uniqueness of the diamond segment of other tools?

More variable size

Especially in terms of length, the common saw blade segment size is nothing more than 24mm, 40mm, a very small number of 23mm, 43mm and other lengths. However, other abrasives have greater dimensional changes due to more types. For example, the diamond segment of the grinding disc, the length of the diamond segment is 20mm. The length of the segment of the CNC wheel can even reach 80mm. The agglomeration of the diamond segment with the largest size change belongs to the diamond fickert, a large-size agglomerated product with a length of about 170mm in one piece.

In diamond abrasives, the size of the segment is directly related to the size of the tool, and has a greater relationship with the machined surface.

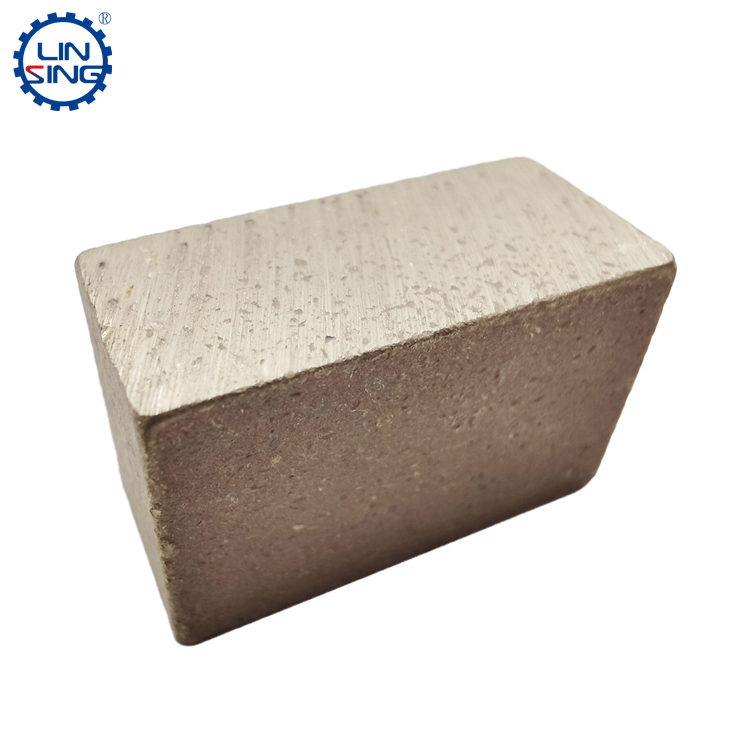

diamond segment, stone cutting tips, diamond cutters

More variable shapes

The shape of the segment used for cutting only has some arcs, and the change is small. In addition to the more changes at the top of the segment, the changes at the bottom and the middle are only changed according to the arc of the saw blade. The abrasive is convenient, especially the grinding wheel used for stone line processing and the edging wheel used for stone edging. Due to the many changes in the processing positions, the segment needs to be processed with various radians and various shapes. And with the continuous development of the stone processing industry, stone abrasives with higher and higher continuity and stability are becoming more and more popular. These factors will inevitably require more changes in the appearance and shape of the segment, so at present, the shape of the segment of diamond abrasives is becoming more diversified and complicated. The segment used by the drill bit has a greater change. In addition to showing an inwardly curved arc, various grooves and cutting edges of different designs appear on the top and surface of the segment to speed up the sharpness and rapid cutting ability.

Grit is more complicated

For the segment used for cutting, the grit size of the segment is smaller. At present, 50-60 grit segments are more common, and this part of the segment is the most stable for cutting. But for abrasives, diamond of 16#, 24#, 36#, 50# and other large-grain abrasives are used for rough grinding of stone plates. The small grit size segment, such as 100#, 200# and other finer grit sizes, can be used for fine grinding of the grinding disc.

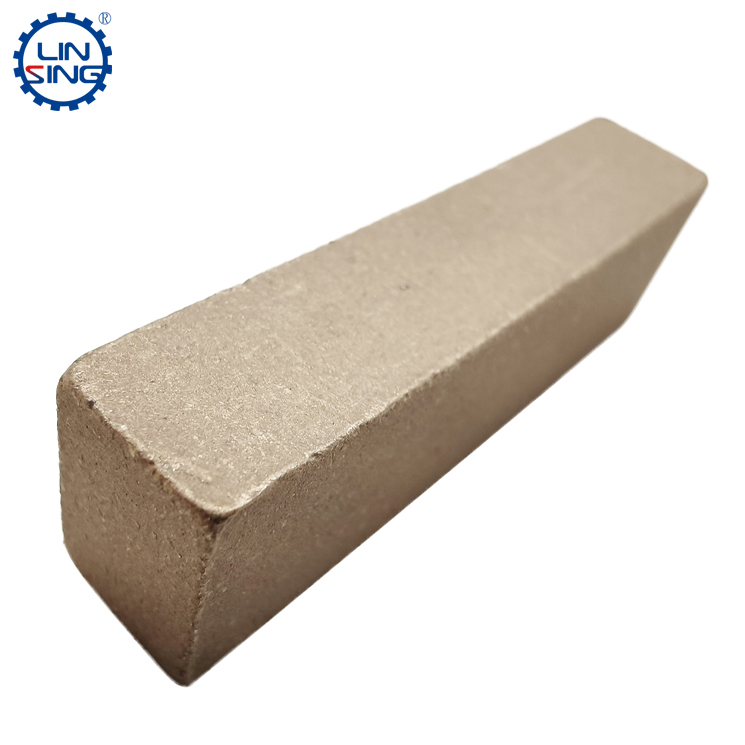

stone cutting segments, diamond segments, stone block cutting tips

The structure is simpler

The diamond segment used for stone cutting has relatively many structures, such as layer design and sandwich design. But for the grinding disc, the layer design is almost uniformly adopted, and the layer part also uses powder layer instead of iron sheet.

In general, there are many types of diamond segments. Choosing Linxing diamond segments can be customized to produce diamond segment products with different shapes and different functions to meet the different needs of customers for stone processing.
