Option for diamond blades

Publish date:2022-07-14 15:34:19 Article From:Linsing Diamond Tools Clicks:

The categories of diamond diamond segments are very diverse, especially in the case of large differences in the quality of the diamond segments of various manufacturers, it is very important to choose the right diamond segments, so how to choose the diamond segments? Mainly follow the following principles, according to such a standard to choose the diamond segment must not be wrong:

1: Corresponding to the appropriate cutting object, the cutting object corresponding to different diamond blades is not very consistent, mainly because there are many types of stone in the world, and different stones have different hardness, abrasiveness caused by different diamond blades cutting different stones, in order to get more improvement in cutting ability.

To put it simply, when cutting granite stone, it is necessary to use an iron-based diamond segment with higher abrasiveness and stronger carcass hardness, which tends to have a greater improvement in abrasiveness, and in the process of actual use, this kind of diamond segment can be matched with a diamond powder of the right particle size, and can also achieve a good cutting ability, which can be comparable to the traditional cobalt-based diamond segment in terms of sharpness and efficiency. When cutting marble, you need to use a larger particle of diamond, in terms of carcass, the use of softer carcass can help the surface of the diamond segment to appear tailing, increase the grinding ability of the diamond segment. For other stones, different kinds of stone require different cutting capacity of the head for cutting.

diamond segments, stone cutting segments

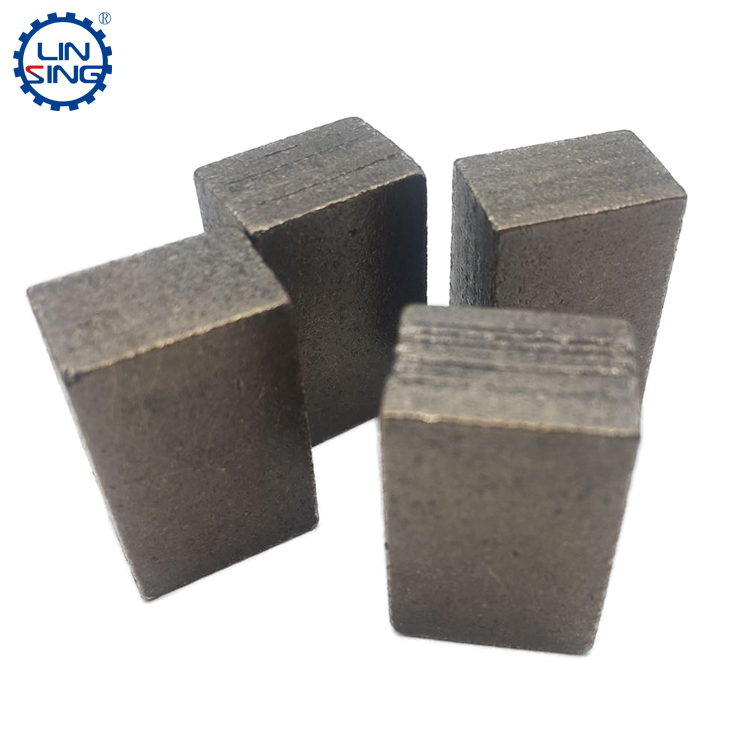

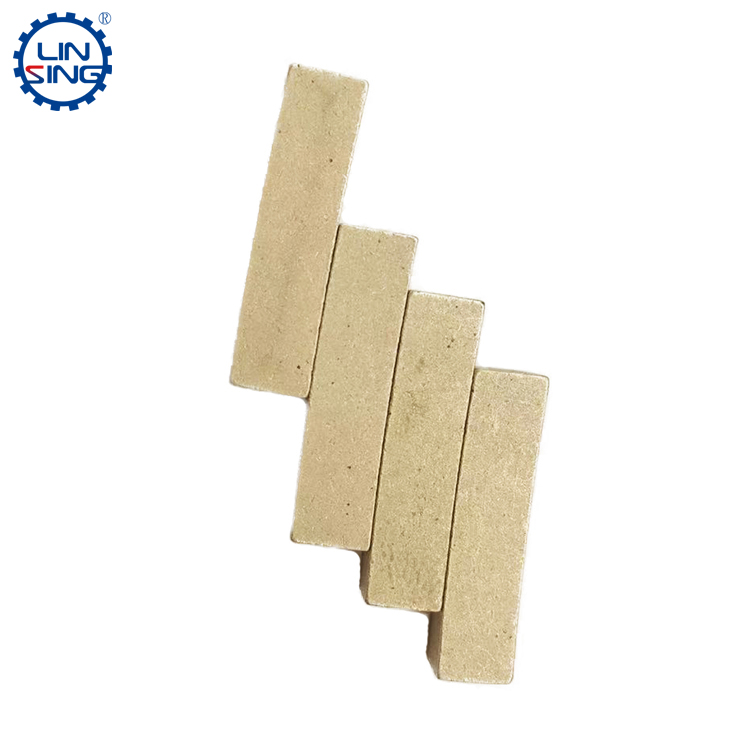

But most people for cutting granite and marble diamond diamond segment does not know much, in fact, these two kinds of diamond segment color can be seen very clearly, the color of grayish white most of the granite diamond segment, and the color of the yellow-brown, mostly copper-based diamond segment, that is, marble diamond segment, there is a color of silver gray, this kind of diamond segment is mostly cobalt-based diamond segment, that is, marble diamond segment.

2: Corresponding to the size of the saw blade, the diamond blade must be taken into account in the selection process of the diameter of the saw blade (for a single blade saw) or the thickness of the saw blade matrix (for multi-blade group saws), of which the single blade, the larger the size of the circular saw blade, the wider the thickness of the diamond segment. The length of the diamond segment is mostly 24mm, and the appropriate shortening of the length of the diamond segment can increase the sharpness of the diamond segment, but shorten the life.

In addition to the length and width, the height of the knife bit is also a very important parameter, if the height is too high, the amplitude of the entire saw blade diameter jump will increase, many times, some manufacturers in order to save welding costs, will use 30mm high or even higher bit height, in the actual cutting process, due to the emergence of saw blade diameter jumping situation, stone cutting quality will be reduced.

diamond segments, linxing diamond tools, diamond mining segments

3: Diamond concentration is a factor that people must consider in the selection of diamond segments, as we all know, if the diamond concentration is low, the sharpness of the diamond segment may be acceptable, but its cutting life must be reduced, and the reduction of life will increase the welding cost, so the selection of a diamond segment with good life and sharpness parameters is the basis for the selection.

In fact, the diamond concentration can reflect these very well, in the optional process, if the diamond segment in the diamond powder more, that is, more places to drag the tail, then the sharper the diamond segment, the life will be guaranteed.

4: The diamond segment is an unstable product, this non-standard product has strong requirements for the production process control ability, the general small factory does not have a quality control system, so the product stability is extremely poor, so the selection of a large factory of diamond segment can make the product quality more stable at the same time, but also can continue to improve product quality.
