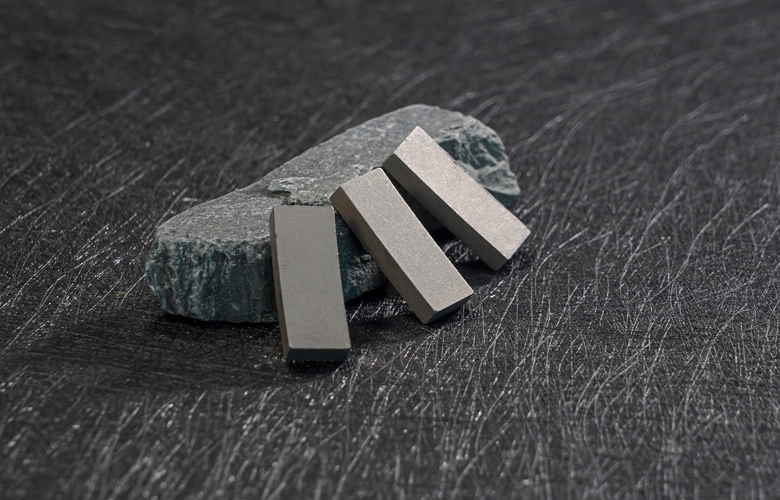

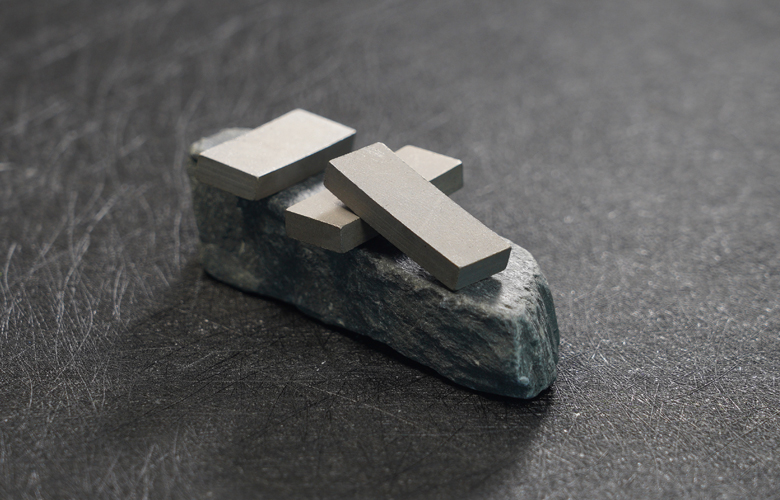

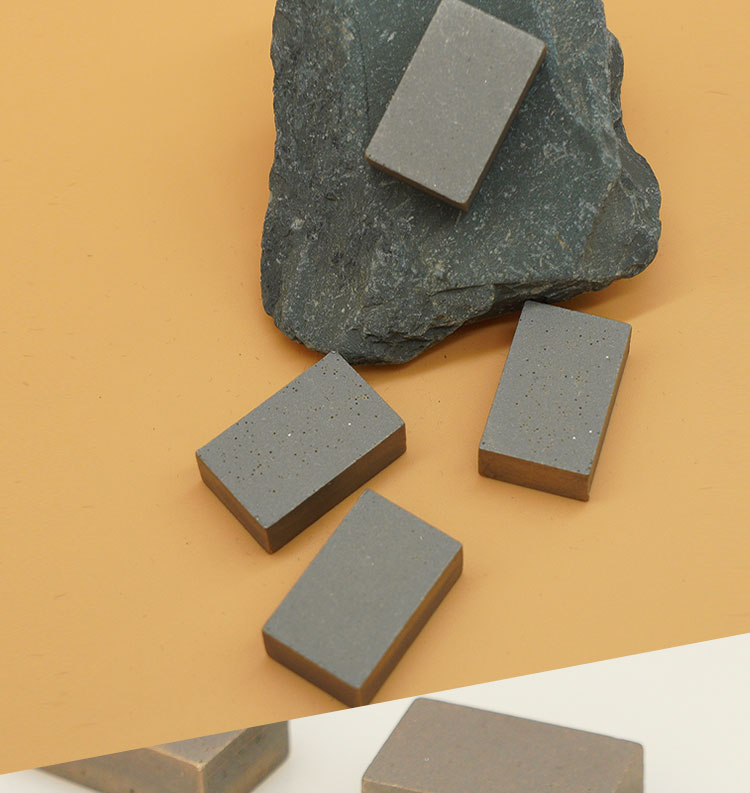

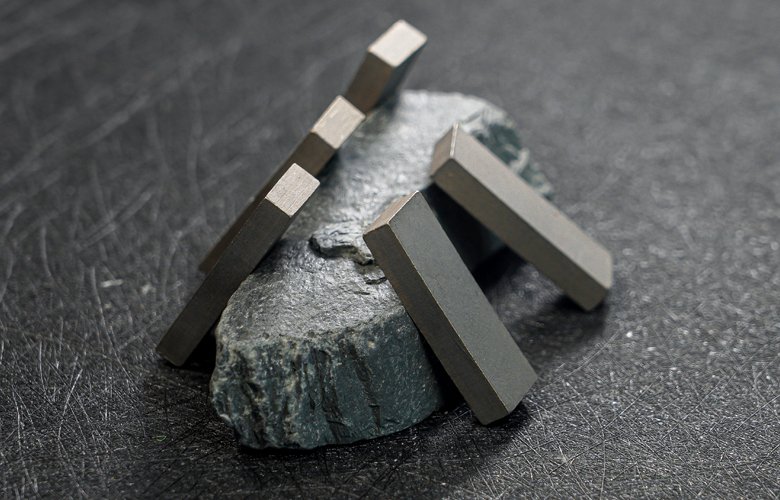

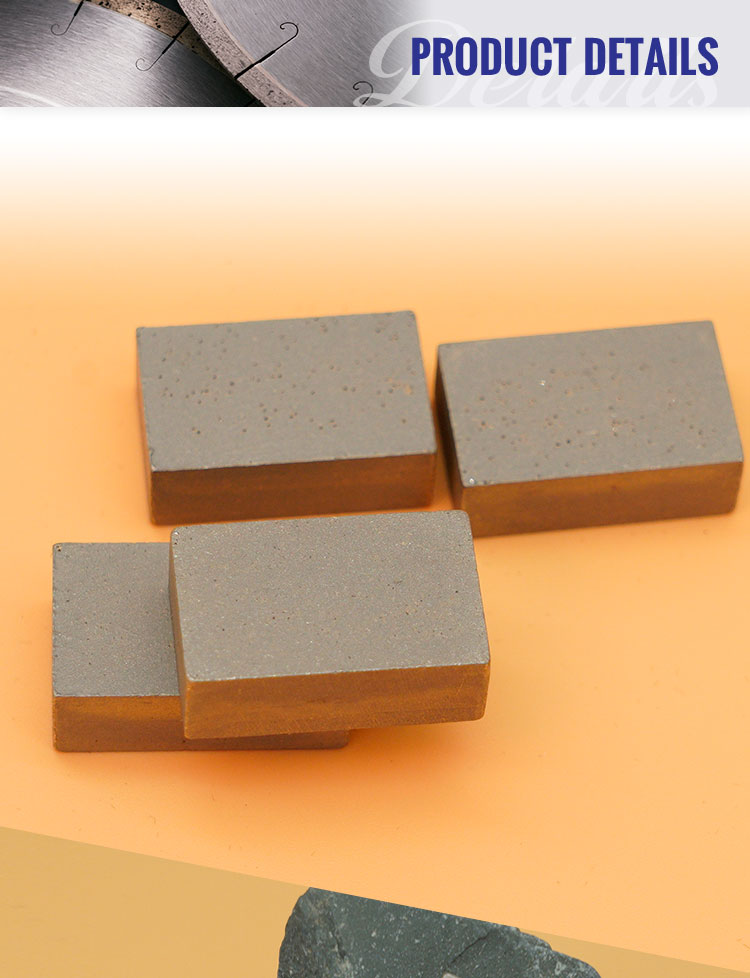

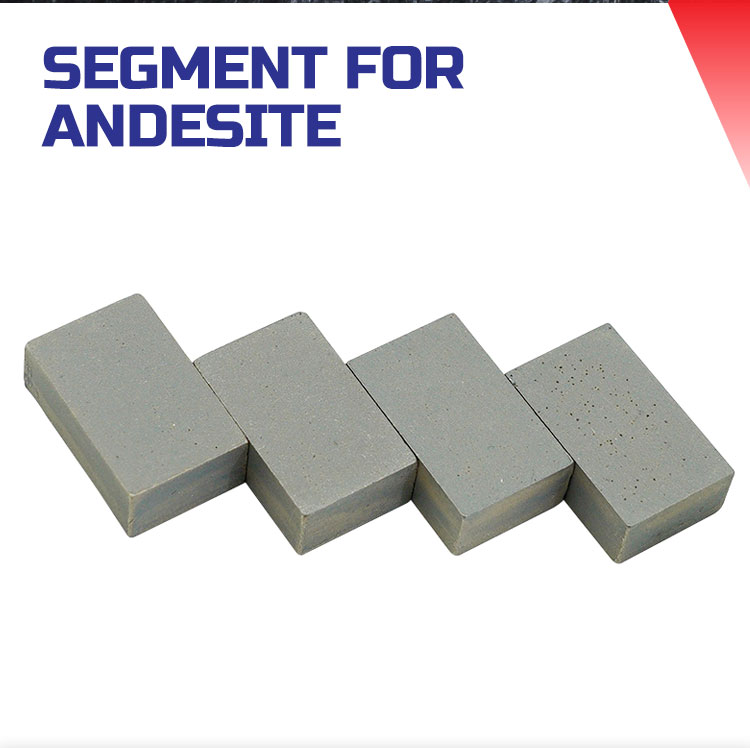

Andesite Cutting Segment
Through continuous debugging, the andesite cutting segment achieve high speed and long life cutting effect to meet the needs of the market.
Message
Product Features:
1. Cutting in high speed without chipping;
2. Long life span and stable cutting performance;
3. Smooth cutting, flat surface and even size cutting result;
4. Good segment shape easy for diamond opening;
5. Strict product quality inspection processes;
6. High cost-effective.
Product Specification:
| Diameter (mm) | Steel Core (mm) | Segment Size | Segment Number |
| Φ300 | 2.2 | 40×3.2×8(10) | 22 |
| Φ350 | 2.4 | 40×3.4×8(10) | 25 |
| Φ400 | 2.6 | 40×3.6×8(10) | 29 |
| Φ450 | 2.8/3.0 | 40×4.0×8(10) | 32 |
| Φ500 | 3.0/3.2 | 40×4.2×8(10) | 36 |
| Φ600 | 3.6/3.8 | 40×4.8×8(10) | 42 |
| Φ700 | 4 | 40×5.2×8(10) | 42 |
| Φ800 | 4.5 | 40×6.0×8(10) | 46/57 |
| Φ900 | 5 | 24×7.5×8(10,12) | 64 |
| Φ1000 | 5 | 24×7.5×8(10,12) | 70 |
| Φ1200 | 5.5 | 24×8.5×8(10,12) | 80 |
| Φ1300 | 6 | 24×8.5×8(10,12) | 88 |
| Φ1400 | 6.5 | 24×9.0×8(10,12) | 92 |
| Φ1600 | 7.2 | 24×9.5×8(10,12) | 108 |
| Φ1800 | 7.5 | 24×10.0×8(10,12) | 120 |
| Φ2000 | 8 | 24×10.5×8(10,12) | 128 |
| Φ2200 | 9 | 24×11.0×8(10,12) | 132 |
| Φ2500 | 9 | 24×11.0×8(10,12) | 140 |
| Φ3000 | 9.5 | 24×12.0×8(10,12) | 160 |
Other specifications are available upon request.
