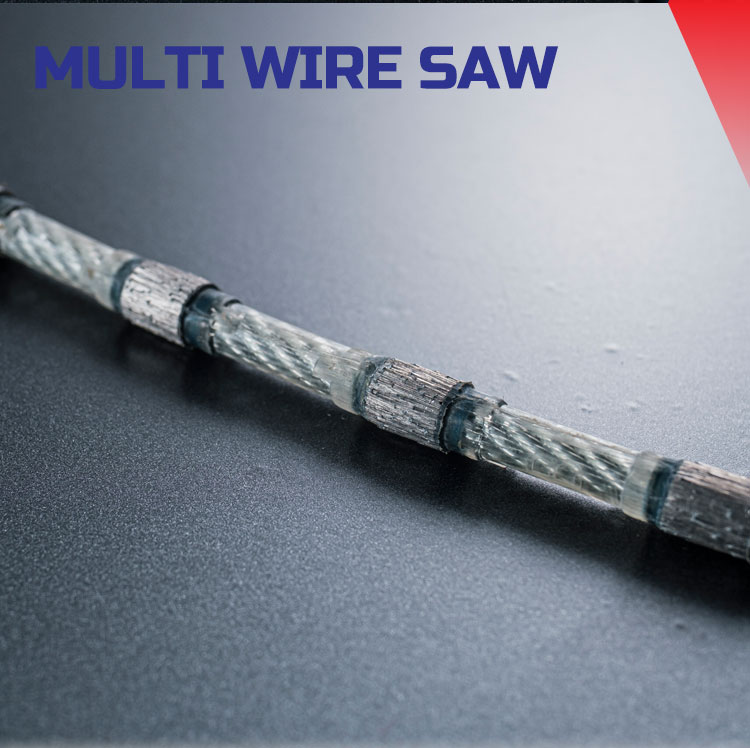

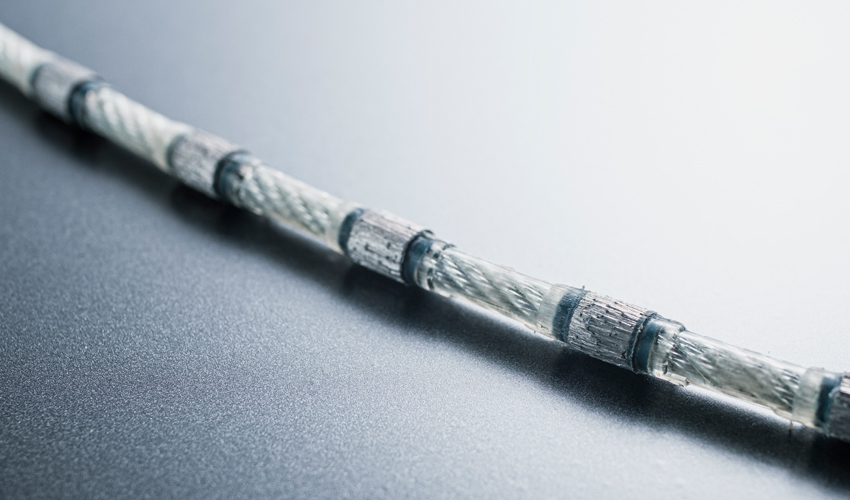

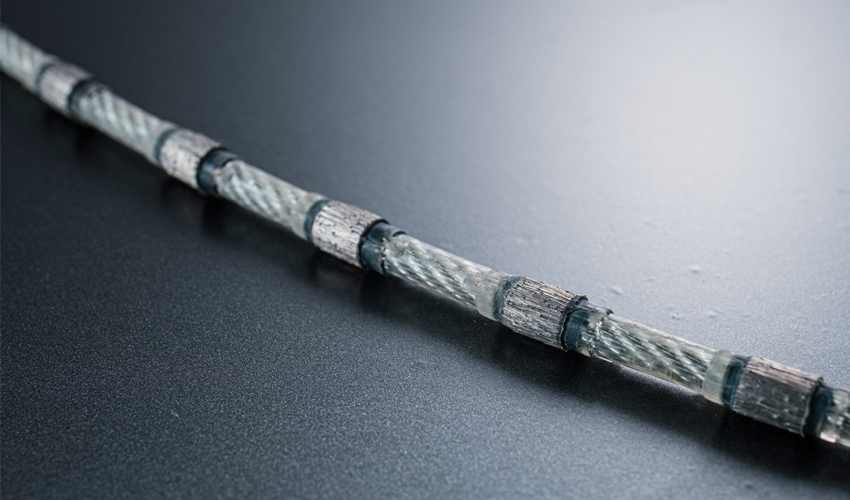

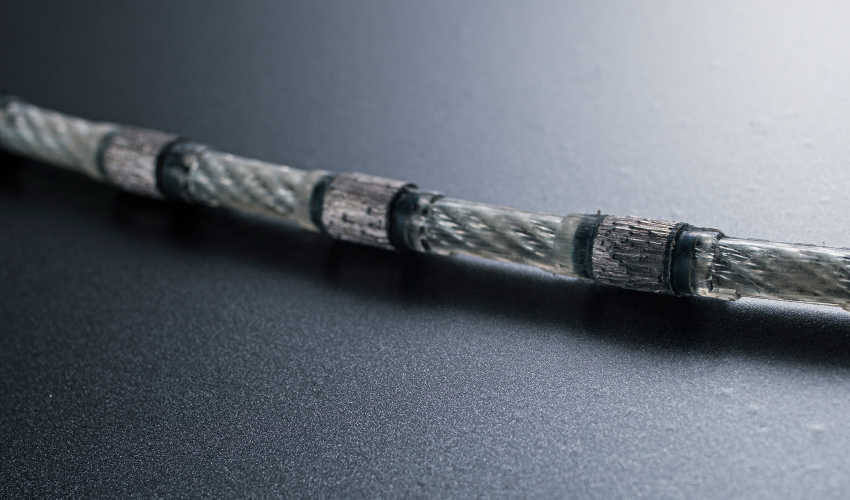

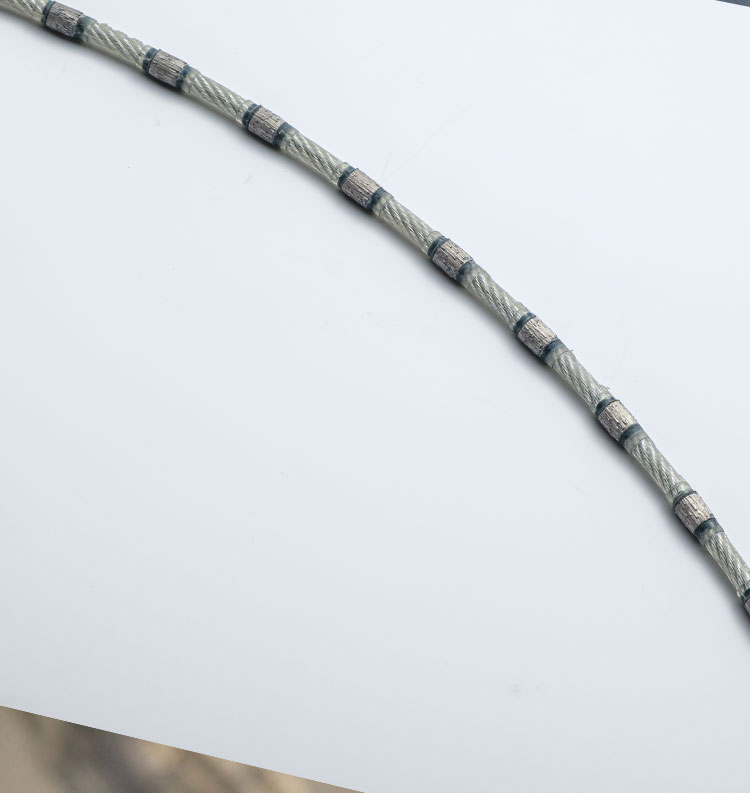

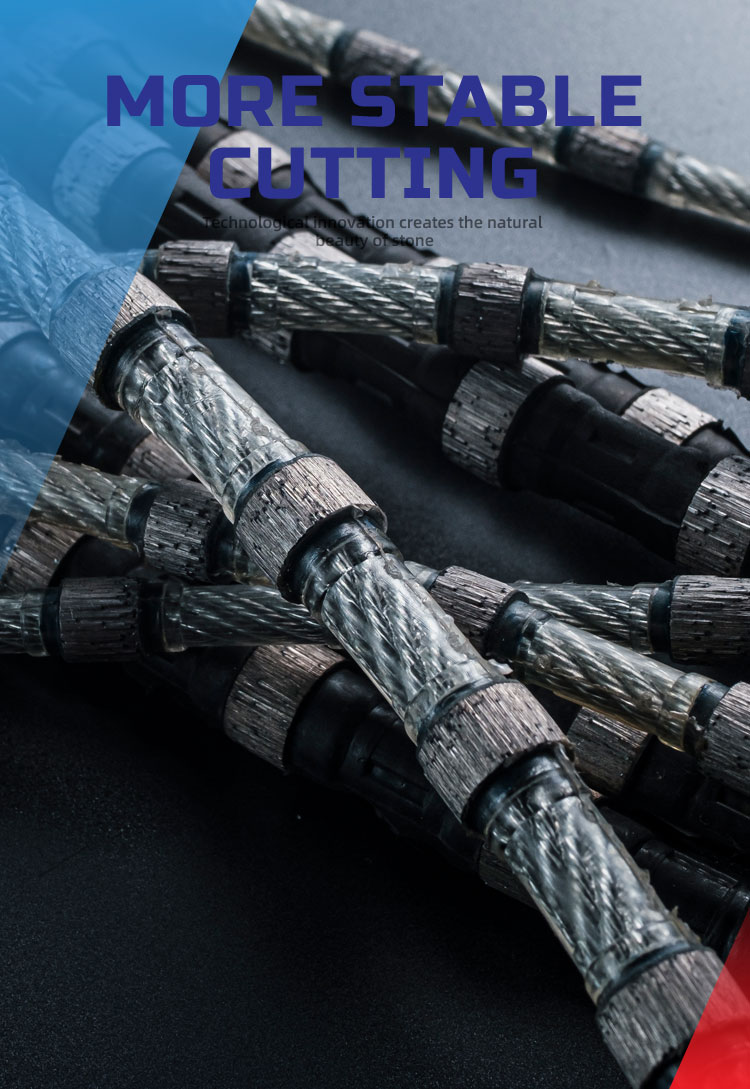

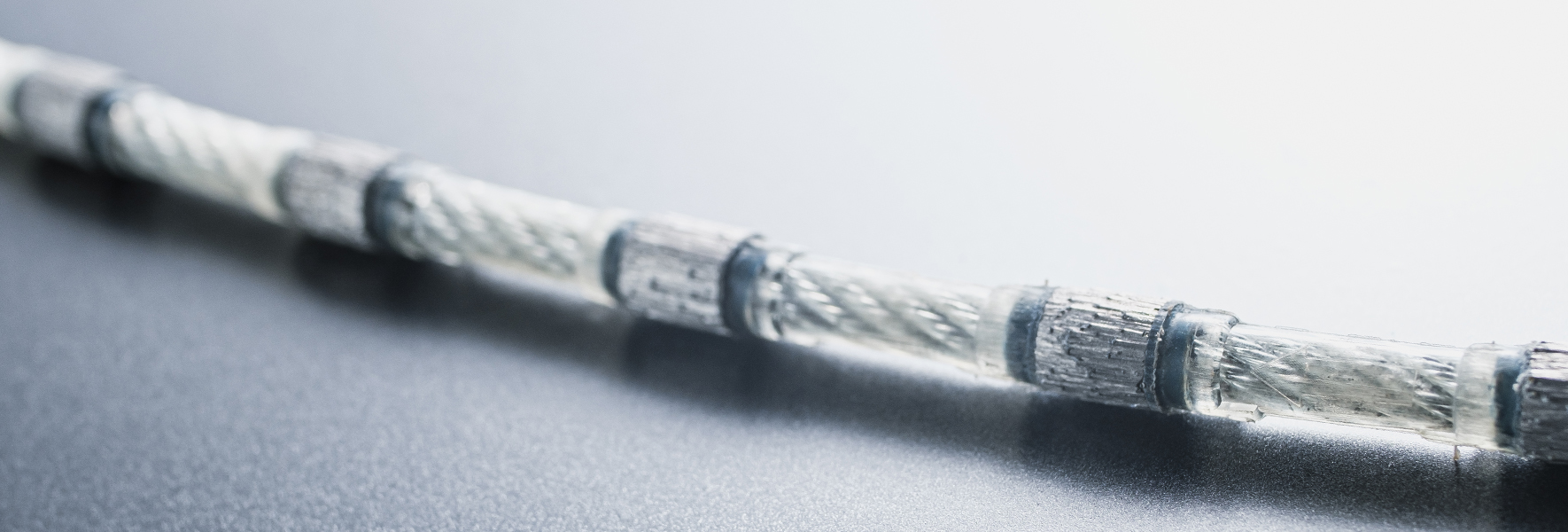

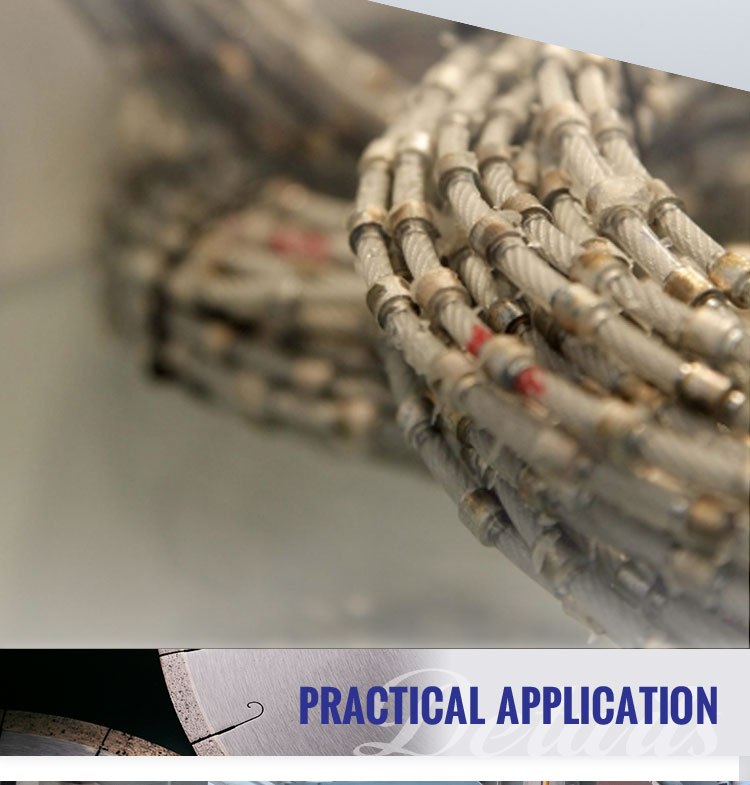

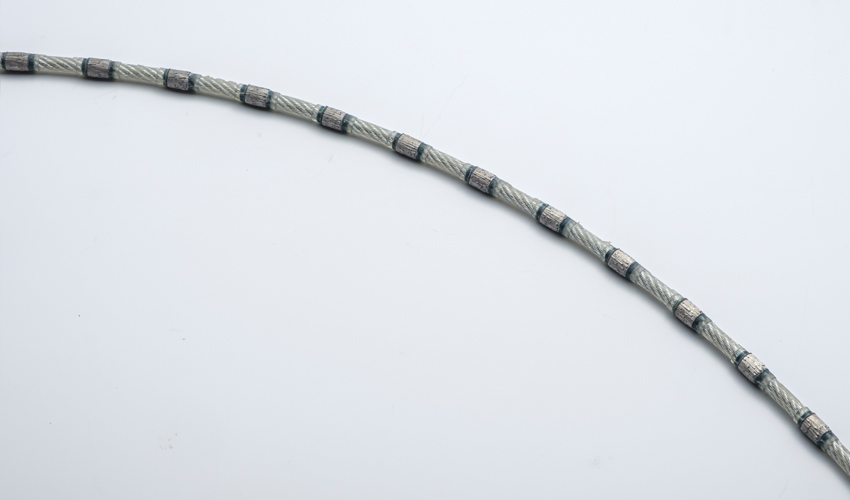

Diamond Multi Wire Saw For Block

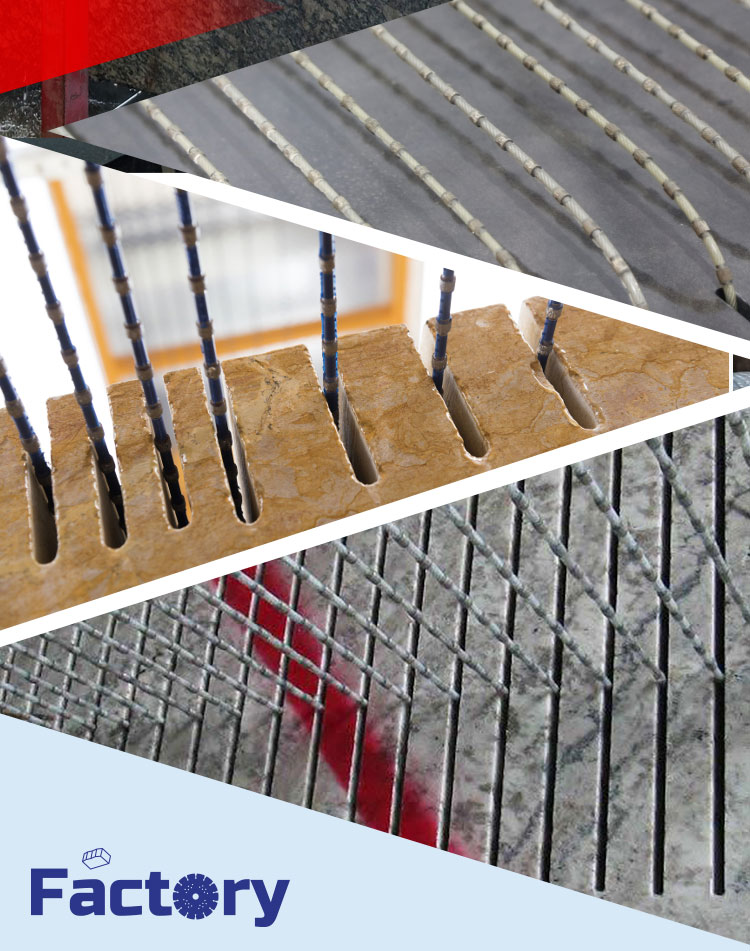

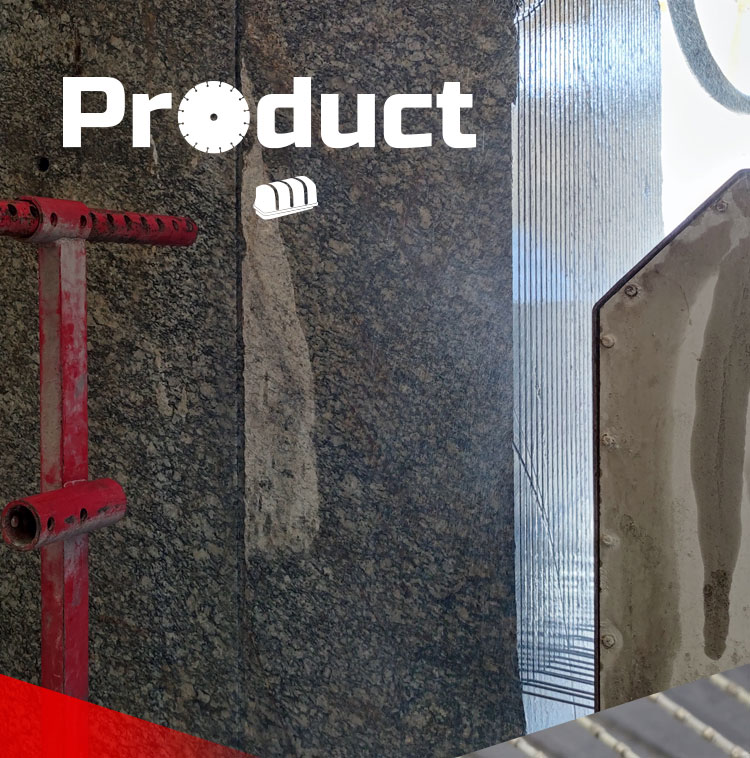

The wire saw is used on the automatic wire saw machine. Multiple sets of wire saws have high cutting efficiency and low cutting noise. Generally used for higher hardness granite and lower hardness granite cutting.
Message
Product Feature:
1. High effective with smooth surface and long life make cost lower;
2. It can cut stones with different hardness;
3. Production processes are strictly controlled to ensure stable quality.
Products Specification:
Diameter (mm) | Bead No. (pcs/m) | Reinforcement | Usage |
D6.3 | 37 | Plastic | Granite/ Quartz Block |
D7.3 | 37 | Plastic | Granite/ Quartz Block |
Cutting Material | Line Speed(m/s) | Efficiency(m²/h) | Life(m²/m) |
Class1-2 | 27-32 | 1.3-1.7 | 10-15 |
Class3-4 | 27-32 | 0.7-1.3 | 8-10 |
Class5 | 27-32 | 0.5-0.7 | 6-8 |

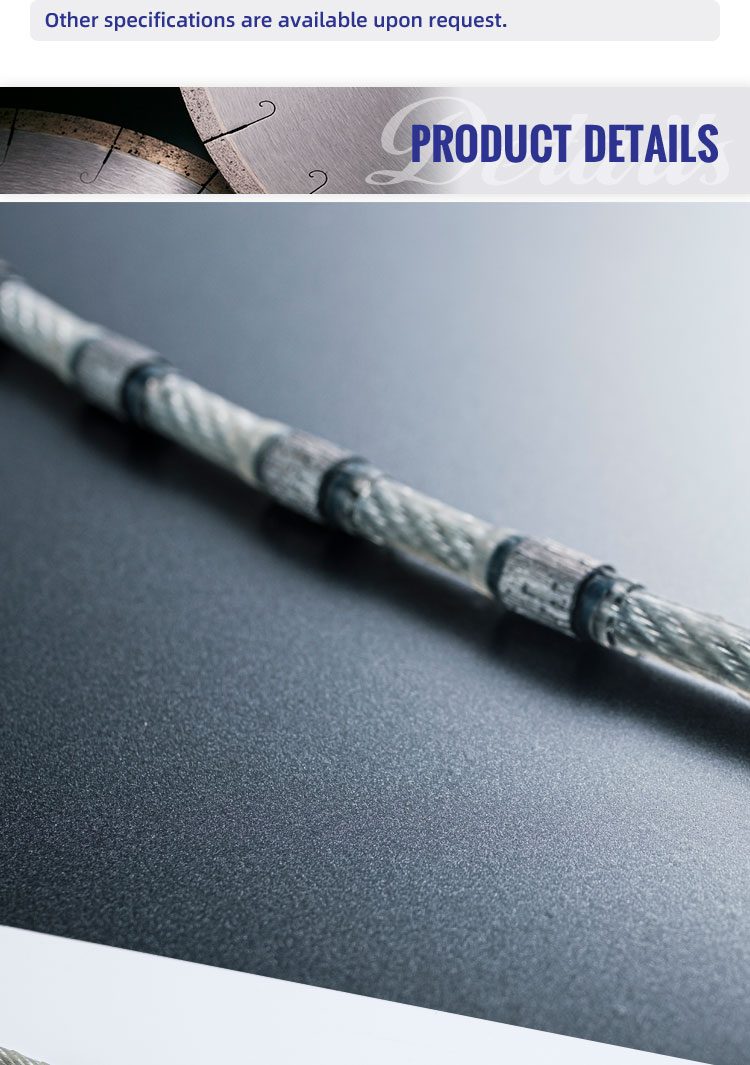

Other specifications are available upon request
