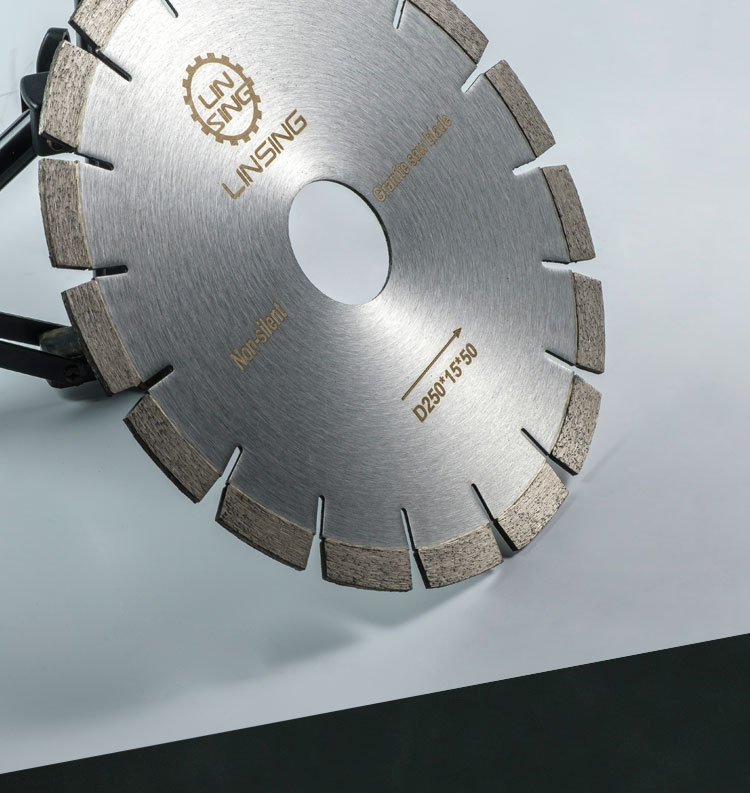

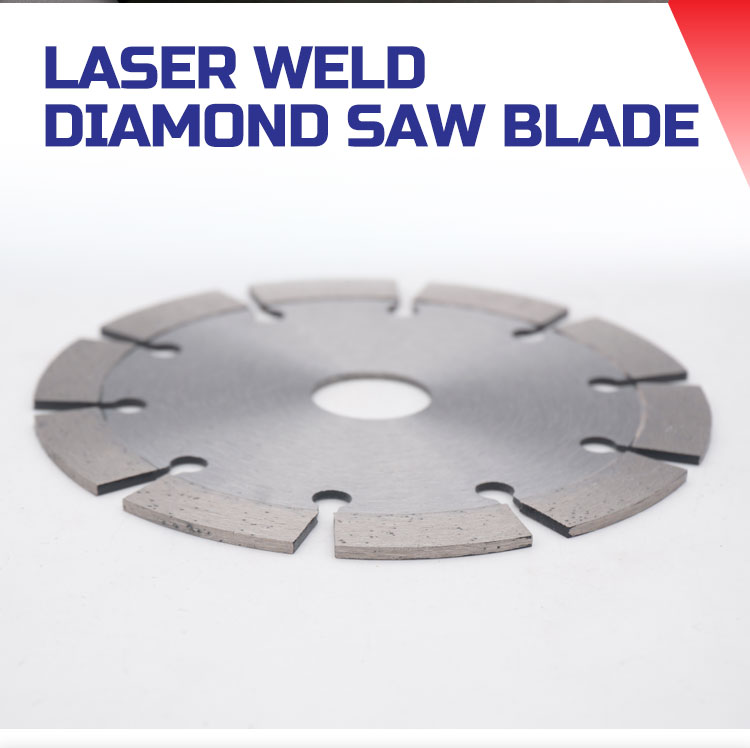

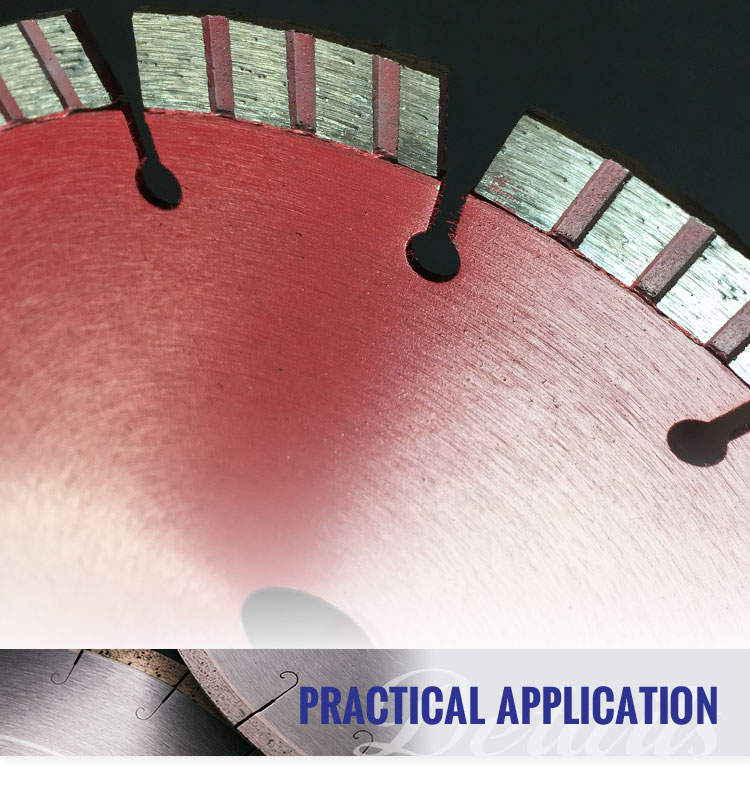

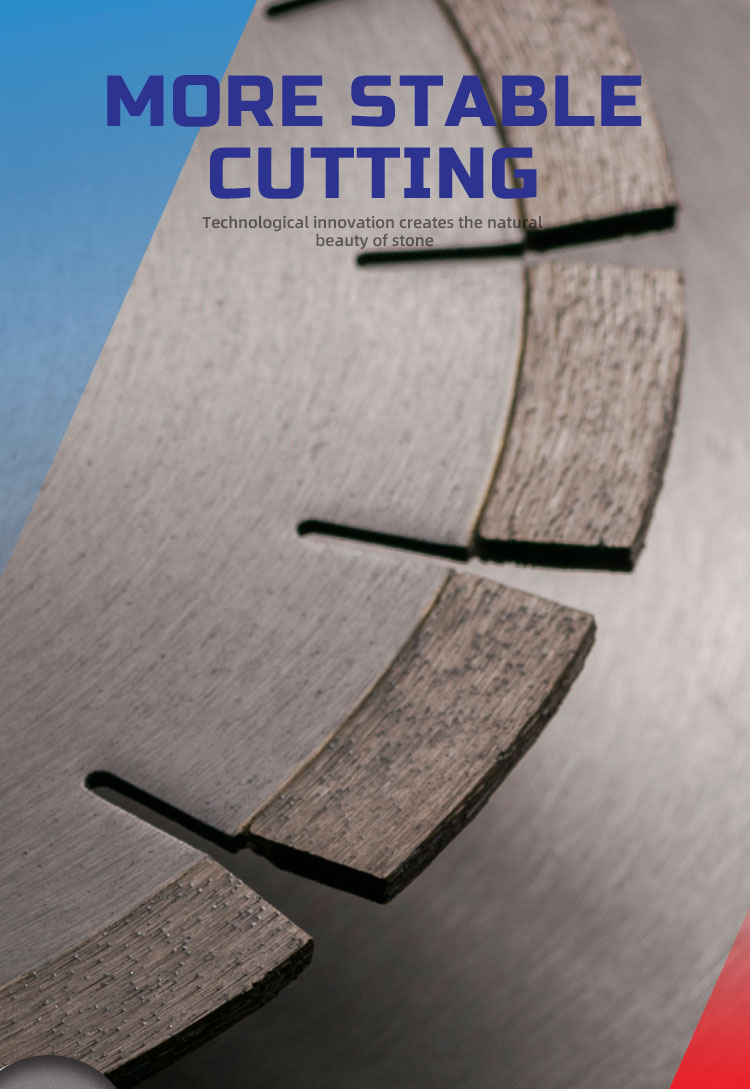

Laser Weld Diamond Saw Blade
This saw blade adopts laser welding process. Laser welding technology enables the manufacturing process to be highly automated,resulting in greatly improved stability and stronger adhesion of the diamonds to the metal substrate.The result is improved efficiency ,cutting life and operator safety.
Message

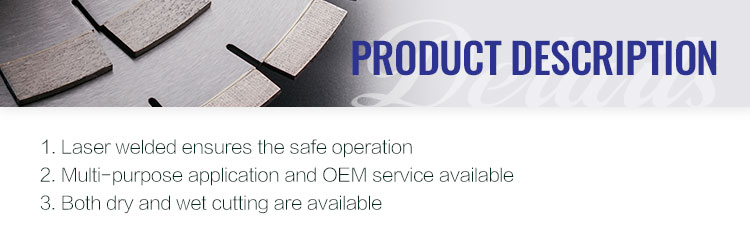

Product Feature:
1. Laser welded ensures the safe operation;
2. Multi-purpose application and OEM service available;
3. Both dry and wet cutting are available.

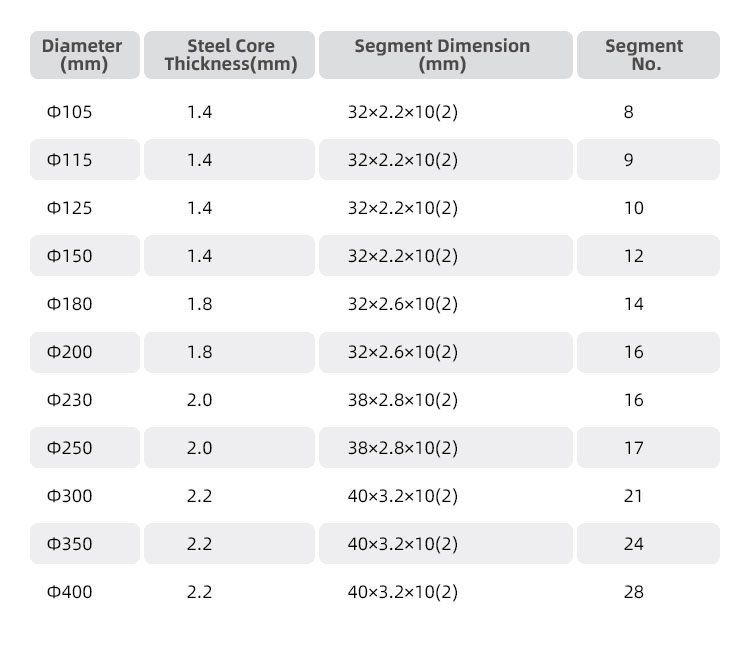

Product Specification:
Diameter (inch/mm) | Steel Core Thickness (mm) | Segment Specification (mm) | Segment No. (pcs) |
Φ4”/105 | 1.4 | 32×2.2×10(2) | 8 |
Φ4.5”/115 | 1.4 | 32×2.2×10(2) | 9 |
Φ5”/125 | 1.4 | 32×2.2×10(2) | 10 |
Φ6”/150 | 1.4 | 32×2.2×10(2) | 12 |
Φ7”/180 | 1.8 | 32×2.6×10(2) | 14 |
Φ8”/200 | 1.8 | 32×2.6×10(2) | 16 |
Φ9”/230 | 2.0 | 38×2.8×10(2) | 16 |
Φ10”/250 | 2.0 | 38×2.8×10(2) | 17 |
Φ12”/300 | 2.2 | 40×3.2×10(2) | 21 |
Φ14”/350 | 2.2 | 40×3.2×10(2) | 24 |
Φ16”/400 | 2.2 | 40×3.2×10(2) | 28 |

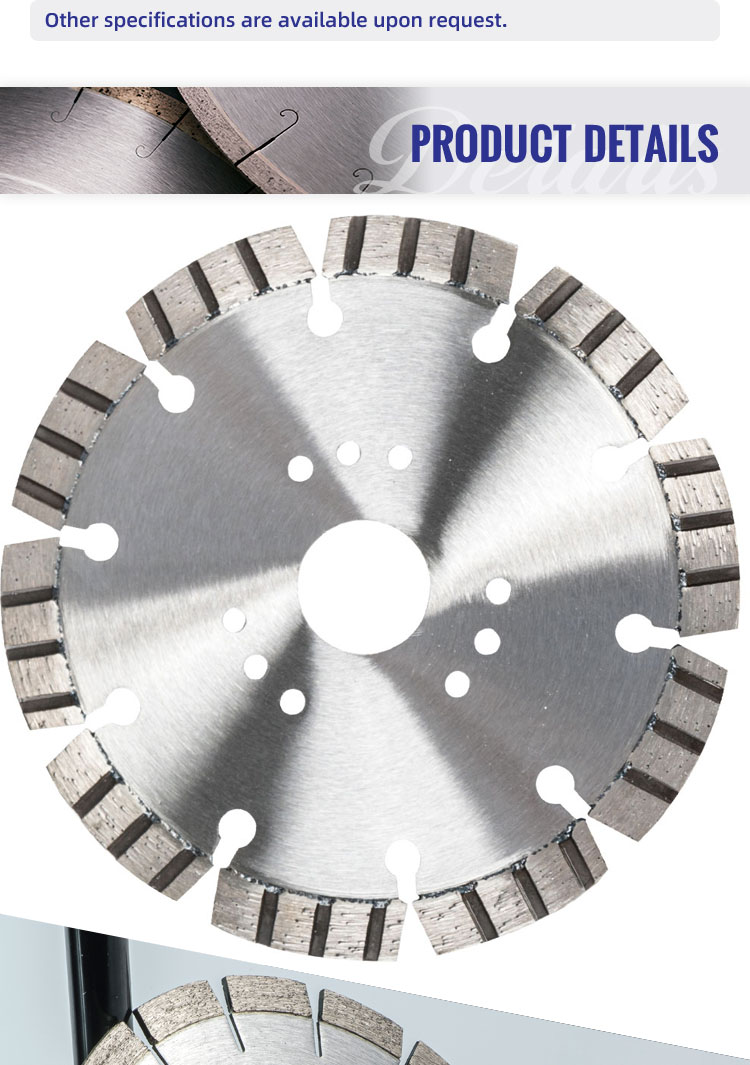

Other specifications are available upon request.
