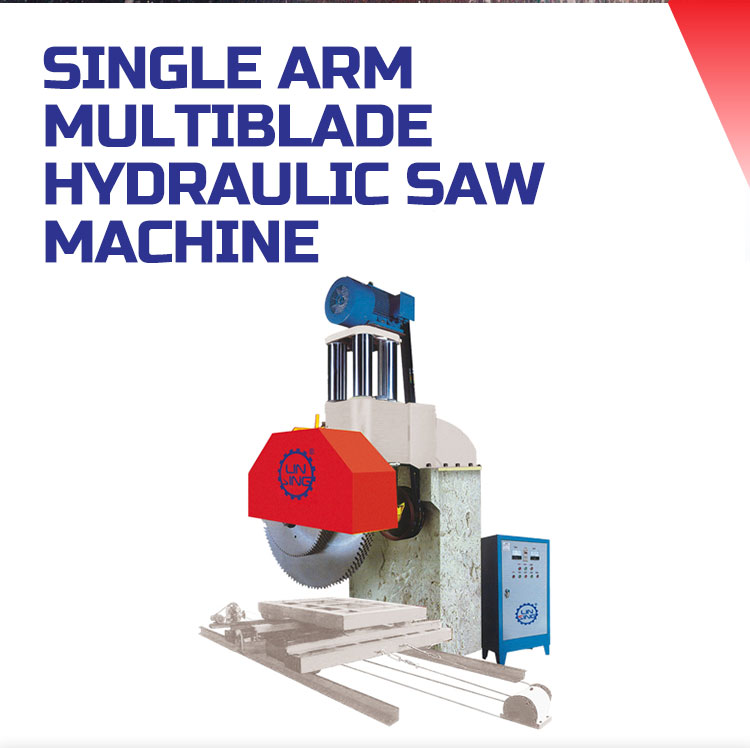

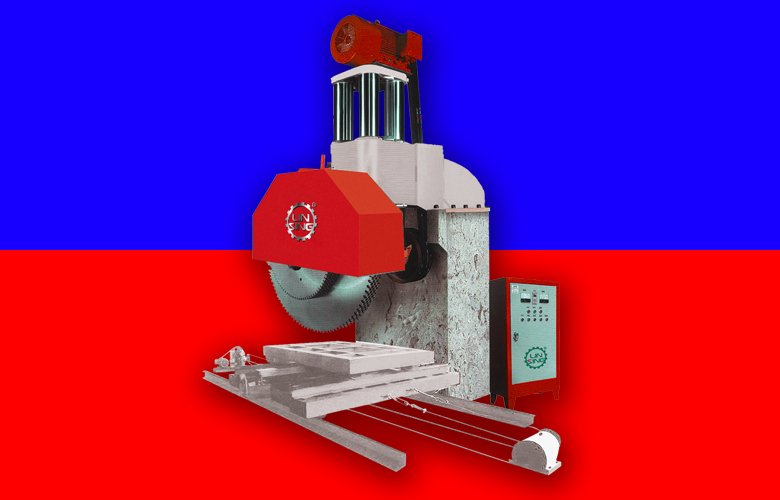

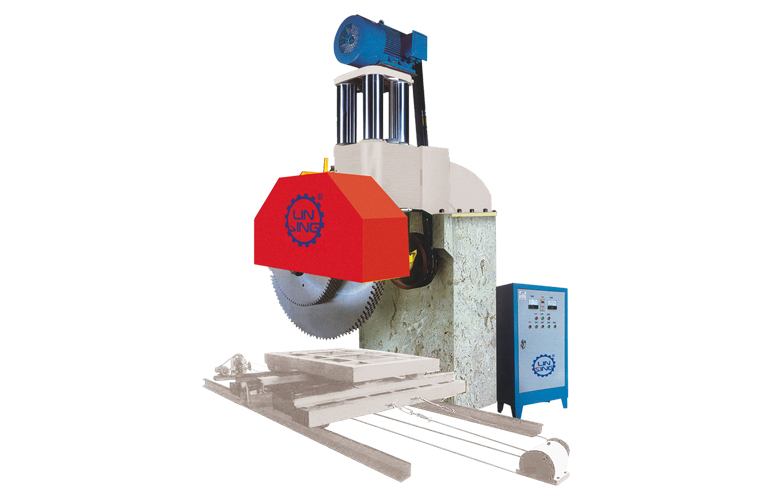

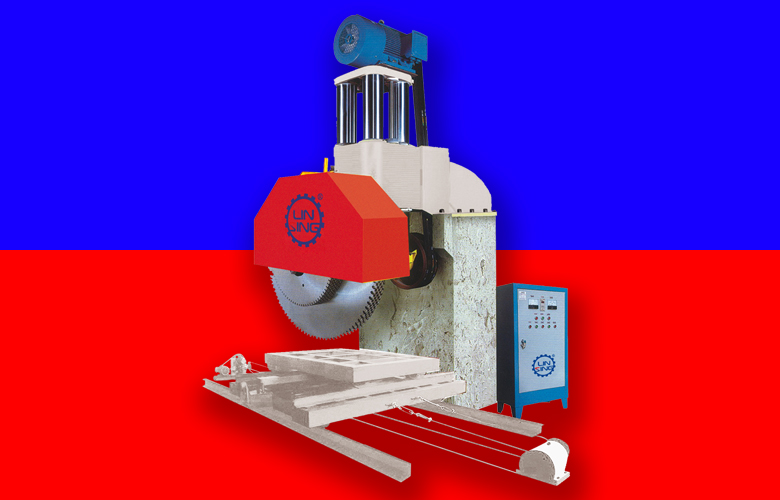

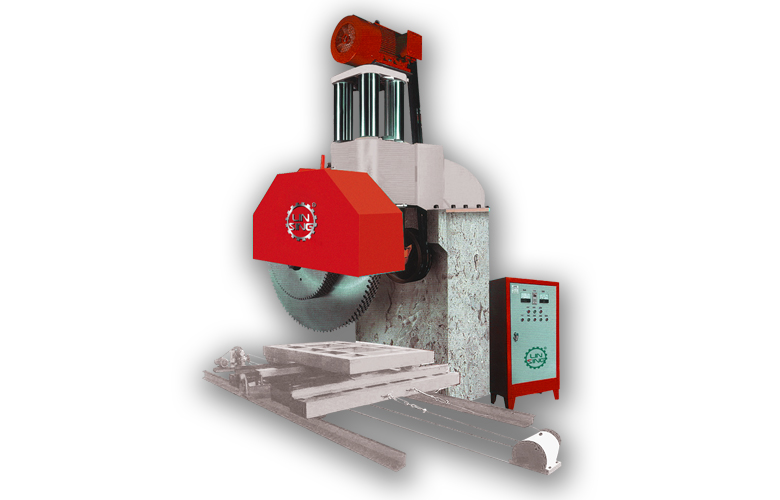

Single Arm Multi-blade Stone Cutting Machine
Product Features:

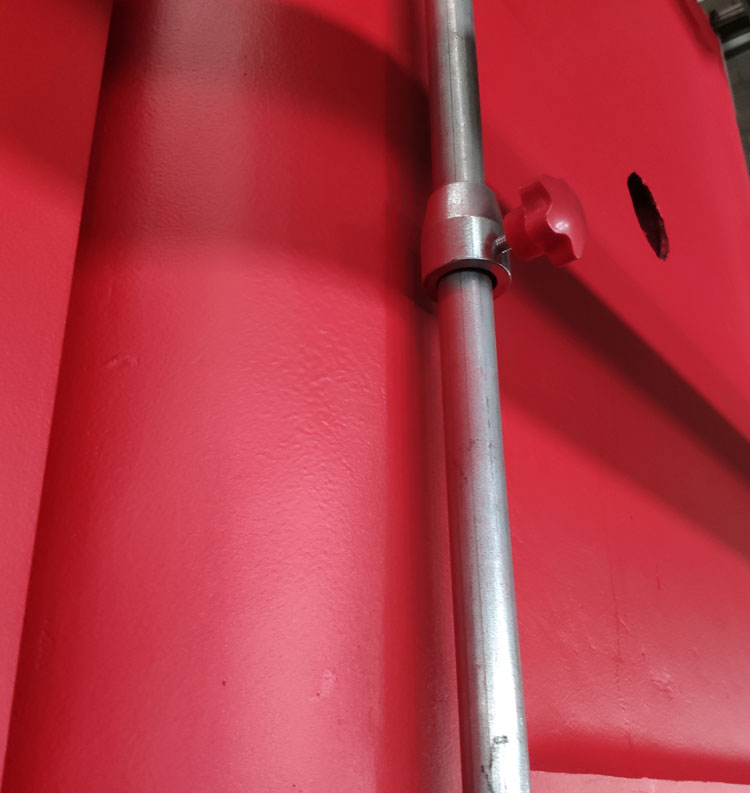

The machine uses large span of four guide column structure,host rigidity, high cutting efficiency , greatly improved blade life and lower power consumption,meanwhile guide column using oil lubrication, with better lubrication, more convenient maintenance; especially according to the stone worse environment to design the multi-layer modular sealing device,with waterproof , dust-proof and anti-spill , improve the using life of the machine;quarry table using bilateral gear drive, effectively avoiding the skip deviation of the phenomenon,better slicing precision; the machine with compact structure , easy operation,adopts high-quality materials , especially suitable for cutting granite blocks.
1. Single Arm Multi-blade Stone Cutting Machine is a semi- automaitc stone cutting machine. it's simple&efficient;
2. The stone cutting mahcine can install 8/12/14/16/18/22 pcs. Most domestic slab company will chooce this kind of the multi-blade granite block cutting machine because of the high capacity and good quality;
3. The patend lubrication system of the machine can vastly reduce maintenace frequency and maintenace costs which means a perfectly block cutter compared with traditional same kind of machine.

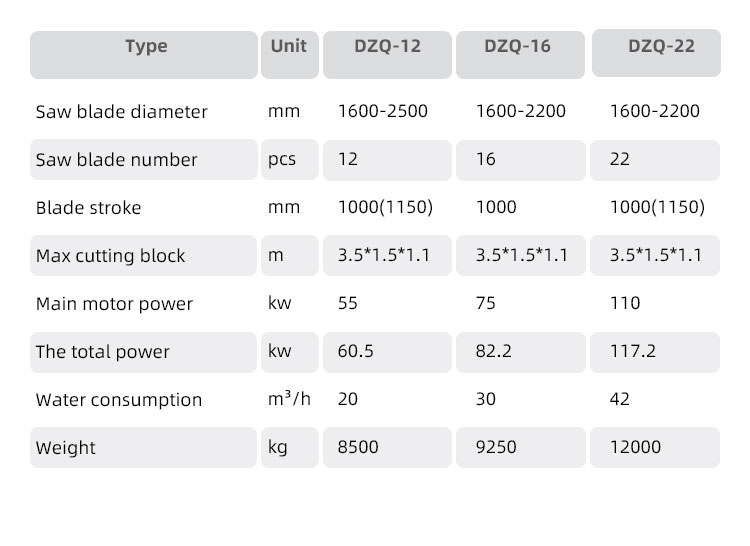

Product Specifications:
| Model | Unit | DZQ-12 | DZQ-14 | DZQ-16 | DZQ-22 |
| Saw blade diameter | mm | 1600-2500 | 1600-2500 | 1600-2200 | 1600-2200 |
| Saw blade number | pcs | 12 | 14 | 16 | 22 |
| Blade stroke | mm | 1000(1150) | 1000(1150) | 1000 | 1000(1150) |
| Max cutting block | m | 3.5*1.5*0.95(1.1) | 3.5*1.5*0.95(1.1) | 3.5*1.5*1.1 | 3.5*1.5*1.1 |
| Main motor power | kw | 55 | 65 | 75 | 110 |
| The total power | kw | 60.5 | 70.5 | 82.2 | 117.2 |
| Water consumption | m³/h | 20 | 24 | 30 | 42 |
| Weight | kg | 8500 | 9000 | 9250 | 12000 |

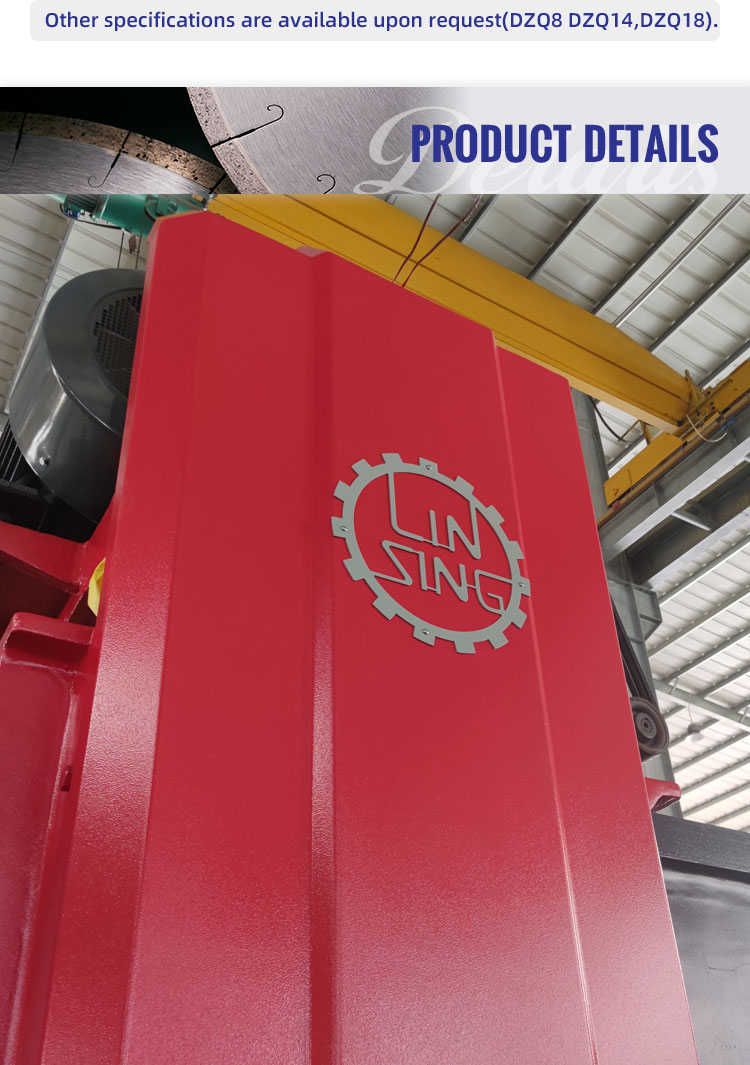

Other specifications are available upon request(DZQ8 DZQ14,DZQ18).
