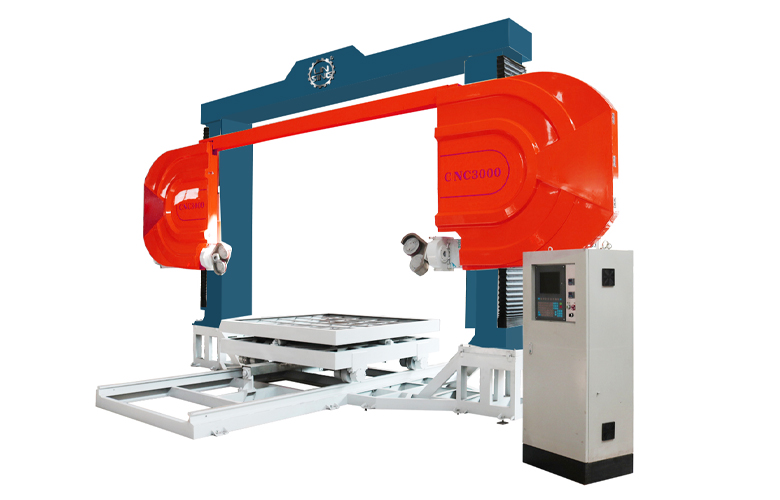

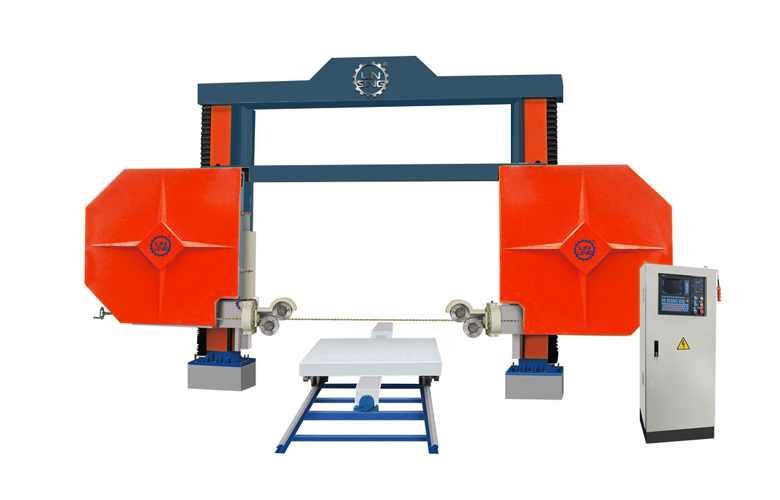

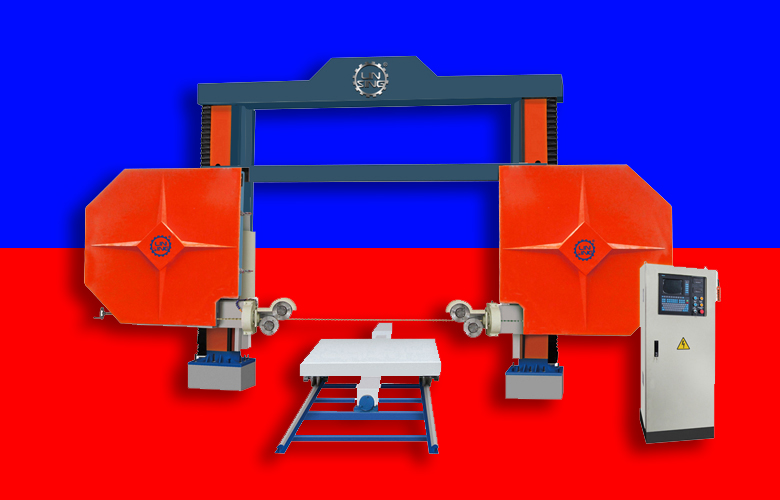

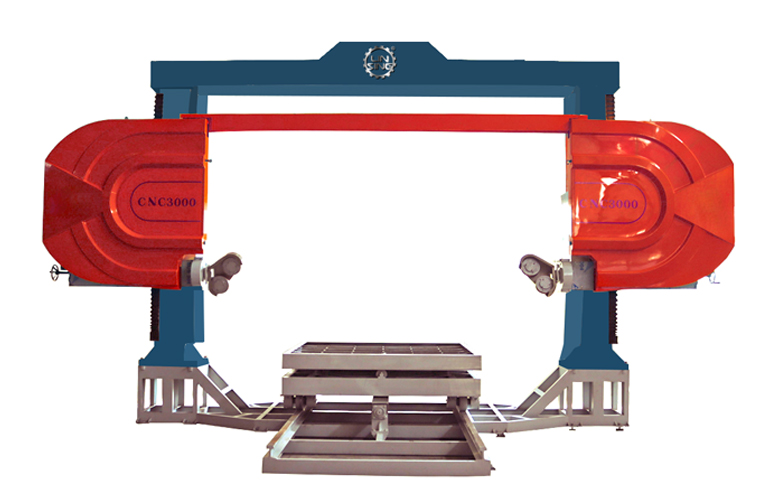

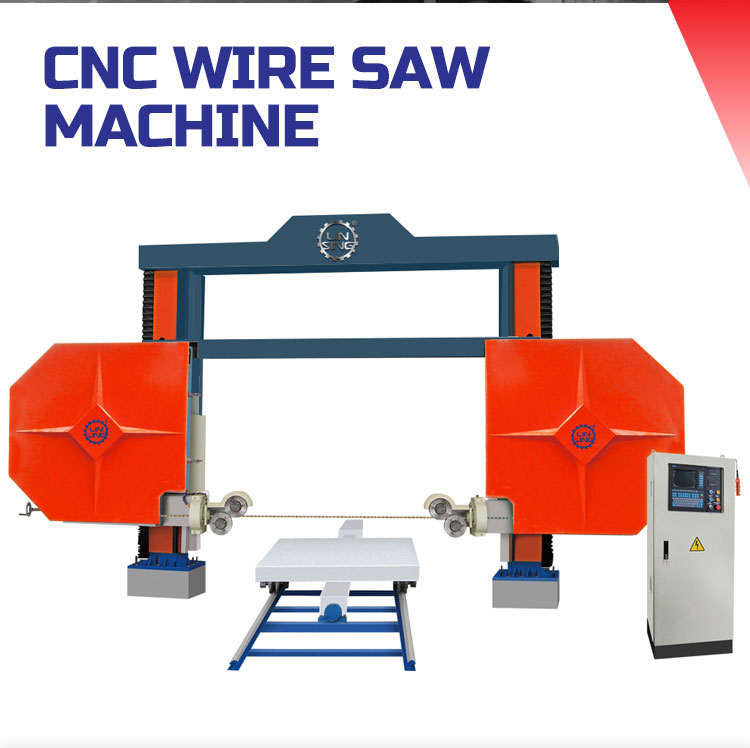

Numerical Control CNC Wire Saw

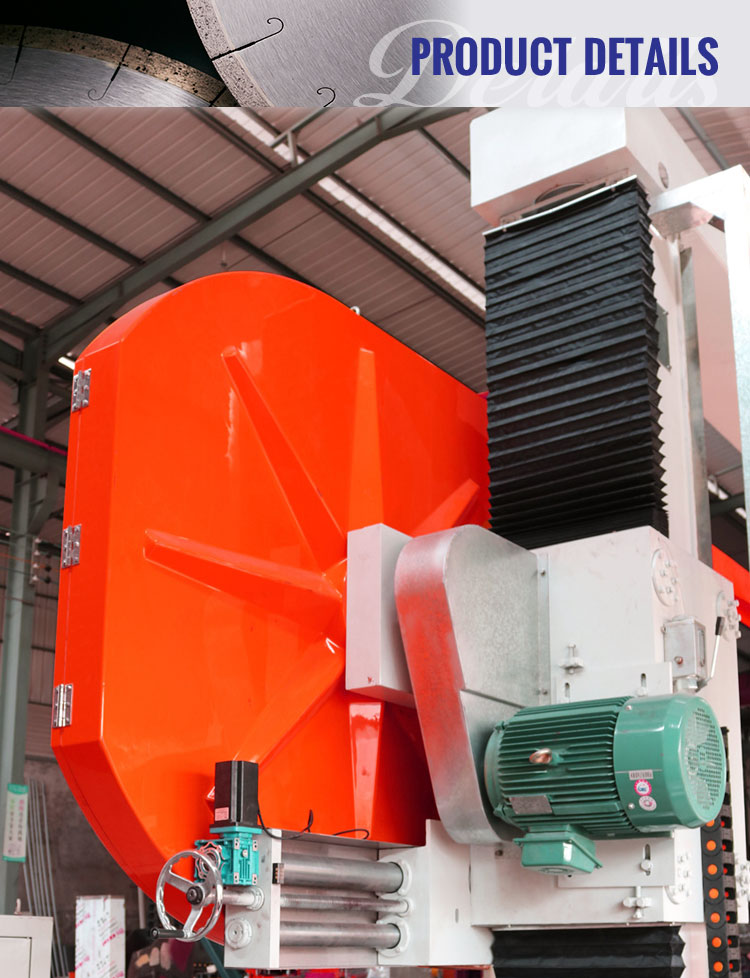

CNC system makes the man-machine interface easy and flexible Diverse, complex.The flywheel elevates and lowers along these guide rails and the linear cutting speed can be adjusted according to different cutting requirements, which greatly improves the cutting accuracy.The protective cover is waterproof and highly durable.

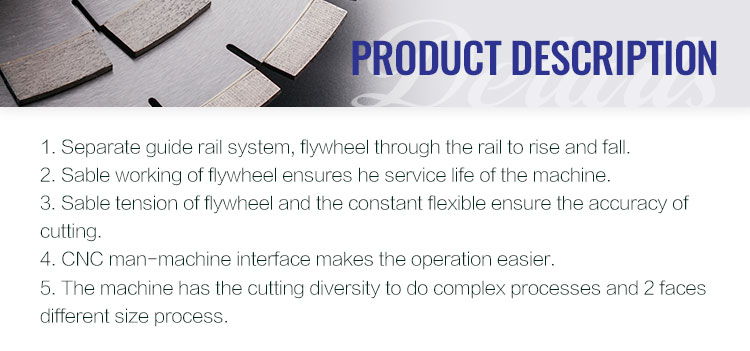

Product Features:
1. Separate guide rail system, flywheel through the rail to rise and fall;
2. Sable working of flywheel ensures he service life of the machine;
3. Sable tension of flywheel and the constant flexible ensure the accuracy of cutting;

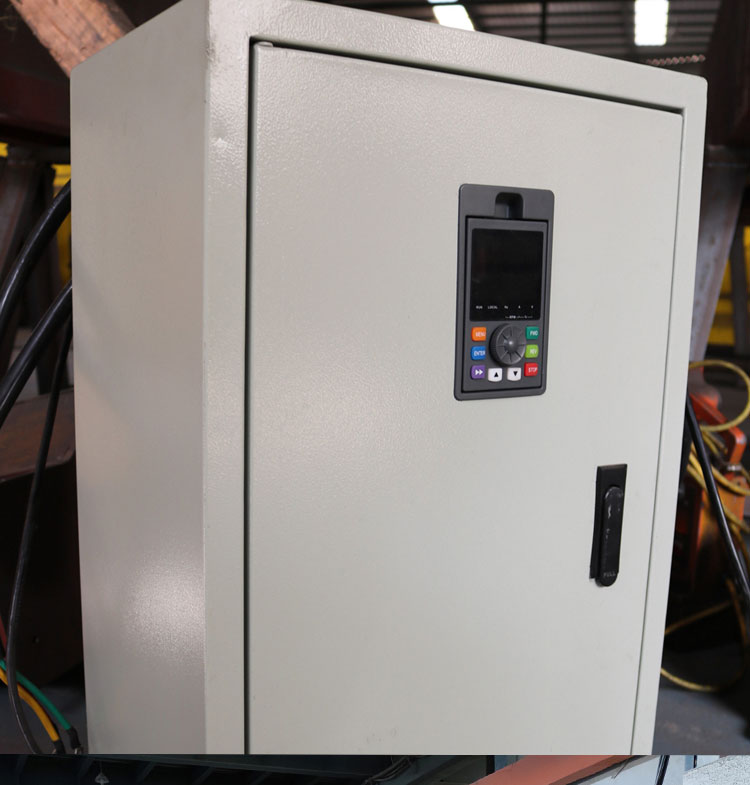

4. CNC man-machine interface makes the operation easier;
5. The machine has the cutting diversity to do complex processes and 2 faces different size process;

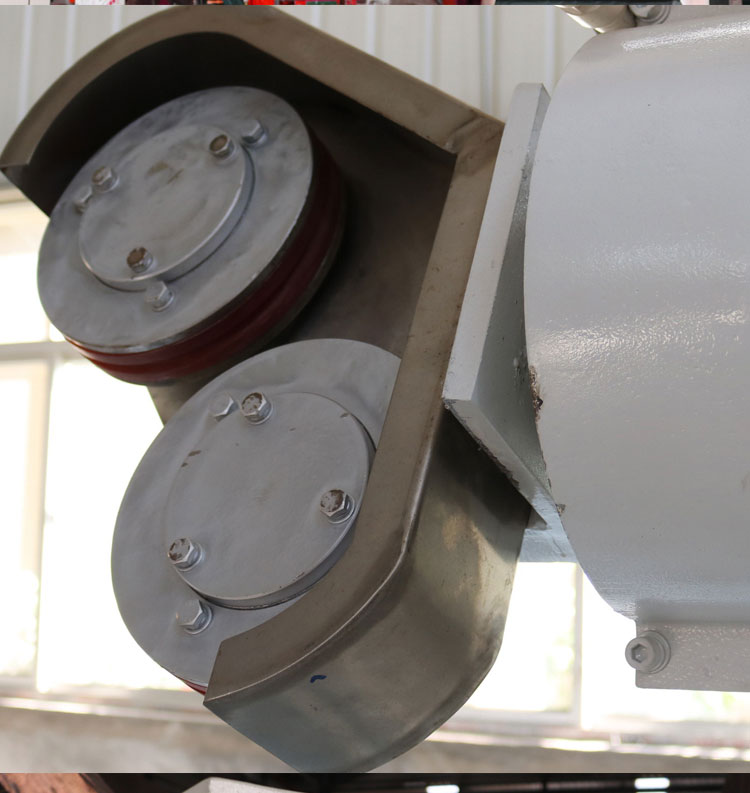

6. Four guide wheels are equipped with rubber ring, which greatly improves the accuracy of cutting. According to different cutting requirements to adjust the line cutting speed. Protective cover is waterproof and durable;
7. The magnetic sliced ensure slicing precision gate;
8. Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable;
9. Worktable can tilt 0-90°, and rotate 0-360°for special processing.

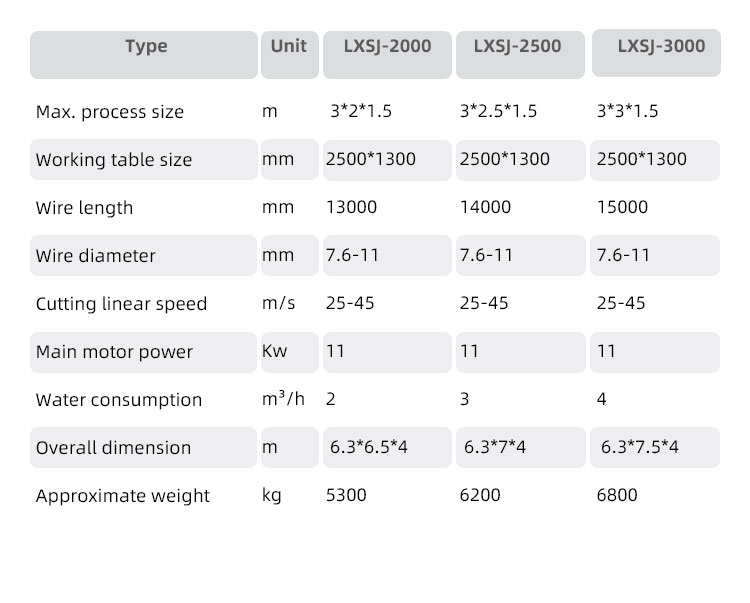

Product Specifications:

Max. process sizem3*2*1.53*2.5*1.53*3*1.5
Working table sizemm2500*13002500*13002500*1300
Wire lengthmm130001400015000
Wire diametermm7.6-117.6-117.6-11
Cutting linear speedm/s25-4525-4525-45
Main motor powerKw111111
Water consumption m³/h234
Overall dimensionm6.3*6.5*46.3*7*46.3*7.5*4
Approximate weightkg530062006800
