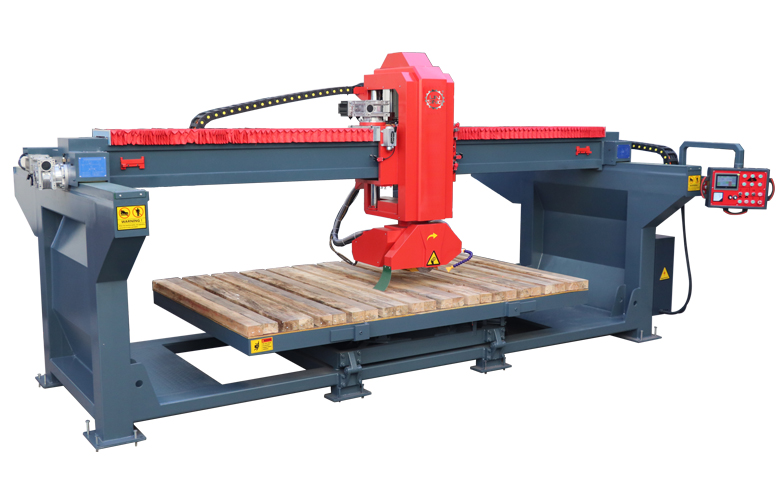

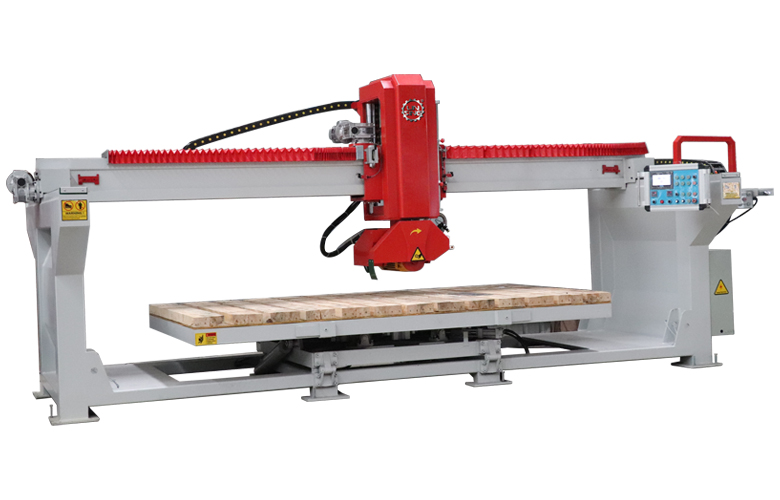

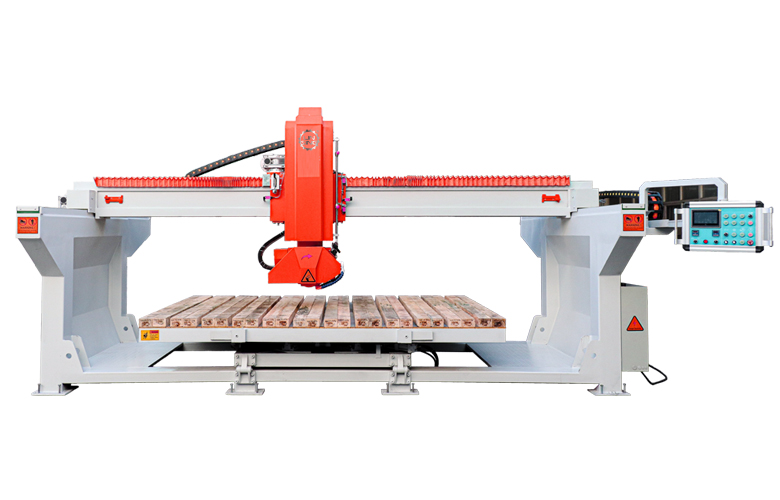

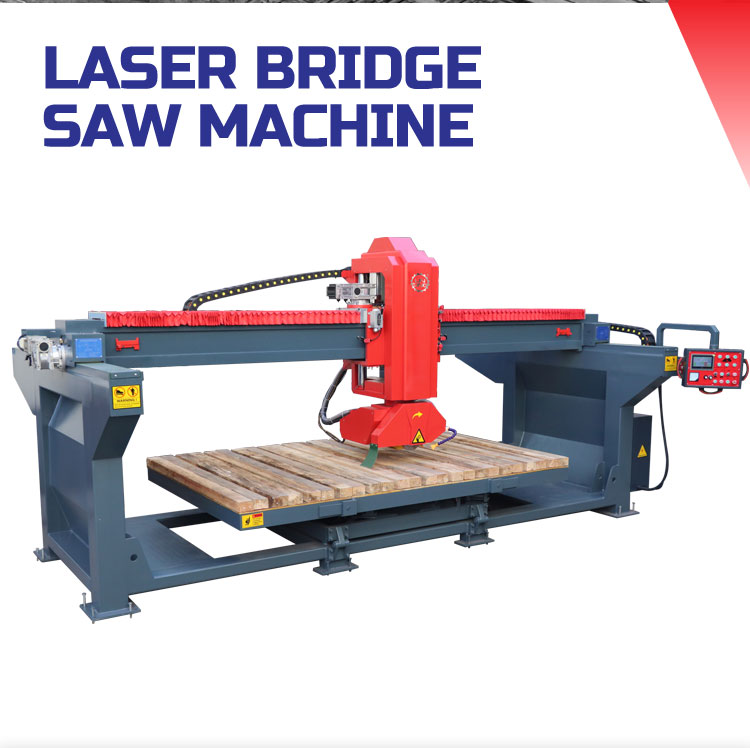

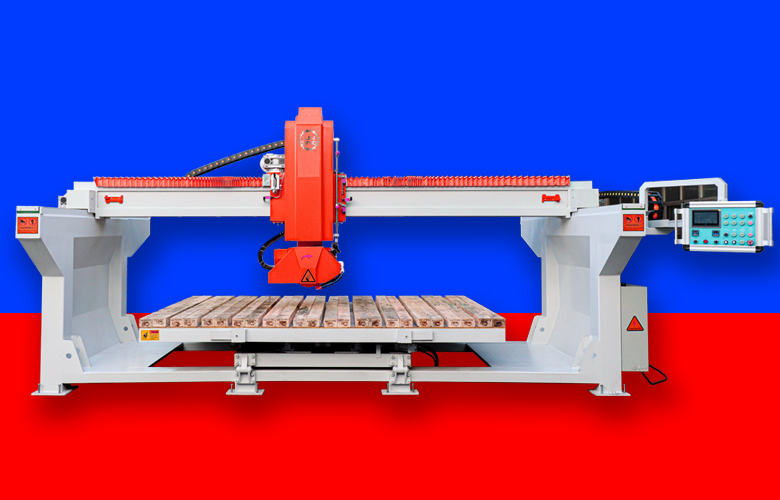

Mono-block Bridge Saw Machine

Product Features:
1. Mono-block machine, easy for container loading and machine installation;

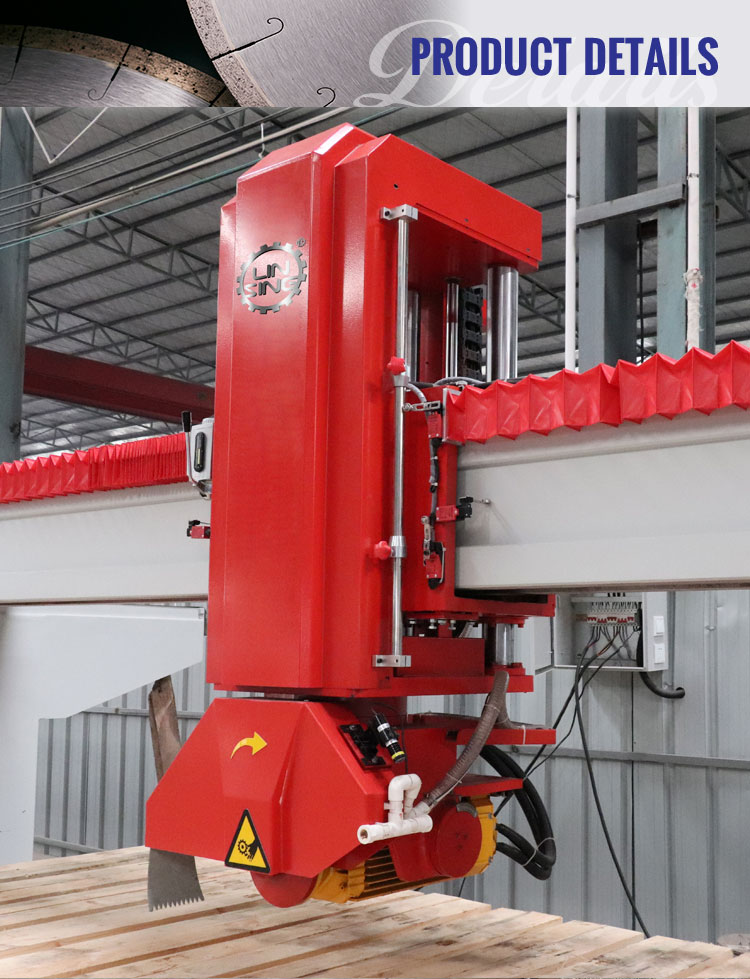

2. Cutting head uses the same structure as Italy 5-axis laser bridge cutting machine, more reasonable and stable;

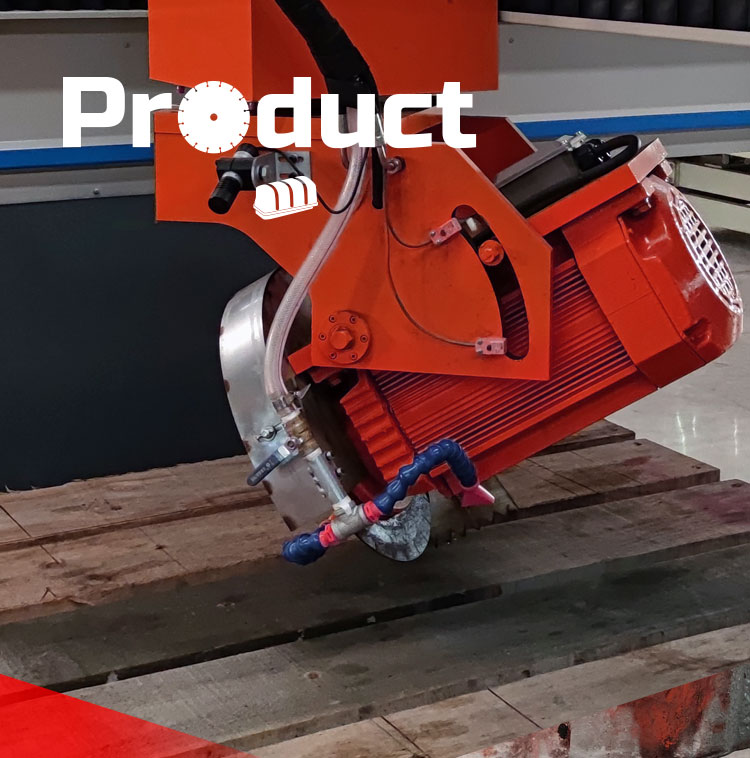

3. Blade can rotate 90 degrees and tilt 45 degree while worktable can rotate 360 degrees and tilt 85 degrees, easy for cutting direction changing and slabs loading;

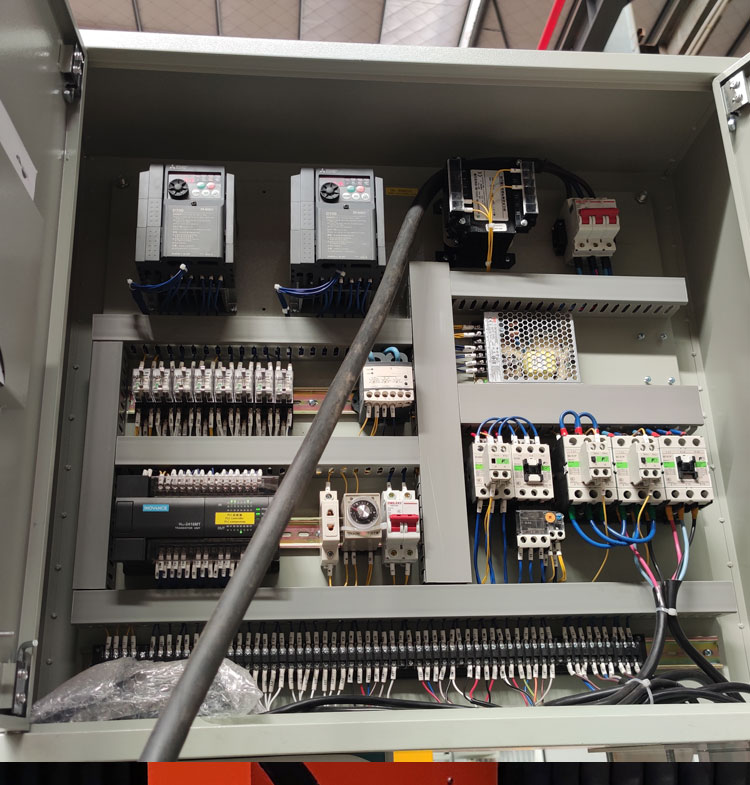

4. The main electrical components are well-known international brands: Panasonic PLC and Inverter, Fuji contactor;
5. Transverse and longitudinal magnetic grid are used to ensure the accuracy and stability of the equipment;
6. Cross beam use the high strength of the castings, avoid deformation after long-term use;
7. Host walking gear row with high precision, cooperate oil-immersed guide transmission, less resistance, high accuracy realized;
8. Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable;
9. SIEMENS or indigenous main motor, 15/18.5KW;
10. Adopts encoder for forward & backward slicing;
11. Top quality laser device with longer life and brightness.

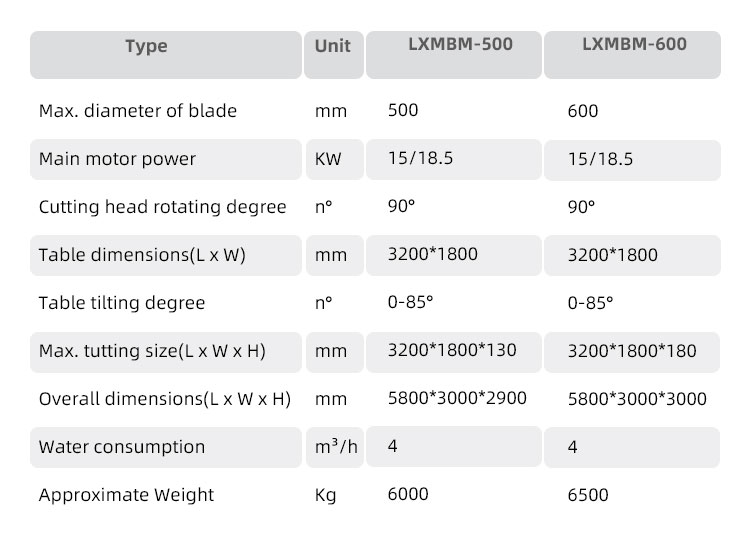

Product Specifications:
