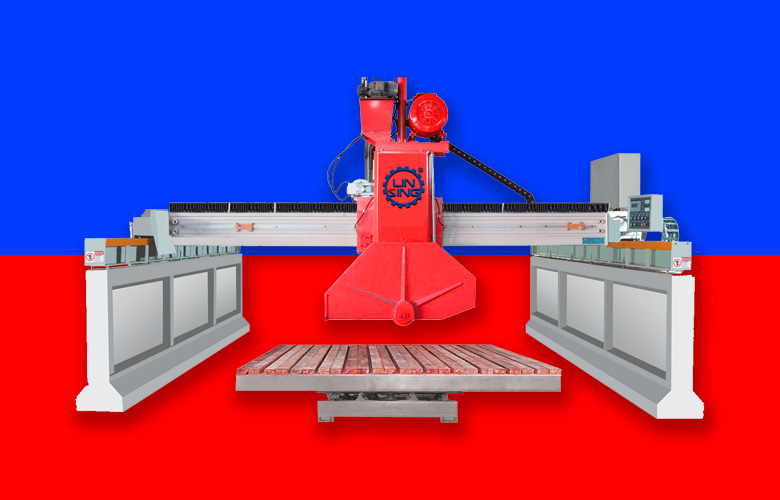

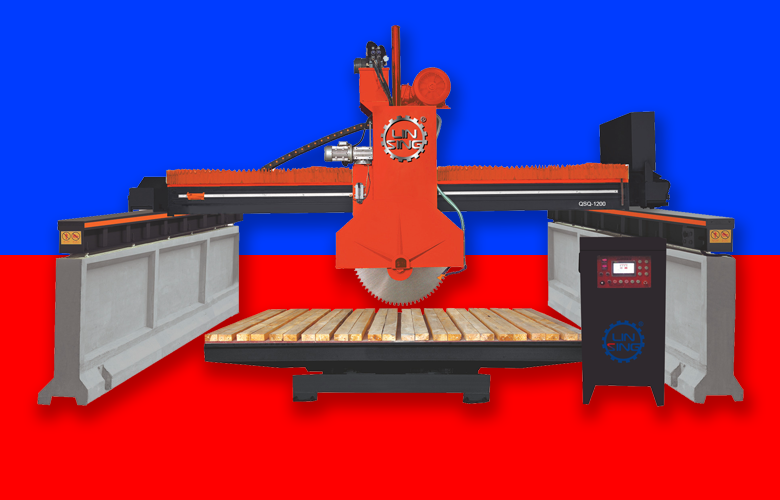

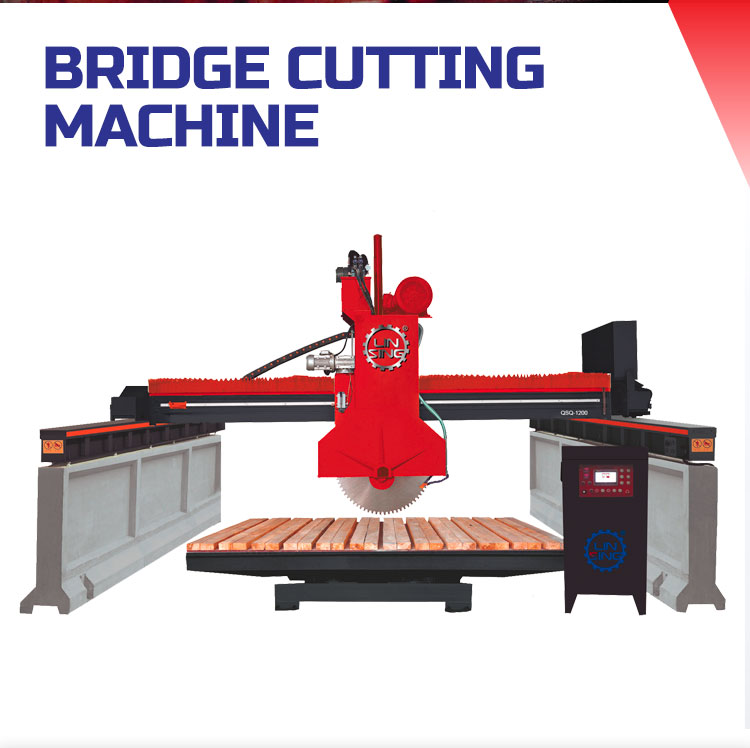

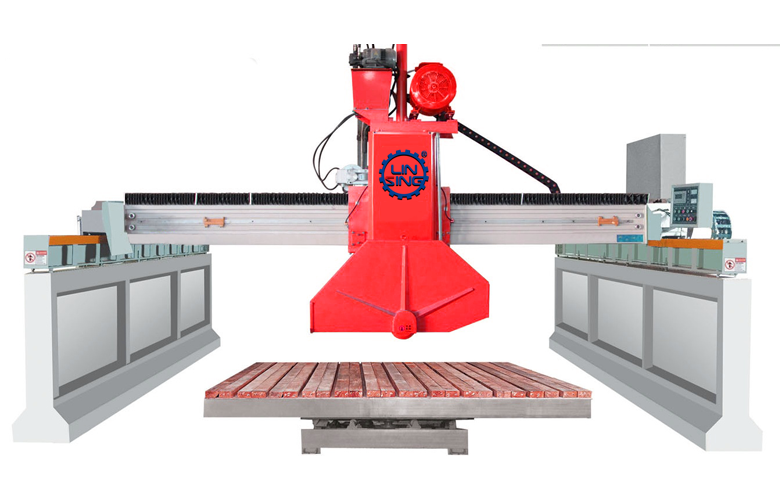

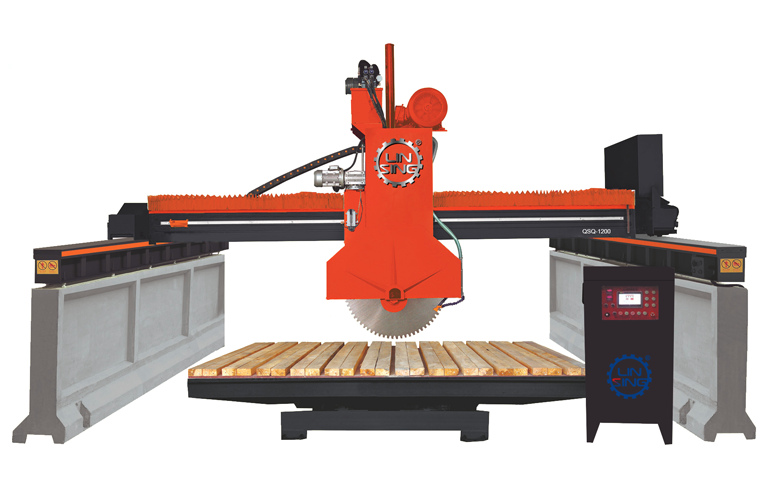

Bridge Cutting Machine For Block Cutting

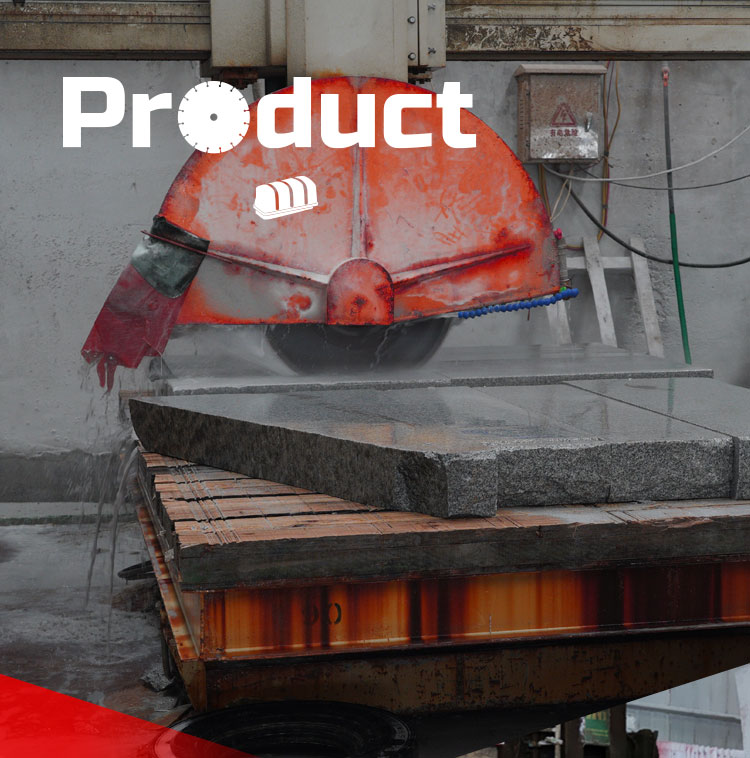

Bridge cutting machine is ideal equipment for processing middle size stone blocks, such as tombstone, stone material handicraft, curb stone.

Message

Product Features:

1: Adopts large span bridge stucture. The girder beam and guide rail are sealed with oil.
2: Automatic shift sharding. Feeding system adopts imported frequency converter, realize stepless speed cutting.
3: Equipped with a 360-degree rotating table.
4: Accurate positioning and high processing efficiency.

Product Specifications:

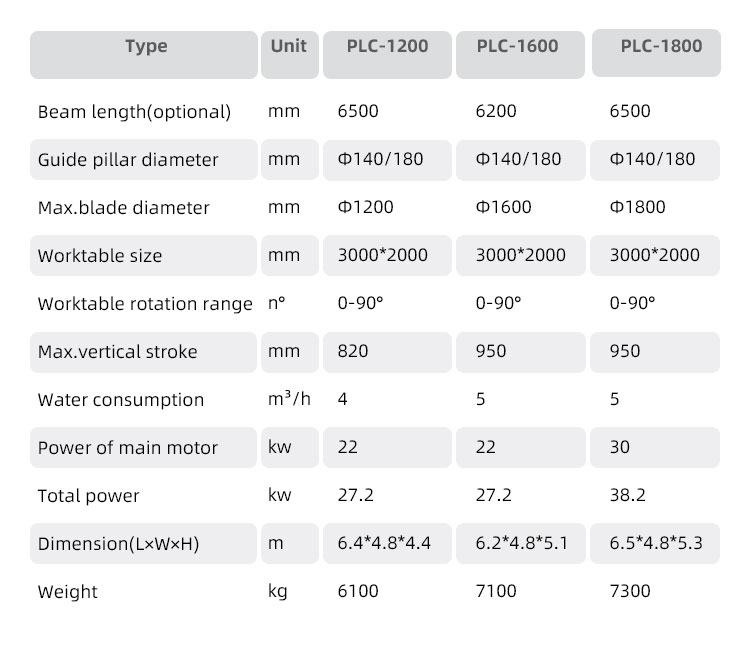

Model	Unit	PLC-1200	PLC-1600	PLC-1800	PLC-2200
Beam length(optional)	mm	6500	6200	6500	7000
Guide pillar diameter	mm	Φ140/180	Φ140/180	Φ140/180	Φ140/180
Max.blade diameter	mm	Φ1200	Φ1600	Φ1800	Φ2200
Worktable size	mm	3000*2000	3000*2000	3000*2000	3000*2000
Worktable rotation range	n°	0-90°	0-90°	0-90°	0-90°
Max.vertical stroke	mm	820	950	950	1150
Water consumption	m³/h	4	5	5	6
Power of main motor	kw	22	22	30	30
Total power	kw	27.2	27.2	38.2	38.2
Dimension(L×W×H)	m	6.44.84.4	6.24.85.1	6.54.85.3	7.04.85.5
Weight	kg	6100	7100	7300	7500
