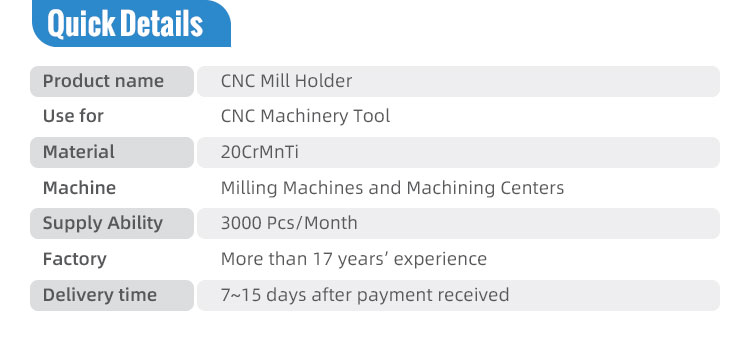

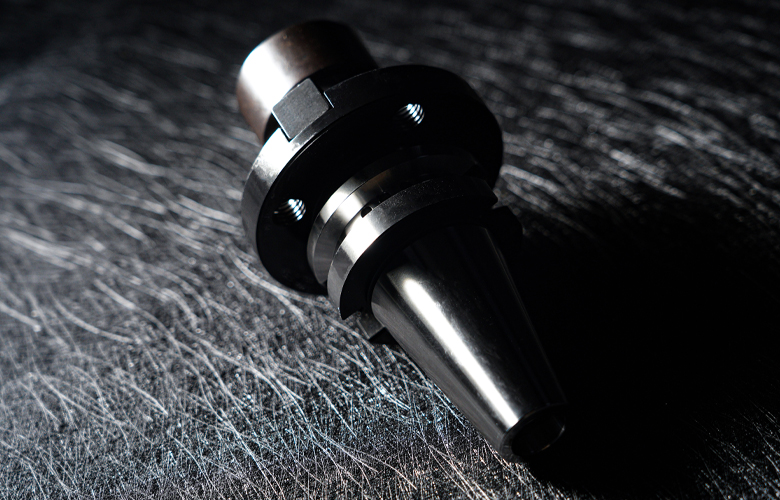

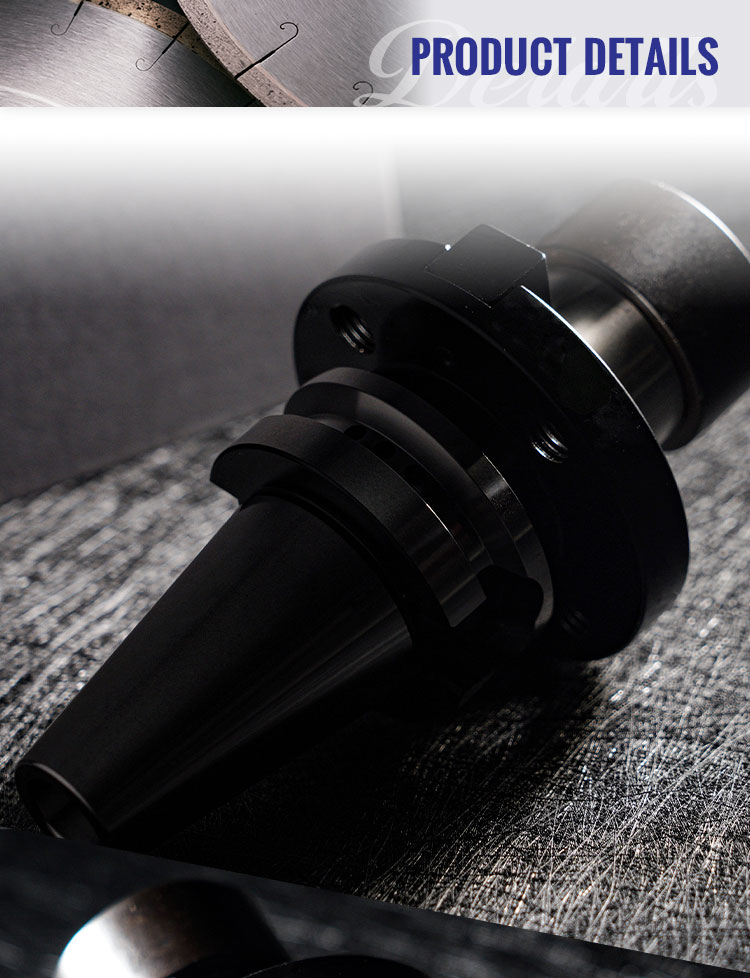

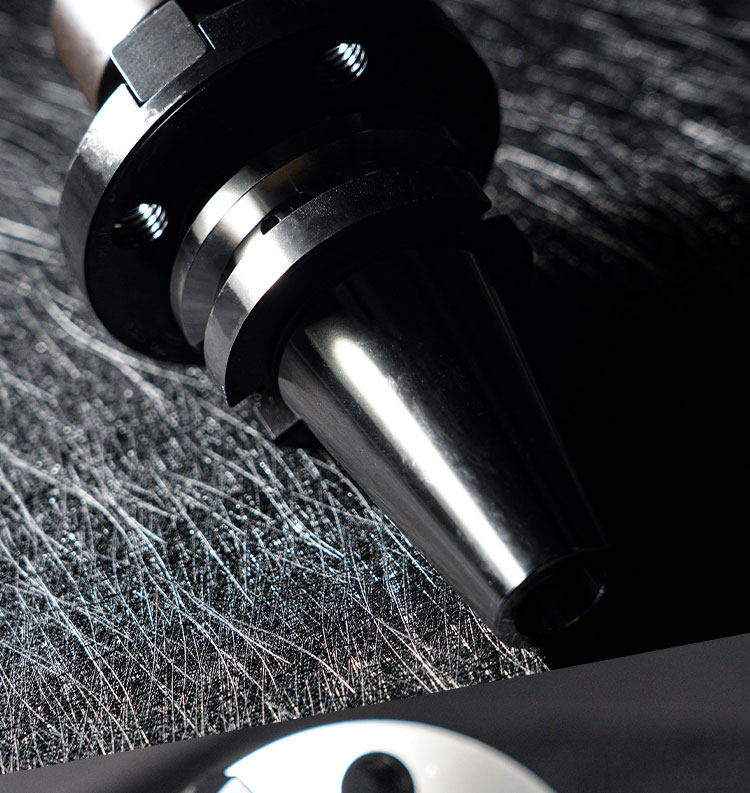

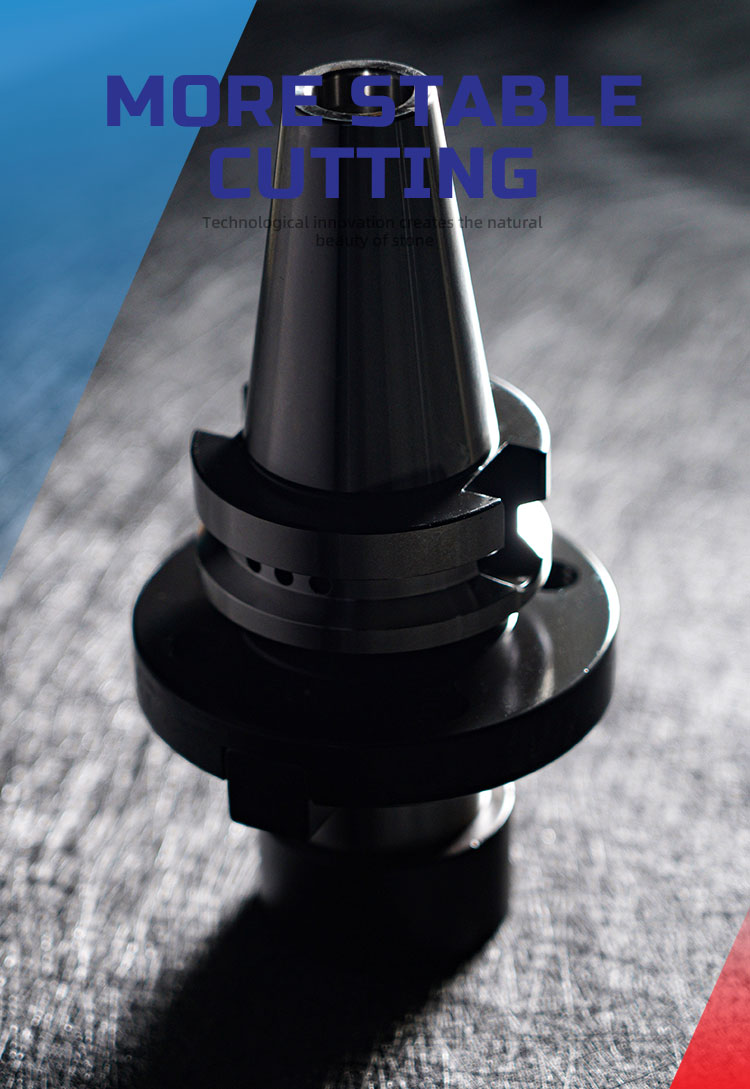

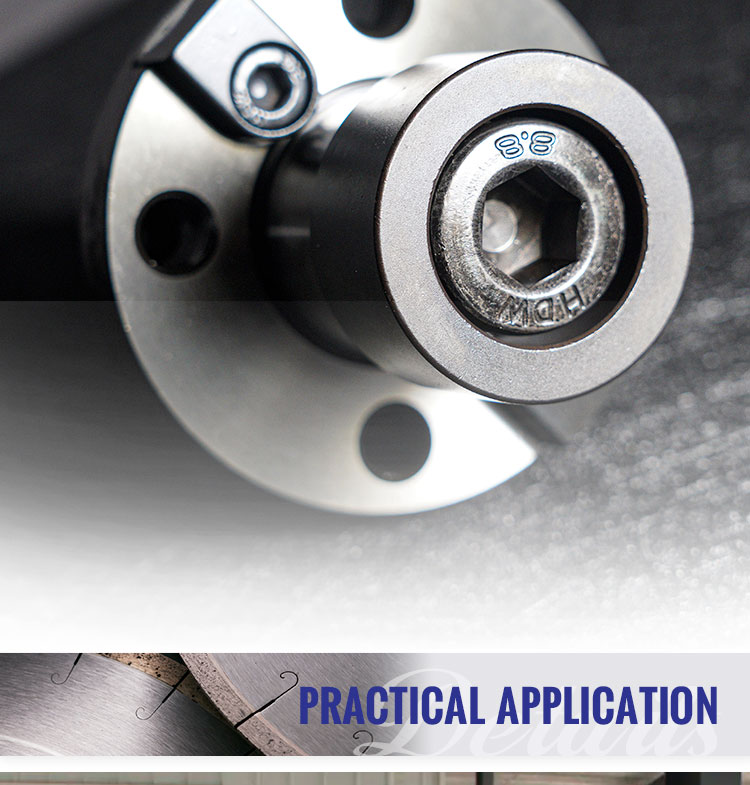

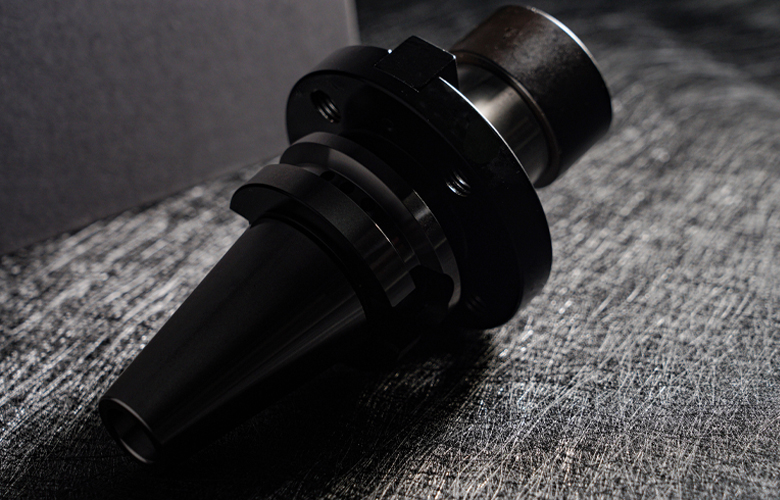

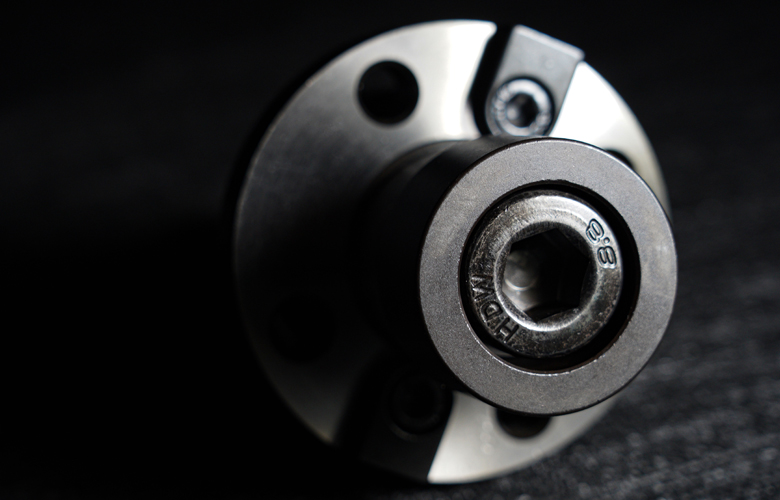

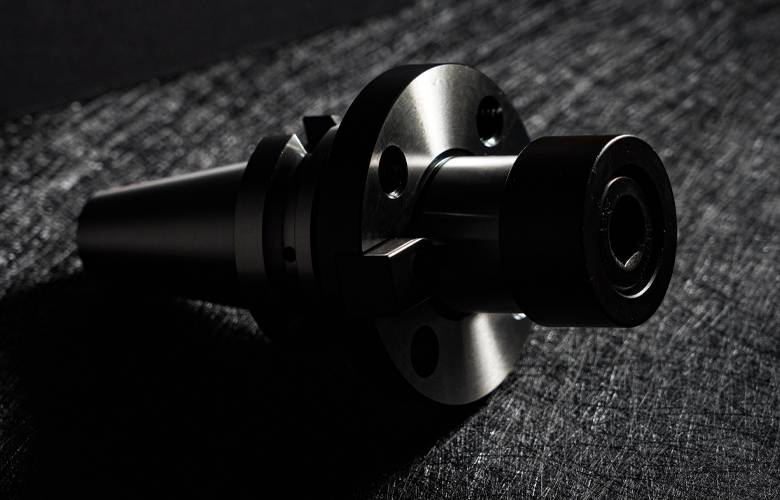

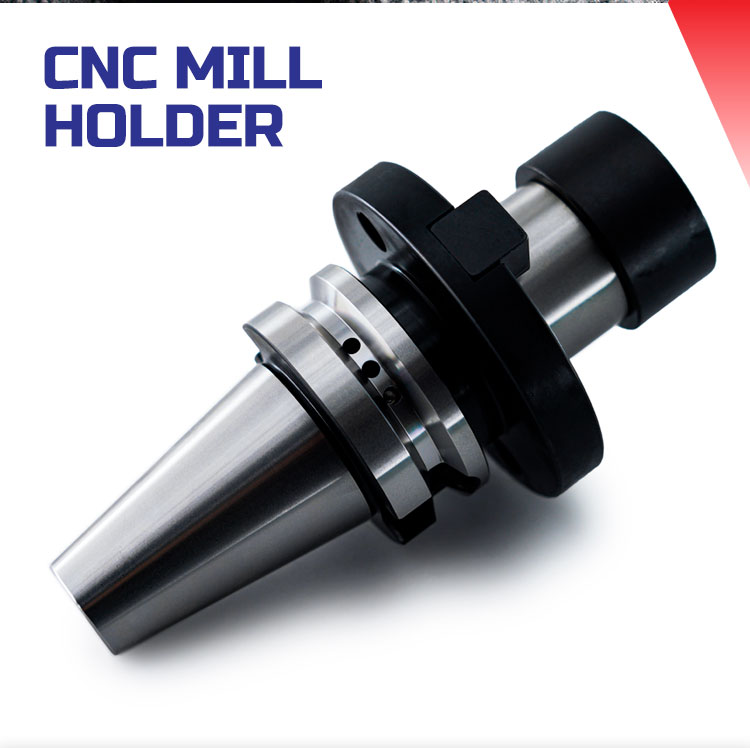

CNC Mill Holder
The body is made of high-quality material,it has high heat strength and oxygen resistance and good comprehensive mechanical properties. It is fully carburized and heat treated, with in-ternal and external diameter grinding, strong wear resistance, and stable quality.
Message
Product Features:
1: Can be used on CNC lathe machine and engine lathe.
2: Made in high quality alloy; Super long tool life.
3: Precise dimensions, high accuracy and repeated accuracy.
4: Customized tool design, marking, packing are available.

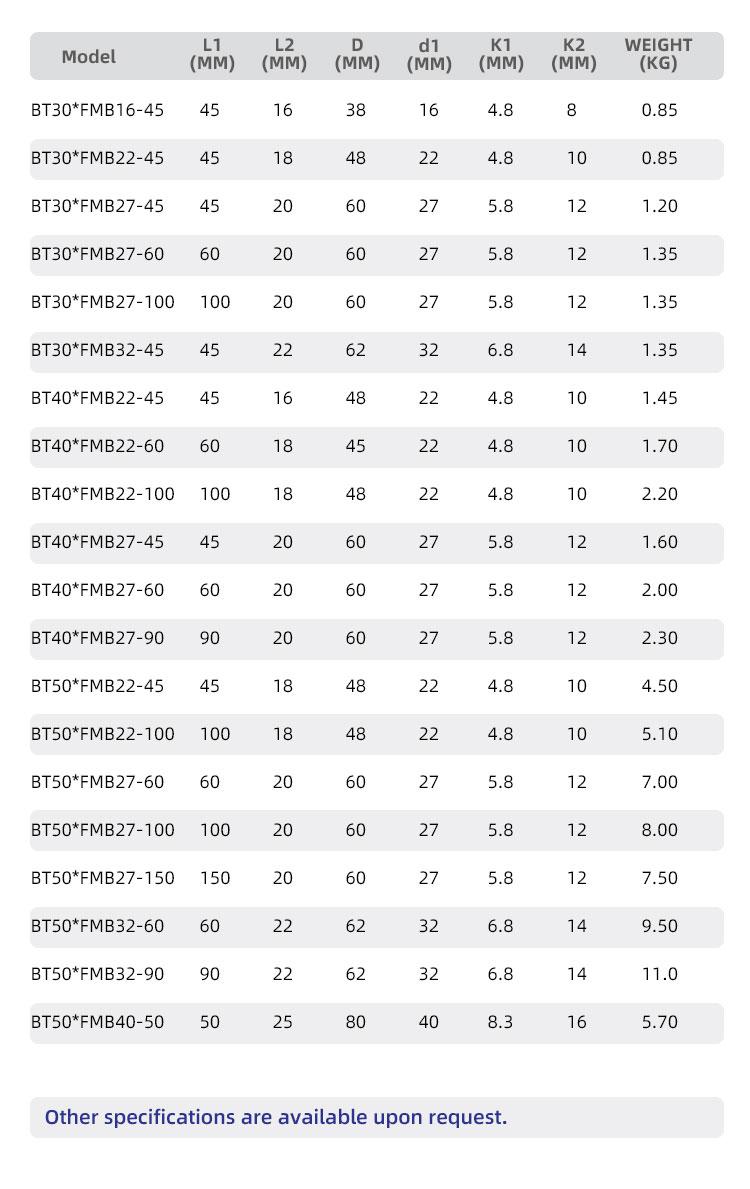

Product Specifications:
Model | L1 (MM) | L2 (MM) | D (MM) | d1 (MM) | K1 (MM) | K2 (MM) | WEIGHT (MM) |
| BT30*FMB16-45 | 45 | 16 | 38 | 16 | 4.8 | 8 | 0.85 |
| BT30*FMB22-45 | 45 | 18 | 48 | 22 | 4.8 | 10 | 0.85 |
| BT30*FMB27-45 | 45 | 20 | 60 | 27 | 5.8 | 12 | 1.20 |
| BT30*FMB27-60 | 60 | 20 | 60 | 27 | 5.8 | 12 | 1.35 |
| BT30*FMB27-100 | 100 | 20 | 60 | 27 | 5.8 | 12 | 1.35 |
| BT30*FMB32-45 | 45 | 22 | 62 | 32 | 6.8 | 14 | 1.35 |
| BT40*FMB22-45 | 45 | 16 | 48 | 22 | 4.8 | 10 | 1.45 |
| BT40*FMB22-60 | 60 | 18 | 45 | 22 | 4.8 | 10 | 1.70 |
| BT40*FMB22-100 | 100 | 18 | 48 | 22 | 4.8 | 10 | 2.20 |
| BT40*FMB27-45 | 45 | 20 | 60 | 27 | 5.8 | 12 | 1.60 |
| BT40*FMB27-60 | 60 | 20 | 60 | 27 | 5.8 | 12 | 2.00 |
| BT40*FMB27-90 | 90 | 20 | 60 | 27 | 5.8 | 12 | 2.30 |
| BT50*FMB22-45 | 45 | 18 | 48 | 22 | 4.8 | 10 | 4.50 |
| BT50*FMB22-100 | 100 | 18 | 48 | 22 | 4.8 | 10 | 5.10 |
| BT50*FMB27-60 | 60 | 20 | 60 | 27 | 5.8 | 12 | 7.00 |
| BT50*FMB27-100 | 100 | 20 | 60 | 27 | 5.8 | 12 | 8.00 |
| BT50*FMB27-150 | 150 | 20 | 60 | 27 | 5.8 | 12 | 7.50 |
| BT50*FMB32-60 | 60 | 22 | 62 | 32 | 6.8 | 14 | 9.50 |
| BT50*FMB32-90 | 90 | 22 | 62 | 32 | 6.8 | 14 | 11.0 |
| BT50*FMB40-50 | 50 | 25 | 80 | 40 | 8.3 | 16 | 5.70 |
Other specifications are available upon request.
