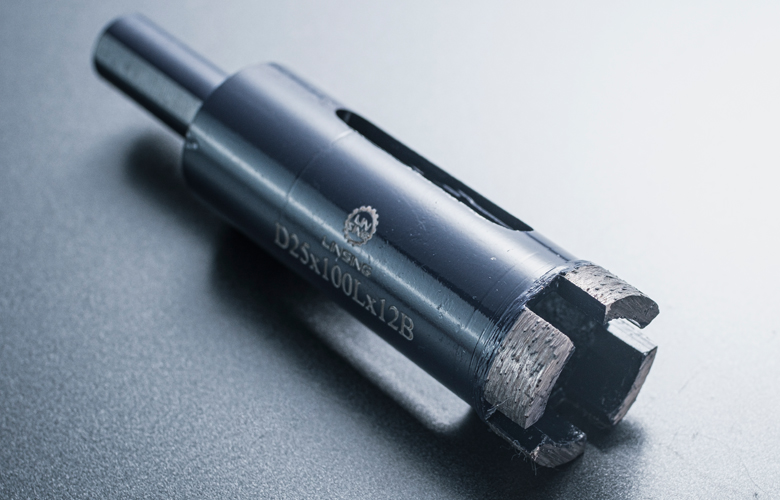

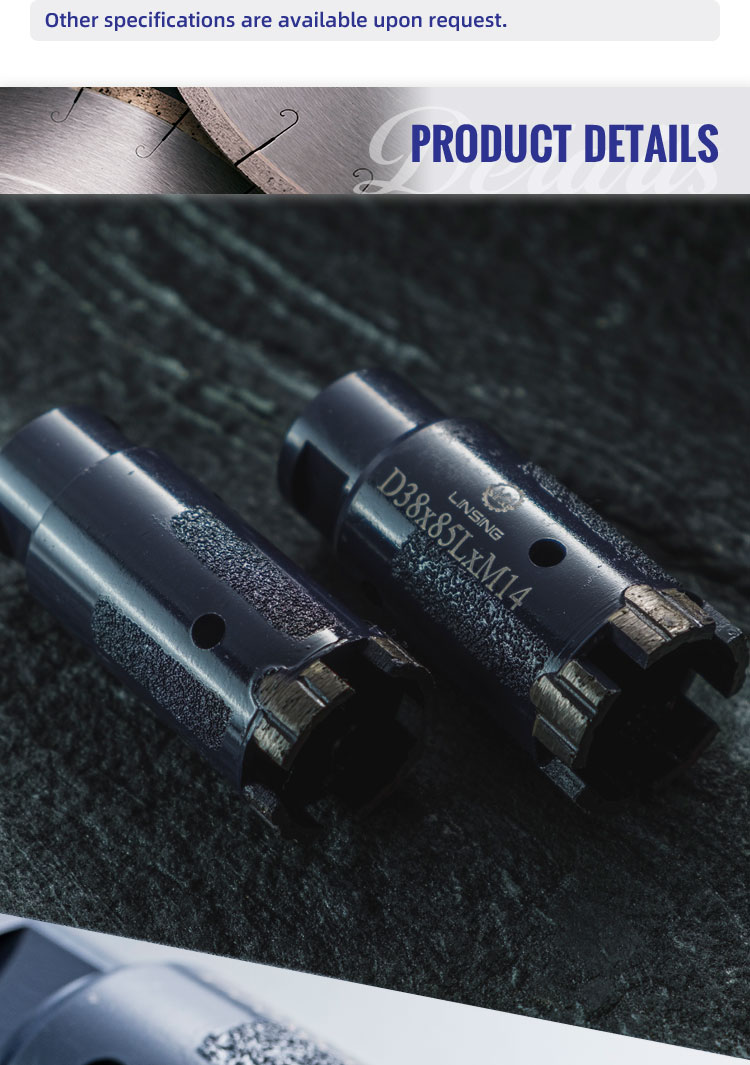

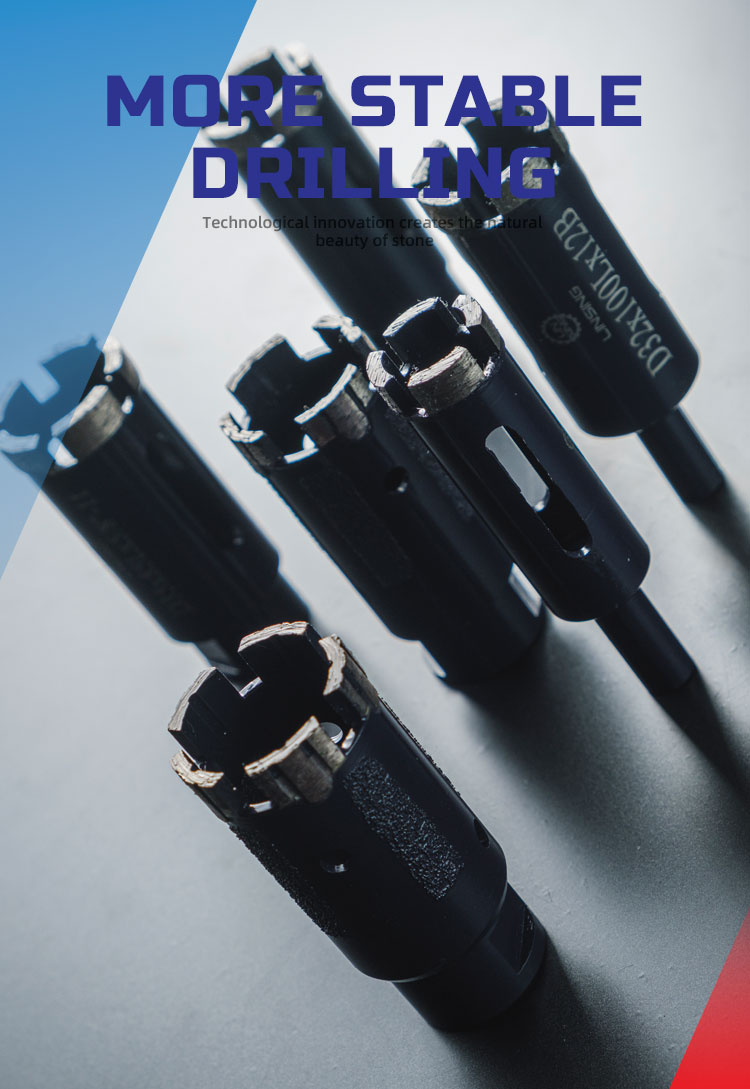

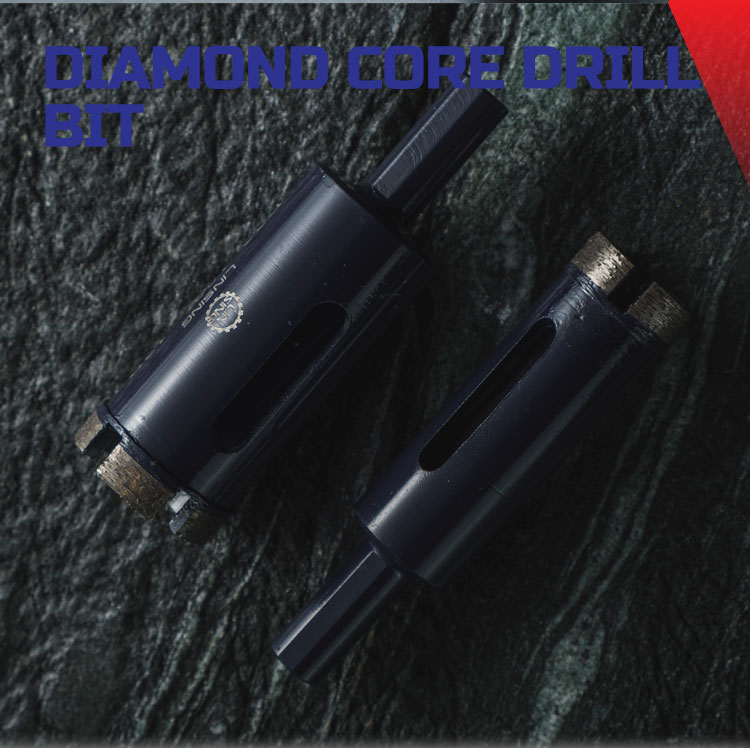

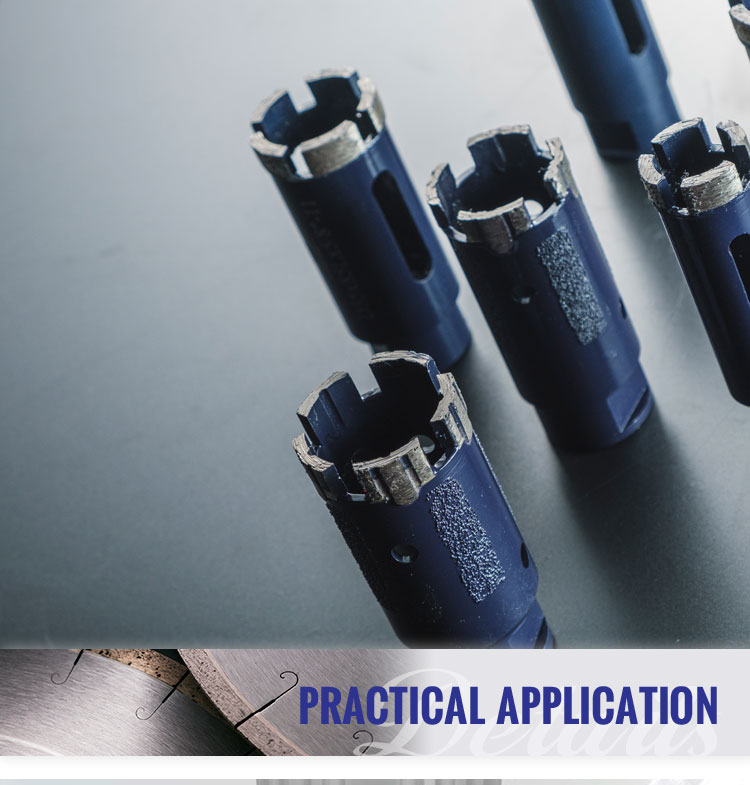

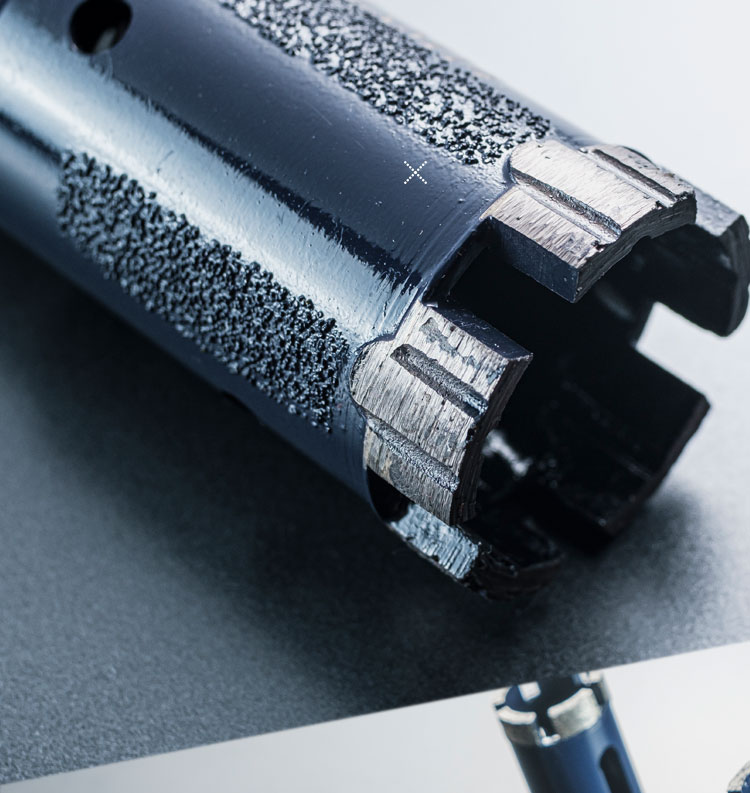

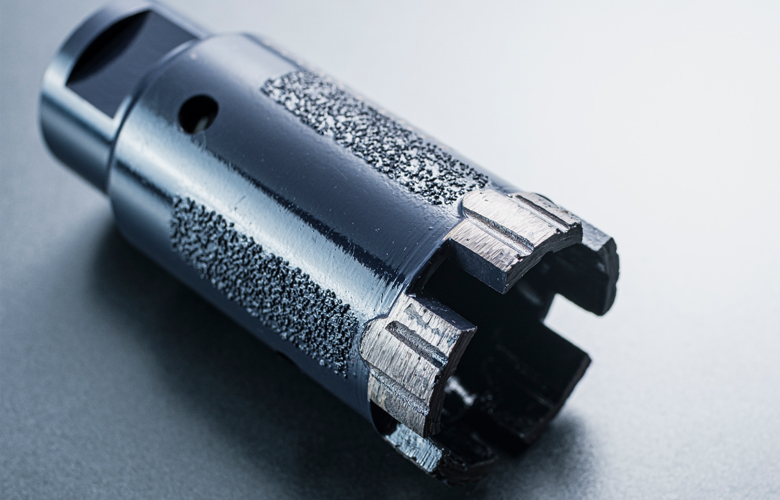

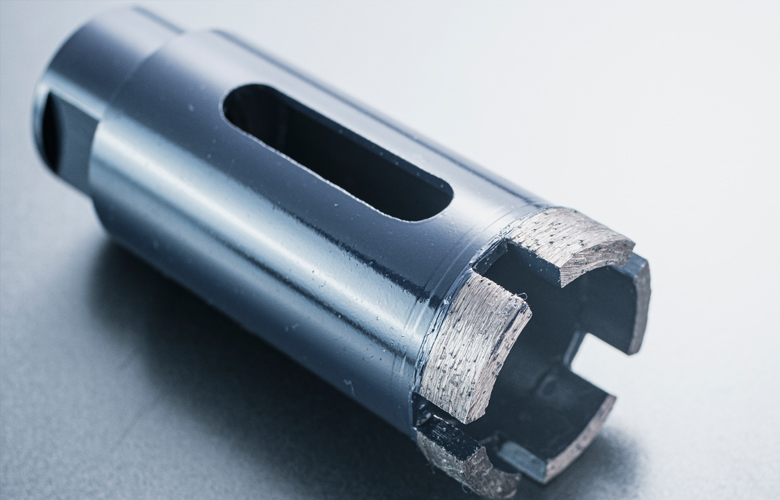

Diamond Core Drill Bit

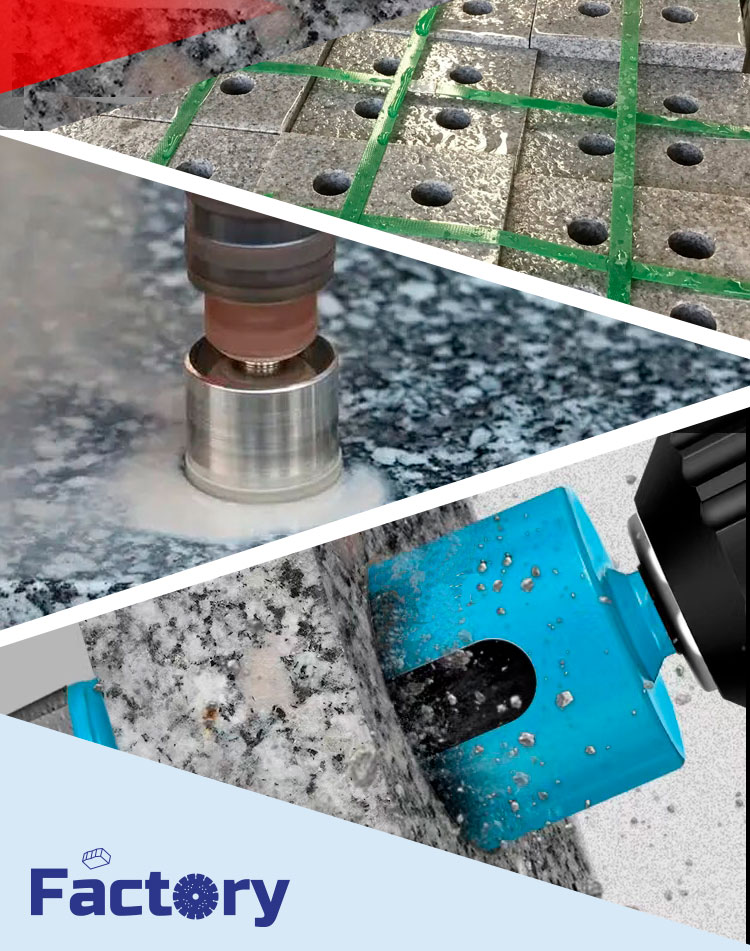

Diamond core drill bits use super grade diamond, with high drilling efficiency. They are commonly used for drilling hard materials such as stone, ceramic tile, reinforced concrete and so on.
Message

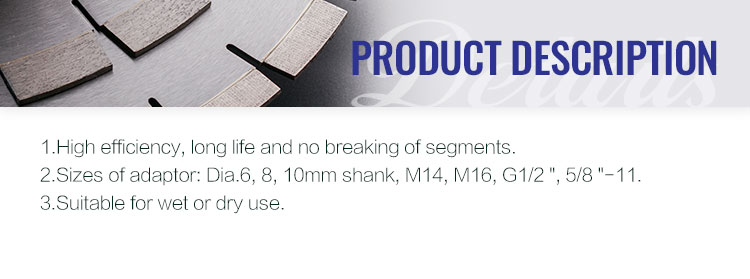

Product Features:
1. High efficiency, long life and no breaking of segments;
2. Sizes of adaptor: Dia.6, 8, 10mm shank, M14, M16, G1/2 ", 5/8 "-11;
3. Suitable for wet or dry use.

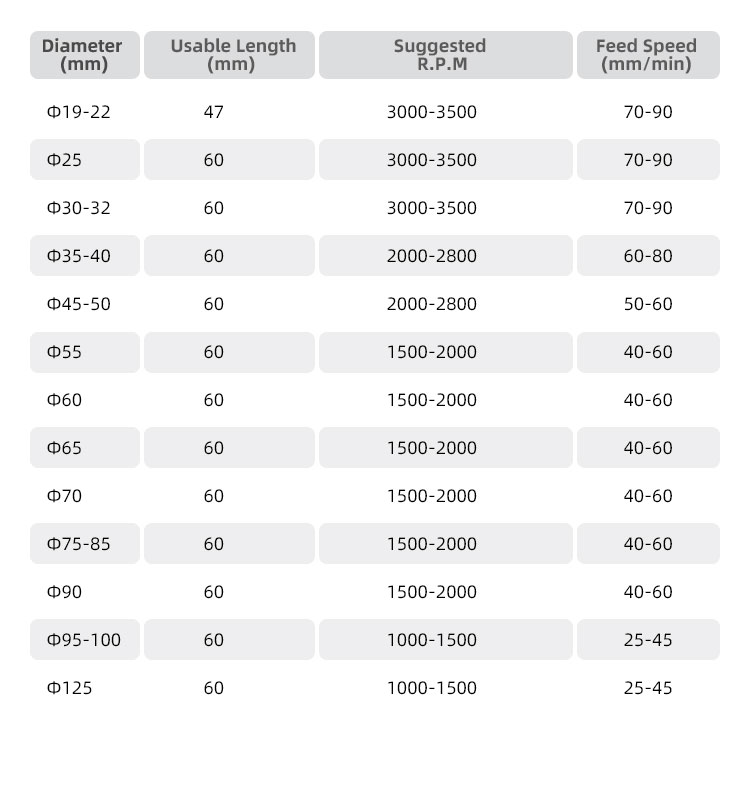

Product Specifications:
Diameter (mm) | Usable Length(mm) | Suggested R.P.M | Feed Speed (mm/min) |
19-22 | 47 | 3000-3500 | 70-90 |
25 | 60 | 3000-3500 | 70-90 |
30-32 | 60 | 3000-3500 | 70-90 |
35-40 | 60 | 2000-2800 | 60-80 |
45-50 | 60 | 2000-2800 | 50-60 |
55 | 60 | 1500-2000 | 40-60 |
60 | 60 | 1500-2000 | 40-60 |
65 | 60 | 1500-2000 | 40-60 |
70 | 60 | 1500-2000 | 40-60 |
75-85 | 60 | 1500-2000 | 40-60 |
90 | 60 | 1500-2000 | 40-60 |
95-100 | 60 | 1000-1500 | 25-45 |
125 | 60 | 1000-1500 | 25-45 |
Other specifications are available upon request.
