Types of diamond segments for granite cutting

Publish date:2023-02-20 08:53:52 Article From:LINSING diamond tools Clicks:

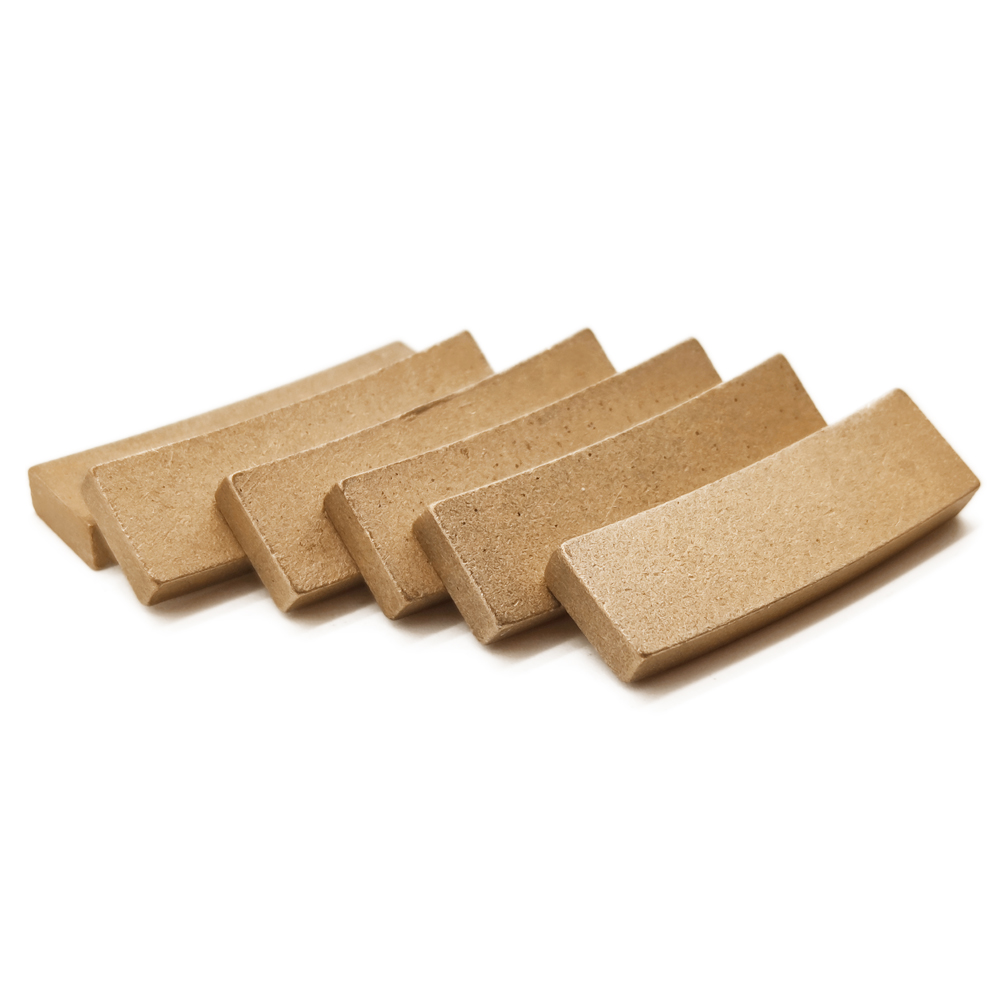

Diamond segment for quarry
The granite segment for quarry is a sawing tool for the quarry cutter. The granite segment for quarry is welded on the diamond saw blade body with a suitable diameter, and the mine is cut at a fixed height and width by the circular saw machine, so as to meet the customer's demand for cutting blocks, this kind of diamond segment is widely used in granite mines. It is a necessary diamond cutting tool with the highest mining efficiency, the best stability and the most stone saving in granite mines. The diamond segment for quarry is mainly equipped with two different combinations of two-piece group and three-piece group. The diameter range of the saw blade is 2400-4600mm, which meets the mining depth range (block height) of 800-2200mm for granite mining.
quarrying segmentsMulti-blade segment
The multi-blade segment is a sawing tool used for a multi-blade combined cutting machine with a fixed substrate thickness. The main job is to cut the block into plates with the same thickness. The main specifications of the segment are determined by the thickness of the substrate of the saw blade depends, such as 5.5mm, 6.0mm, 6.5mm, 7.2mm. These four types of substrate thickness are more commonly used. However, as the substrate begins to appear ultra-thin, thinner blades are matched with thinner blades. The combined saw blade segment has become a trend.

Single blade diamond segment
The single-blade segment is a kind of sawing tool used for gantry cutting or single saw blade cutting machine. Its main purpose is to cut blocks into plates or cut blocks into small blocks. This type of diamond segment size are determined by different saw blade diameters and substrate thickness. The single-blade segment can also be used for trimming of blocks, and is used for welding on a stone trimming machine to complete the process of shaping blocks.

Granite segment for splitting
The diamond segment for splitting is a kind of cutting tool commonly used for cutting blocks with a diameter range of 500-850mm. The function of the diamond segment for splitting is to cut small and medium-sized blocks into smaller blocks. In the actual application process, the splitting segment is often used in cutting machines, cutting tombstones, monuments, special-shaped stones, roadside stones and other different shapes of stone cutting.

Granite segment for edge cutting

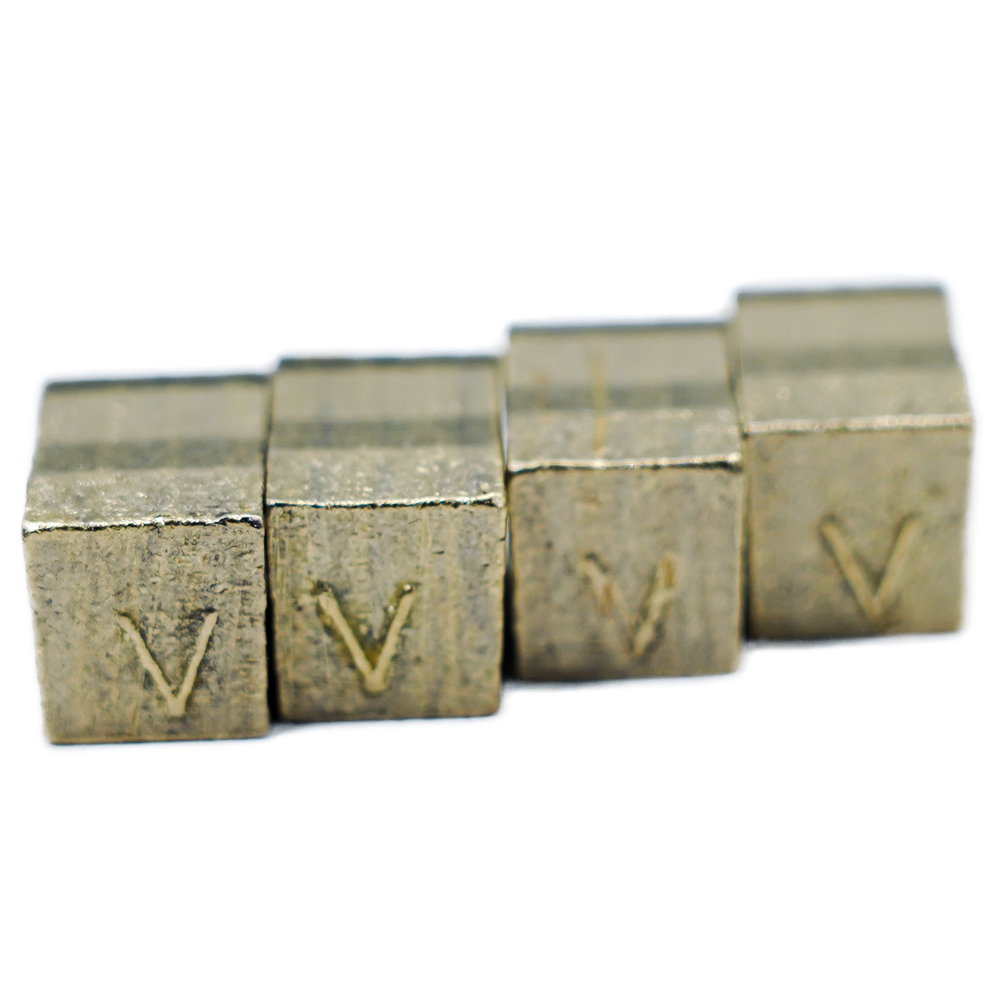

Granite segment for edge cutting is a diamond tool with a diameter range of 250-450mm for stone edge cutting, mainly used for cutting large stone slabs or slabs into specifications or various sizes of slabs. There are many types of granite edge trimming segments, such as short-toothed segments, V-shaped segments, arc-shaped segments and fan-shaped segments are more common shapes. In terms of manufacturing process, it is divided into orderly arranged and non-orderly arranged segments. Among them, the saw blades with orderly arranged segments have more than 30% higher cutting efficiency and service life than traditional saw blades. improve.
diamond segments for granite cuttingGranite edge trimming blades are also divided into dry cutting saw blades and wet cutting saw blades according to different usage scenarios. Dry cutting saw blades are also divided into brazed saw blades and laser welding saw blades; Wet cutting saw blades are also divided into high-frequency welding saw blades or laser welding saw blades. Among them, the wet cutting saw blade has a higher cutting life, higher cutting efficiency, and has a better effect on environmental protection.

Diamond segment for diamond disc
Diamond segment for diamond disc is a general term for saw blades with a diameter less than or equal to 230mm. However, the production process of small slicing is mostly cold-pressed sintering. Generally, the diamond segment and the base of diamond disc are combined by cold-pressed sintering, and the disc cannot be reused. Because diamond discs are mostly used for hand-held machines or table saws. Their strength and speed are poor, and their cutting performance is often poor.
