Production process of diamond segment for stone processing

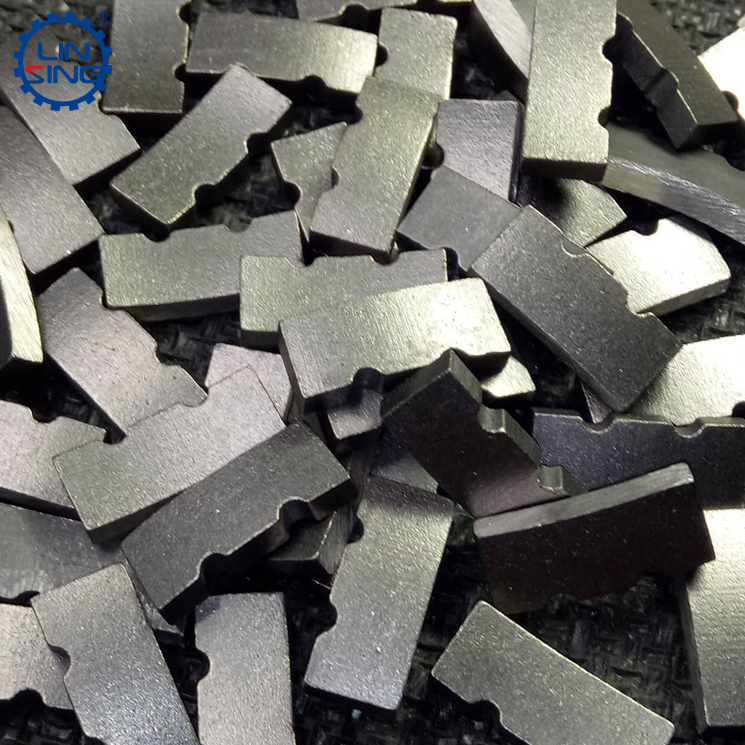

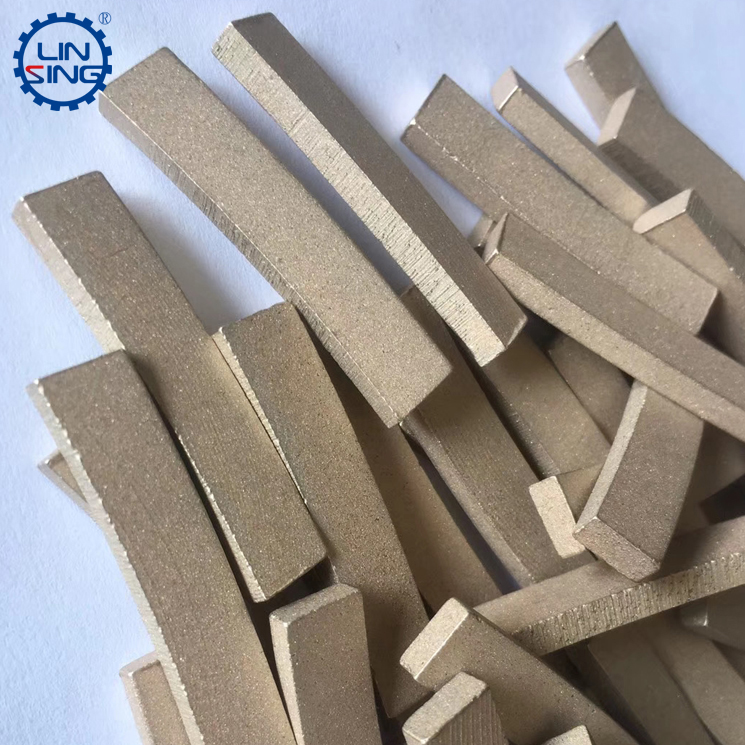

The diamond segment is composed of two parts: diamond and matrix bond. According to the different cutting objects, such as marble, in the process of cutting such stones, due to the soft marble material and poor abrasiveness, the diamond concentration in the segment is required to be high. While the granite part, because of its hard material and strong abrasiveness, it has extremely high requirements on the strength and abrasiveness of the carcass, but no matter which kind of segment, there is a similar processing flow.

1: Prepare raw materials. There are more different materials of stone, according to the formula, various metal powders, such as copper, iron, tin, cobalt and other metals, and diamond powder with a certain particle size ratio, are prepared according to the formula, in order to better increase the diamond and metal bond holding power to increase the service life of the segment, the diamond used for the segment is often treated with special treatment, such as plating titanium on the surface of the diamond.

2: Mixing. Put a good ratio of metal powder and diamond, plus some binders, such as boron, such as paraffin wax and other materials into the 3D mixing machine, and mix these materials thoroughly by stirring for 1-2 hours.



3: Cold pressing and weighing. Pour the mixed material into the powder silo of the cold press, the powder will be pressed into a block through the extrusion of the steel mold, and the cold pressed sheet is weighed on the electronic scale, and the weight, volume and appearance are measured. Products with serious deviations or obvious defects are trimmed and cold pressed again.

4: Install the mold. Put the cold-pressed sheet into the graphite grinding tool layer by layer. If the middle layer is an iron blade, clamp the iron sheet in the middle of the sheet, and then tighten the screw.

5: Hot pressing and sintering. Put the assembled mold into the sintering machine, adjust the sintering temperature, and the sintering time. Through long-term heat preservation and pressure preservation, the diamond and the matrix binder are fully sintered to form the final product.

6: Cooling and dismantling the mold. The sintered segment is placed at room temperature for cooling. After the mold is completely cooled, the segment can be taken out of the mold. This process is also called mold removal.

7: Post-processing of the segment. The diamond segment comes out of the mold. There are many sharp edges and corners, and some residual metal fragments are attached to the surface of the segment. Through sandblasting and polishing, the surface of the segment presents a smoother and more beautiful appearance.



8: According to the customer's needs, the segment can be edged, sharpened, marked, and welded with arrows. In response to customer needs, Linxing Diamond Tools Co., Ltd will provide a series of services that facilitate customers to better use the segment, and make the products more cost-effective and applicable.

9: Inspection. According to industry standards, the company uses random inspections to test products. According to the weight, size, appearance, and color deviation of the segment, the actual welding test of some segments is carried out, and the batch of products is judged according to the cutting situation. Quality situation.

10: Packaging. The inner packaging is used first, and then the outer packaging, including label sealing, sealing tape, and palletizing, is ready for delivery.

Although the segment is an inconspicuous diamond product, in Linxing, every segment has been carefully processed and polished, and each segment can play its role well. This is every Lin Xing people's true thoughts in their hearts.
