Definition and design concept of layered diamond segment

A Compartment segment, also known as a layered segment, a multi-layered segment, is a segment that divides into many cutting layers (also known as working layers, which are blocks used for cutting) and non-cutting layers (non-cutting layers, also known as non-working layers, also known as water). As the name implies, is the groove of drainage crumbs), in the design process, the most common is the cutting layer and non-cutting layer in accordance with the N1 and N between the arrangement of the arrangement, usually arranged in order of cutting layer, non-cutting layer, cutting layer, non-cutting layer ..., such a cycle down, because of the stress of the cutting layer holding diamond, so the general cutting layer cannot be too fine, so N generally not more than 9 layers, the general diamond segment design for 7 layers, divided into 4 layers of cutting layer and mixed with 3 layers of non-working layer.



So why design the compartment segment? There are three main reasons:

1: Reduce costs, the non-working layer inside the compartment segment does not contain diamond, and in the choice of metal elements will also use cheaper powder or iron sheet, in the case of a certain size of the segment, powder and iron sheet use, to a certain extent, reduce the use of diamond and rare metal powder, thereby reducing the cost of raw materials.

2: Improve cutting efficiency, the non-cutting layer of the layer segment is very easy to wear, when the non-cutting layer wear process, the cutting layer is also exposed, reduce the cutting area, in the case of pressure to maintain a certain amount, the pressure is certain to increase, so the blade on the blade in the cutting process is more sharp. In the past, before the compartment segment did not appear, the knife segment often appeared to cut, the main reason is that the knife blunt led to bend blades, and the compartment segment greatly alleviated the occurrence of this situation.

3: Reduce the process of cutting the blade of the segment, simplify the stone cutting process, we all know that the segment is installed on the blade, the first step is to open the blade of the segment, the cutting edge is to let the diamond segment exposed the process, is very necessary, but the cutting edge also increased the loss of diamond. And the compartment segment because there is a middle layer to join, the cutting edge has become very simple, many customers can cut retractable bricks on the compartment segment cutting edge, and also has a good cutting effect.

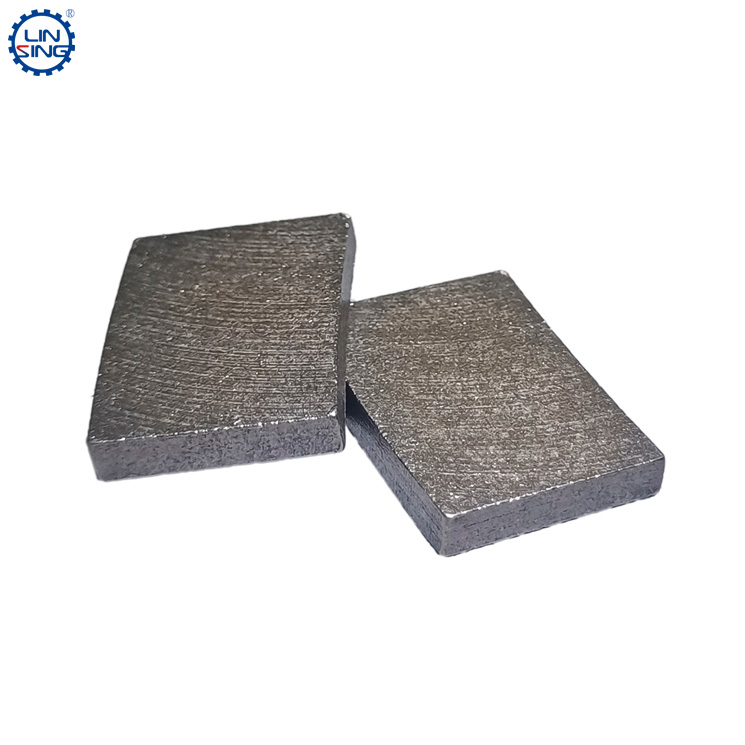

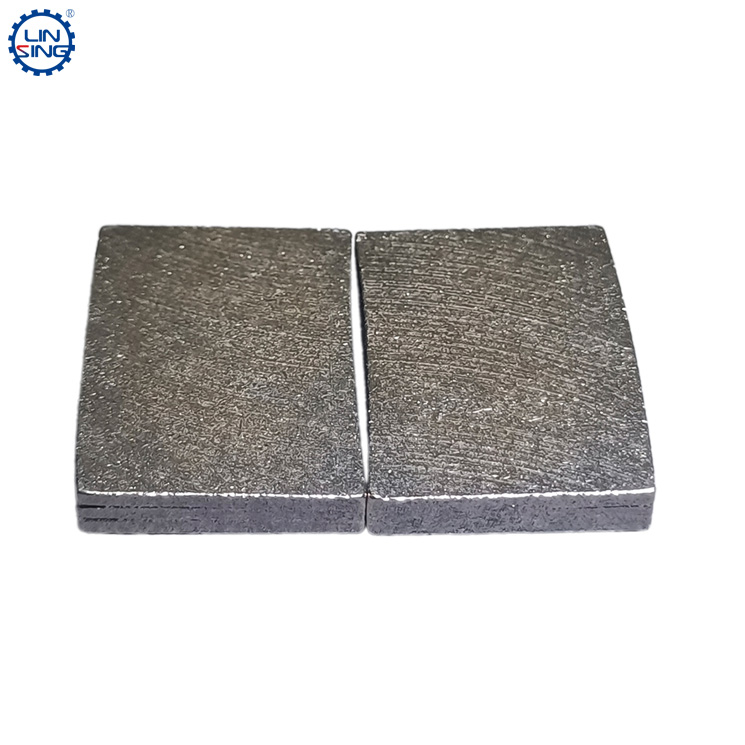

Linxing's compartment diamond segment has affordable, diverse styles, high sharpness, long cutting life and so on, especially the non-working layer for iron sheet compartment segment, high stability, low noise, compared with peer segment, life is 20 percent higher, by the vast number of customers praise and recognition.
