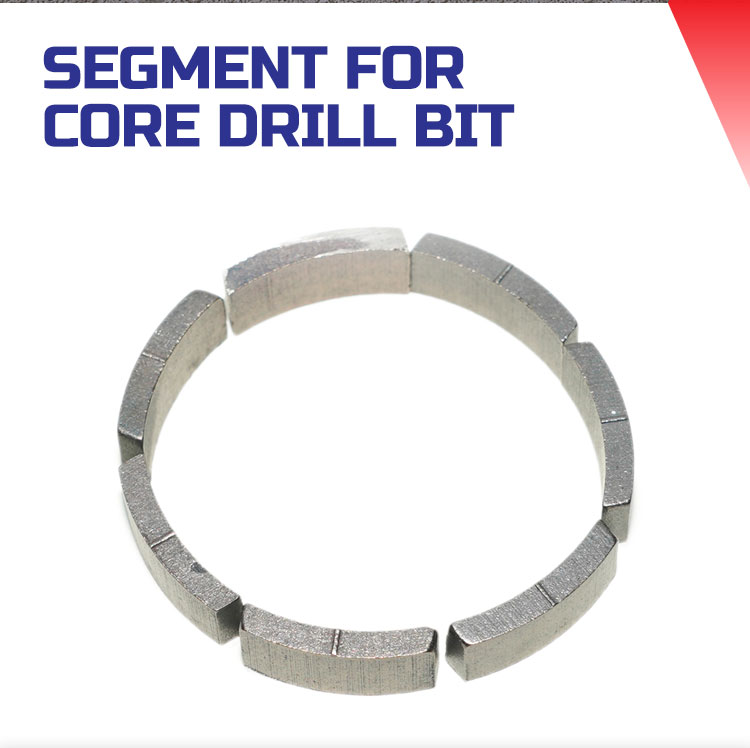

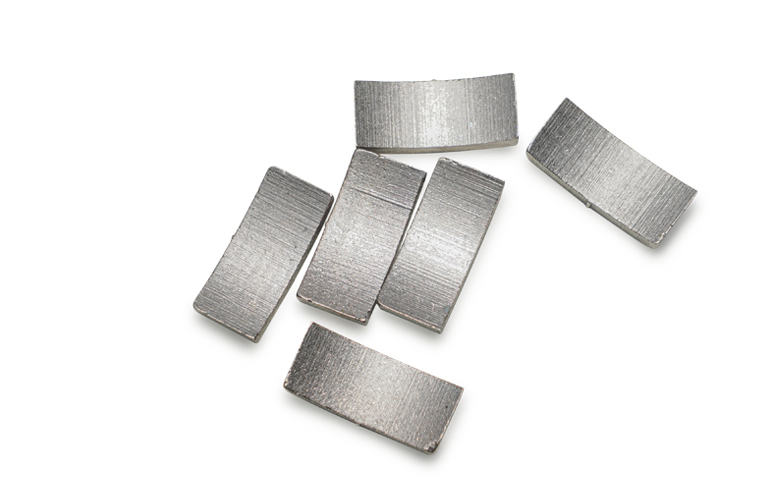

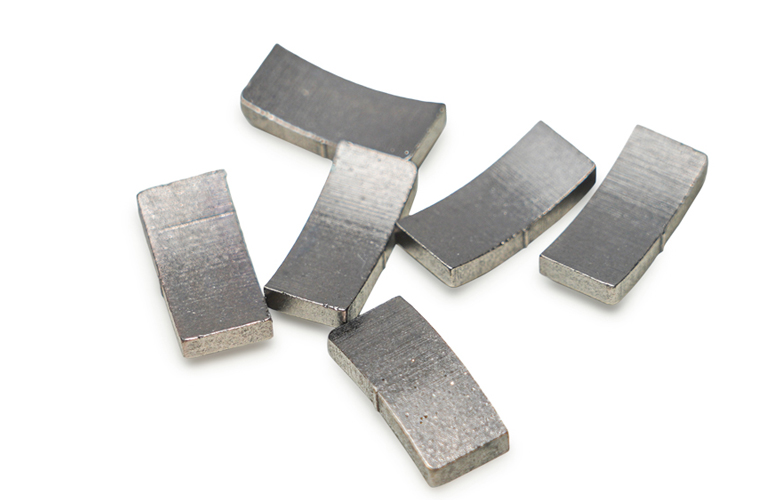

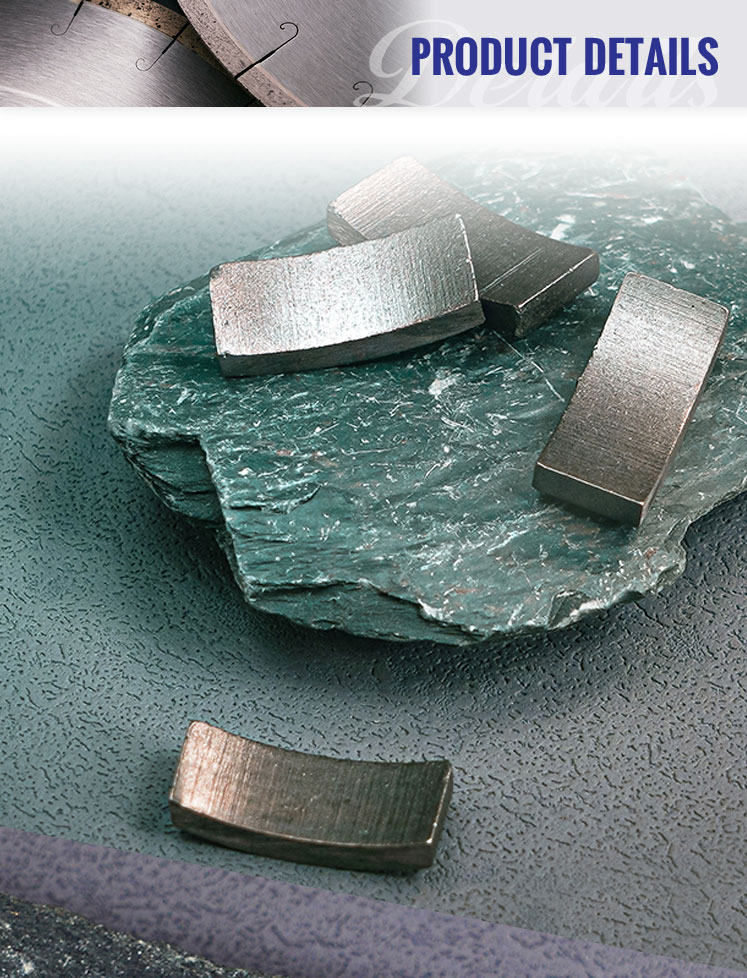

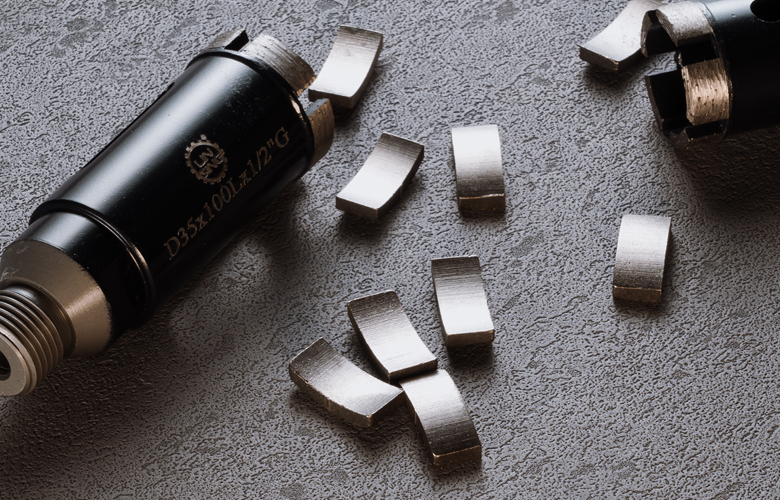

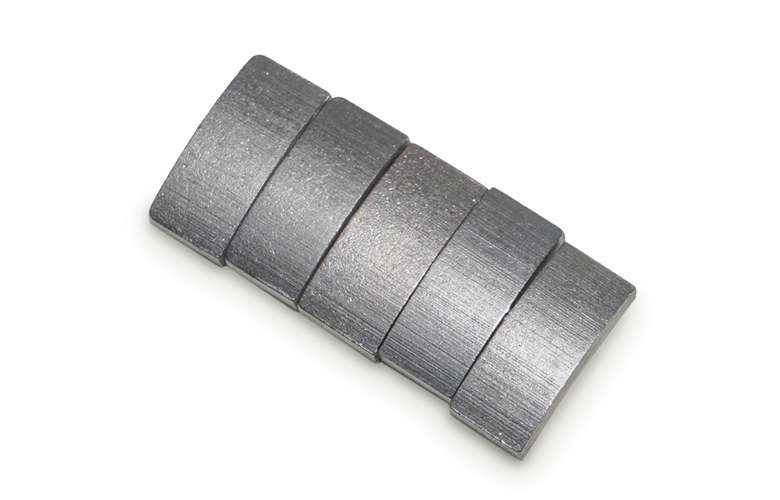

Diamond segment for core drill bit
Product Features:
1: Superior Cutting Performance: Diamond segments offer excellent cutting efficiency and precision, allowing for smooth and fast drilling through hard materials.
2: Long Service Life: Due to their exceptional hardness and wear resistance, diamond segments have a longer lifespan compared to traditional cutting tools.
3: Versatility: They can be used to drill various materials, including concrete, stone, granite, asphalt, and other construction materials.
4: Reduced Heat Generation: Diamond segments generate less heat during drilling, minimizing the risk of damage to the drilling surface and increasing the overall efficiency.
5: Minimal Chipping and Breakage: The precise and controlled cutting action of diamond segments helps to reduce chipping and breakage of the material being drilled.
6: Cost-Effectiveness: Although initially more expensive, the longer lifespan and higher performance of diamond segments result in cost savings over time.
7: Environmentally Friendly: Diamond segments create less dust and debris during drilling, making them environmentally friendly compared to other cutting methods.
8: Ease of Use: Core drill bits with diamond segments are easy to use, providing a stable and reliable drilling experience for operators.

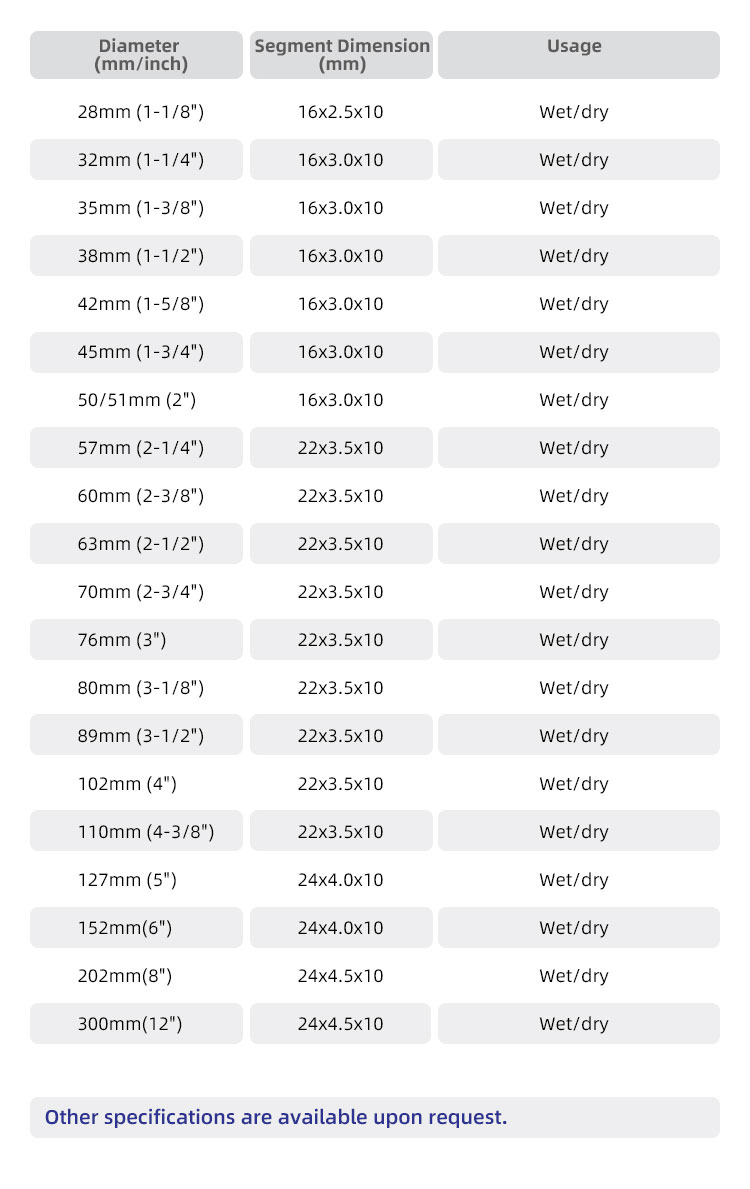

Product Specification:
| Diameter(mm/inch) | Segment Specification(mm) | Adaptor |
| 28mm (1-1/8") | 16x2.5x10 | M10, M12, M14, 5/8"-11, 1/2-G |
| 32mm (1-1/4”) | 16x3.0x10 | M10, M12, M14, 5/8"-11, 1/3-G |
| 35mm (1-3/8”) | 16x3.0x10 | M10, M12, M14, 5/8"-11, 1/4-G |
| 38mm (1-1/2”) | 16x3.0x10 | M10, M12, M14, 5/8"-11, 1/5-G |
| 42mm (1-5/8") | 16x3.0x10 | M10, M12, M14, 5/8"-11, 1/6-G |
| 45mm (1-3/4”) | 16x3.0x10 | M10, M12, M14, 5/8"-11, 1/7-G |
| 50/51mm (2”) | 16x3.0x10 | M10, M12, M14, 5/8"-11, 1/8-G |
| 57mm (2-1/4”) | 22x3.5x10 | M10, M12, M14, 5/8"-11, 1/9-G |
| 60mm (2-3/8”) | 22x3.5x10 | M10, M12, M14, 5/8"-11, 1/10-G |
| 63mm (2-1/2”) | 22x3.5x10 | M10, M12, M14, 5/8"-11, 1/11-G |
| 70mm (2-3/4”) | 22x3.5x10 | M10, M12, M14, 5/8"-11, 1/12-G |
| 76mm (3”) | 22x3.5x10 | M10, M12, M14, 5/8"-11, 1/13-G |
| 80mm (3-1/8”) | 22x3.5x10 | M10, M12, M14, 5/8"-11, 1/14-G |
| 89mm (3-1/2”) | 22x3.5x10 | M10, M12, M14, 5/8"-11, 1/15-G |
| 102mm (4”) | 22x3.5x10 | M10, M12, M14, 5/8"-11, 1/16-G |
| 110mm (4-3/8”) | 22x3.5x10 | M10, M12, M14, 5/8"-11, 1/17-G |
| 127mm (5”) | 24x4.0x10 | M10, M12, M14, 5/8"-11, 1/18-G |
Special requirements of various models can be customized.
