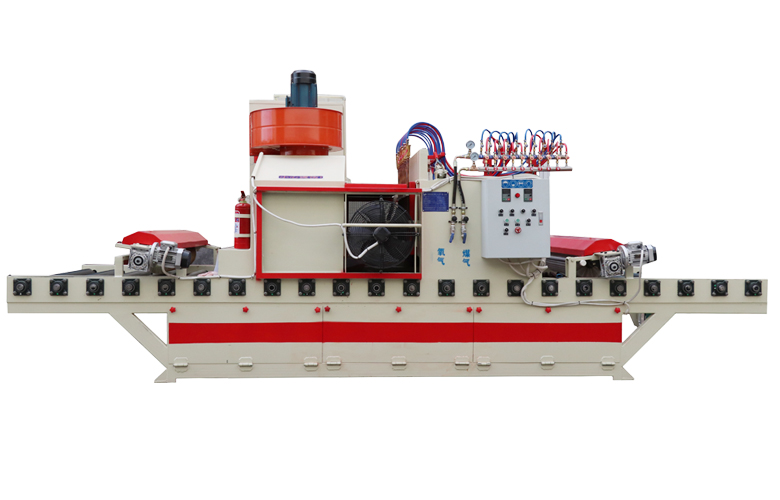

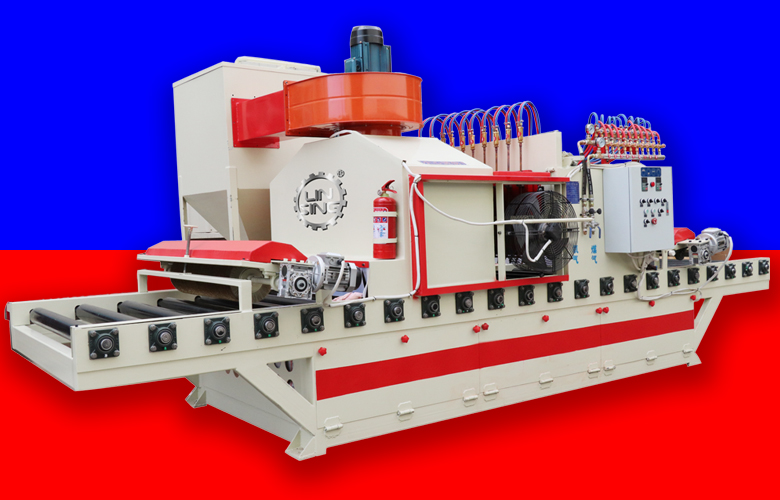

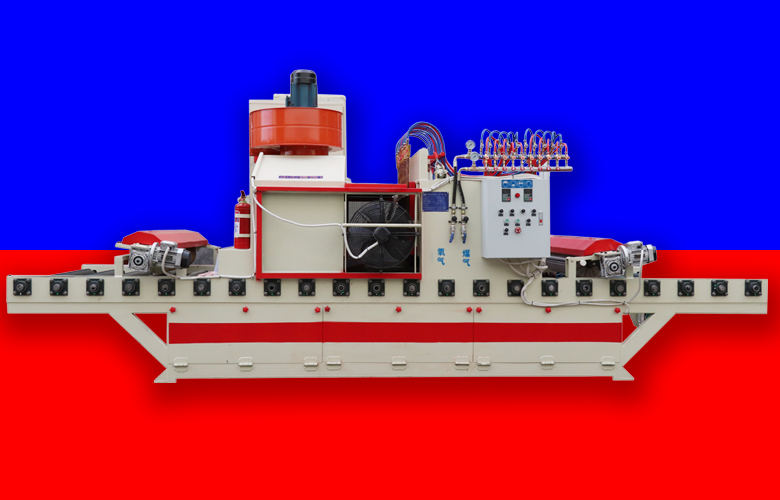

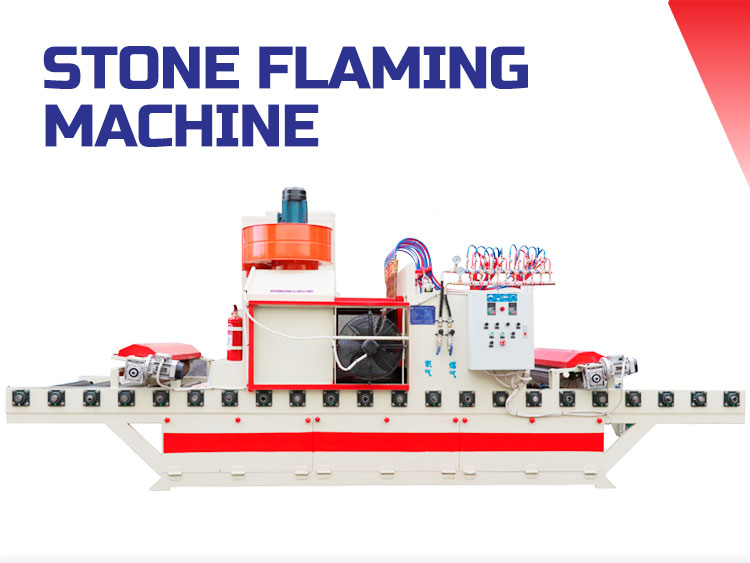

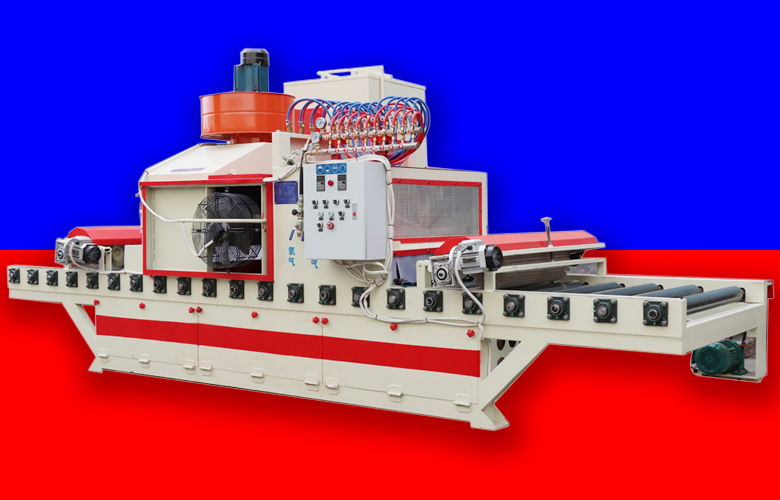

Full-Automatic Stone Flaming Machine

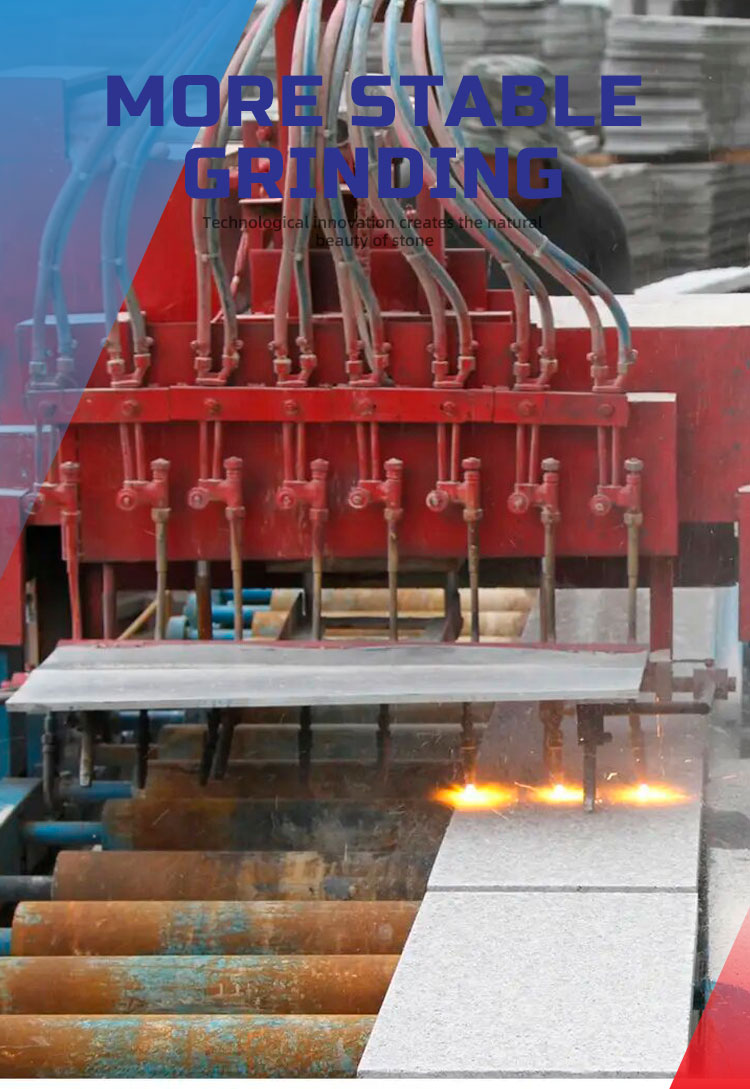

Stone flaming machine moved by chain and moving wheel, the stone is conveyed to the flaming area of the high-speed automatic stone flaming machine automatically. With characteristic of high automation, easy operation, even flaming surface, low energy cost, and high efficiency, the machine can be used to process 350 sqm/hour, which can save the labor intensity dramatically. This machine also has excellent energy saving performance, saving more than 15% energy than other flaming machine.
Message

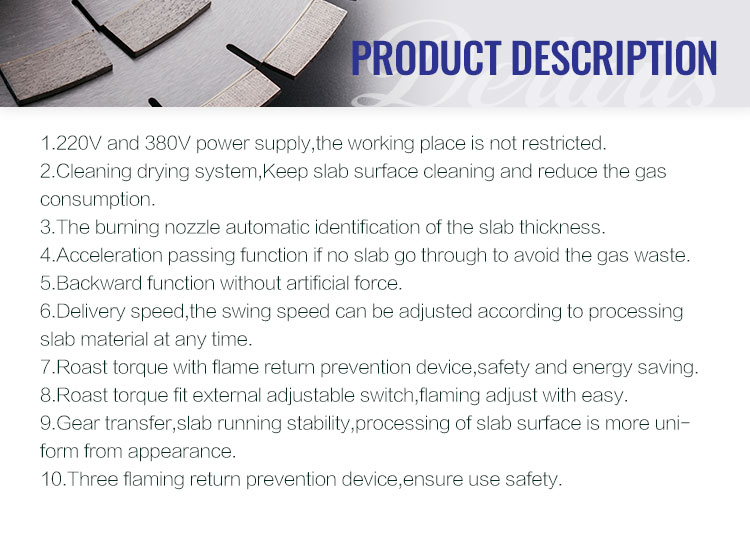

Product Features:

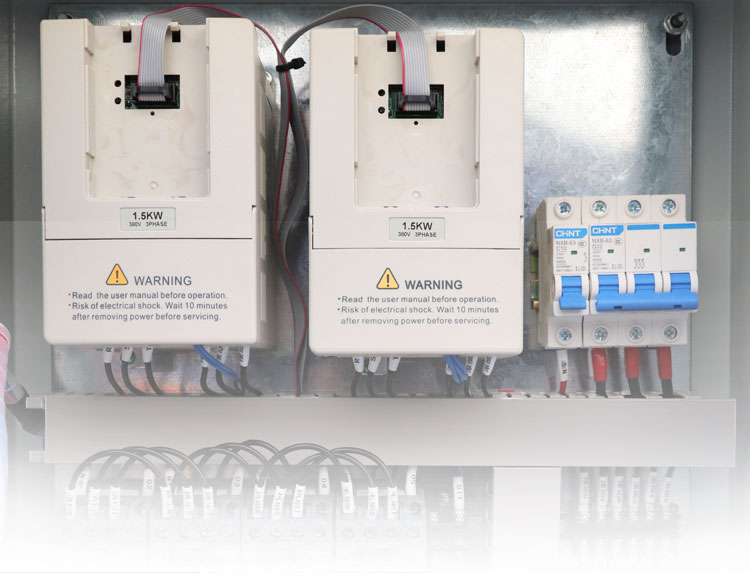

1.220V and 380V power supply,the working place is not restricted;
2.Cleaning drying system,Keep slab surface cleaning and reduce the gas consumption;

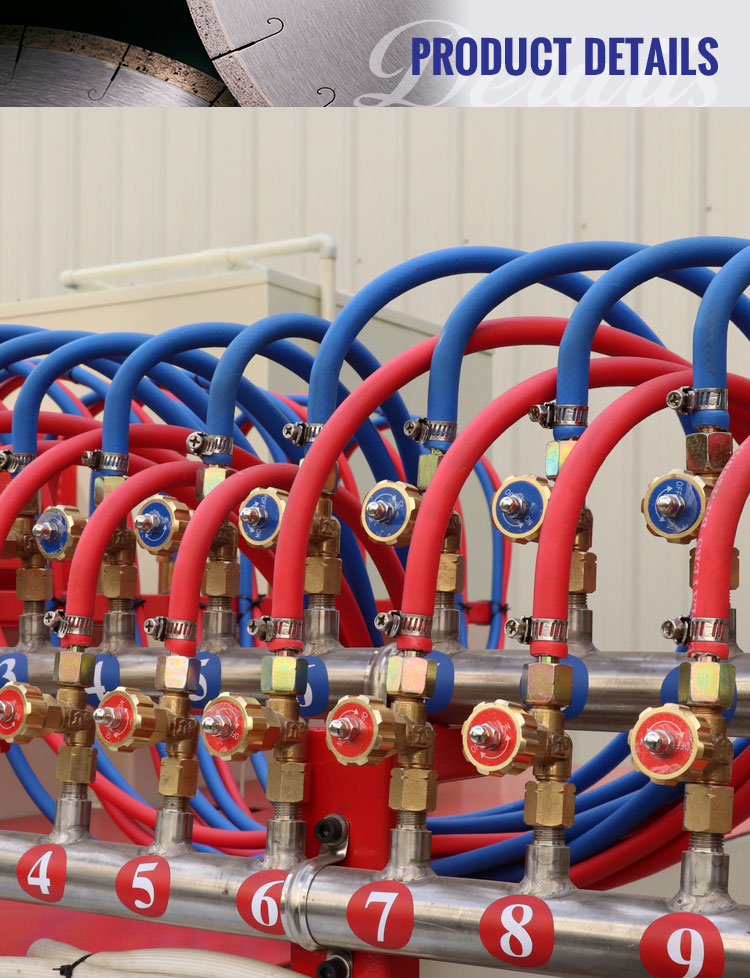

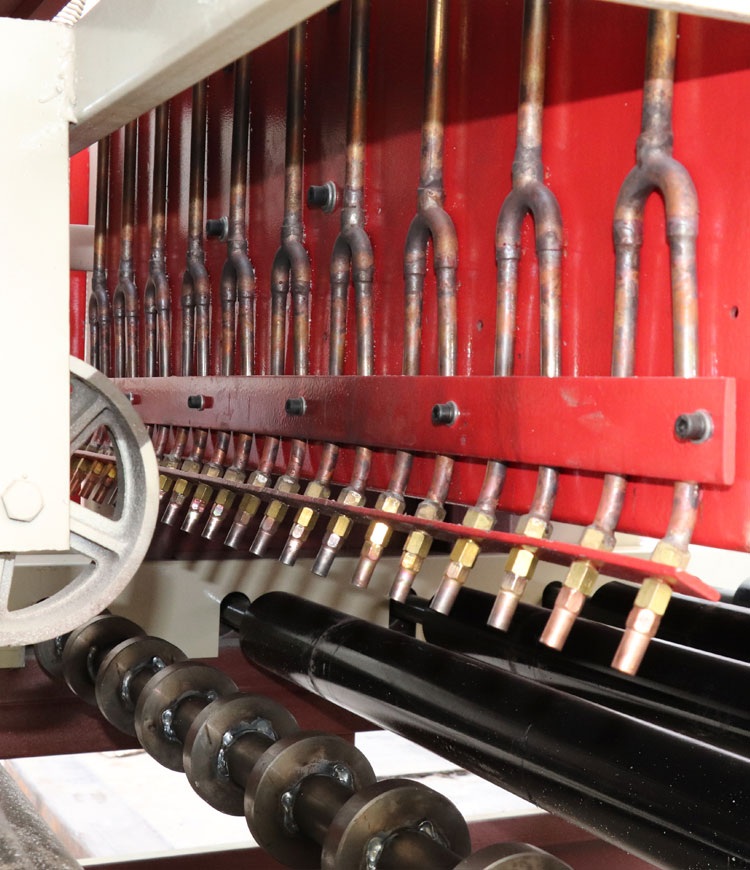

3.The burning nozzle automatic identification of the slab thickness;
4.Acceleration passing function if no slab go through to avoid the gas waste;
5.Backward function without artificial force;
6.Delivery speed,the swing speed can be adjusted according to processing slab material at any time;
7.Roast torque with flame return prevention device,safety and energy saving;
8.Roast torque fit external adjustable switch,flaming adjust with easy;
9.Gear transfer,slab running stability,processing of slab surface is more uniform from appearance;
10.Three flaming return prevention device,ensure use safety.

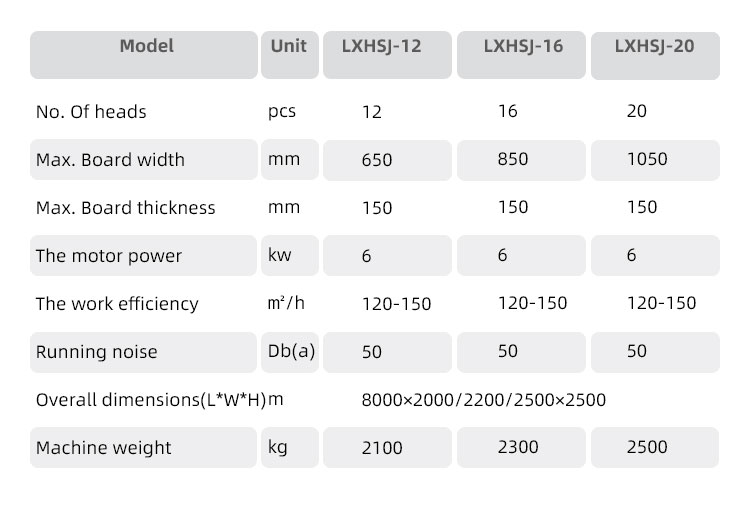

Product Specification:

TypeUnitLXHSJ-12LXHSJ-16LXHSJ-20
No. Of headspcs121620
Max. Board widthmm6508501050
Max. Board thicknessmm150150150
Motor powerkw666
Work efficiency㎡/hour120-150120-150120-150
Running noiseDb(a)505050
Overall dimensions(L*W*H)mm8000×2000×25008000×2200×25008000×2400×2500
Weightkg210023002500
