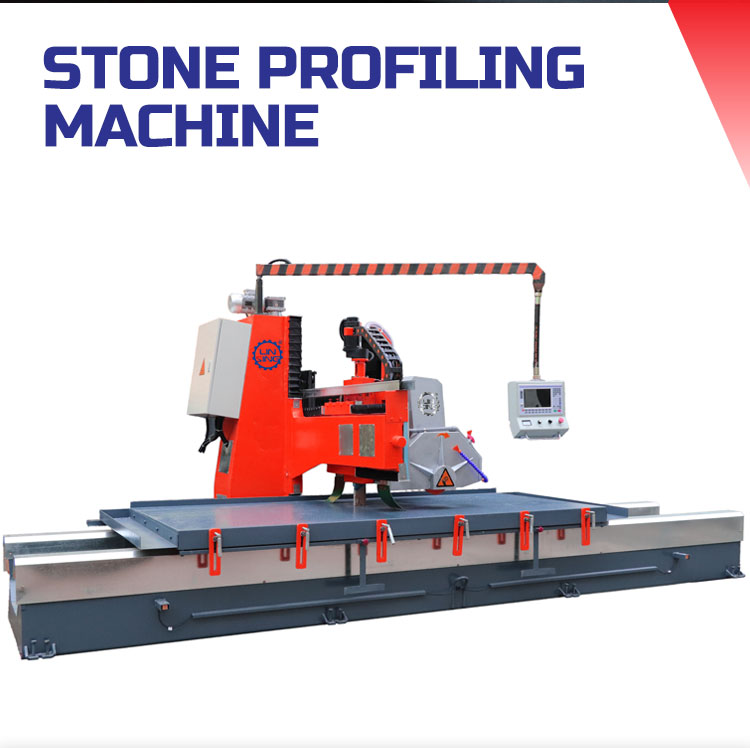

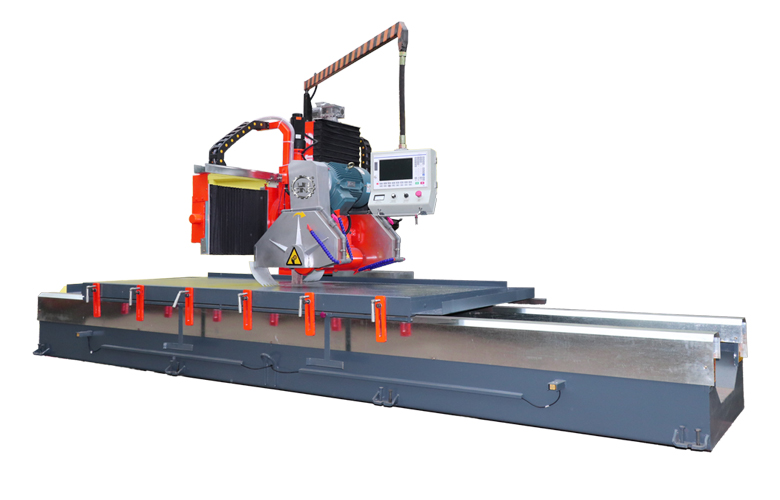

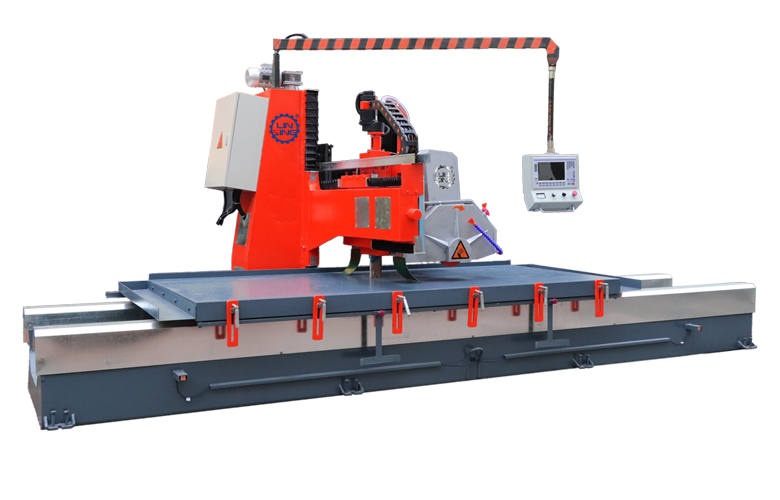

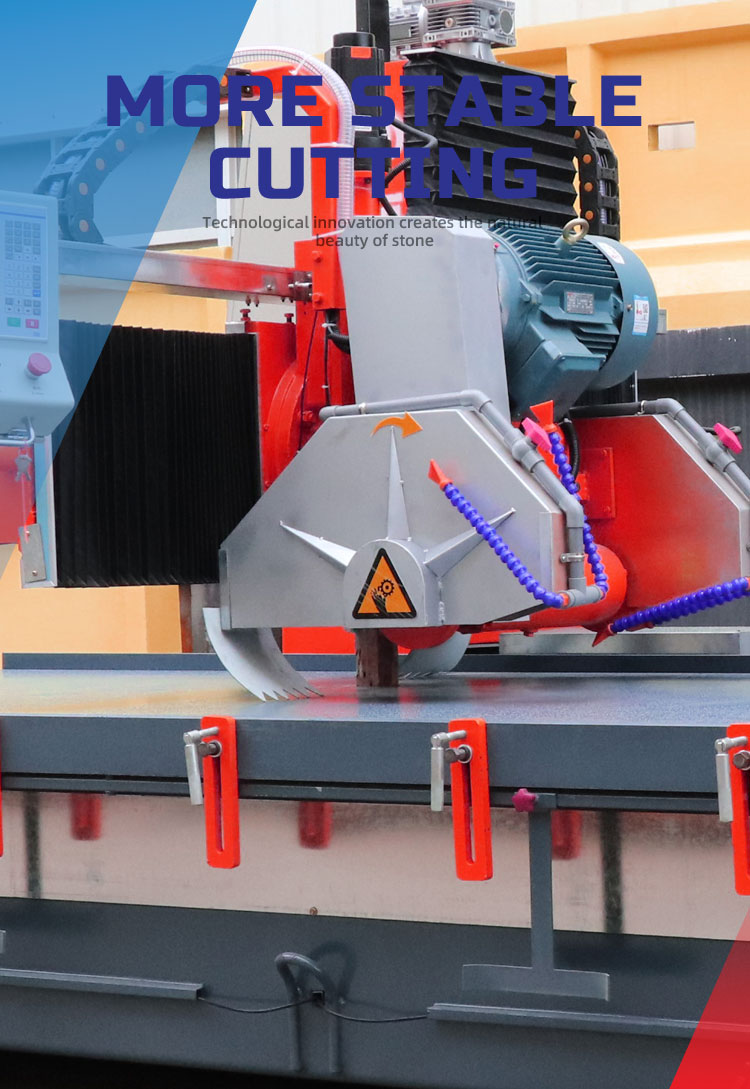

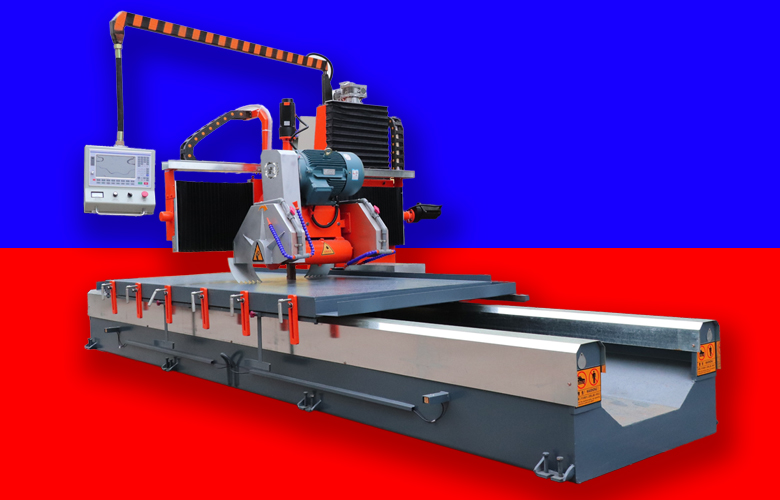

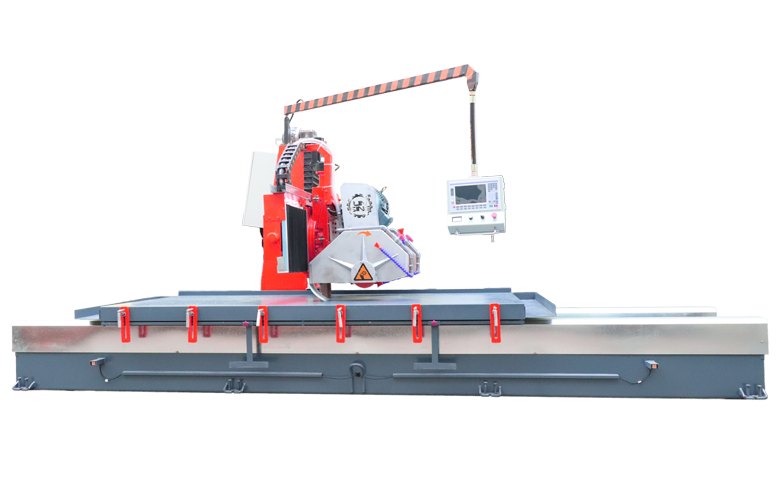

Multifunctional Stone Profiling Machine

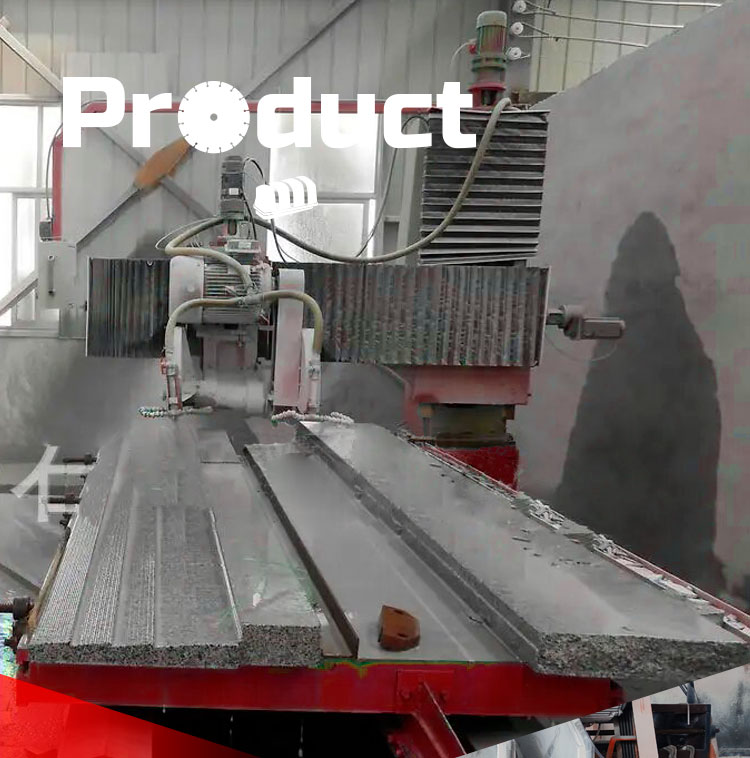

Multifunctional stone profiling machine works with double blades and automatic tracking shape of model. it is very easy to operate. It is automatically controlled by microcomputer, specially designed to carry out architectural shaping such as profile, roman column and other diverse shapes on granite and marble.
Message

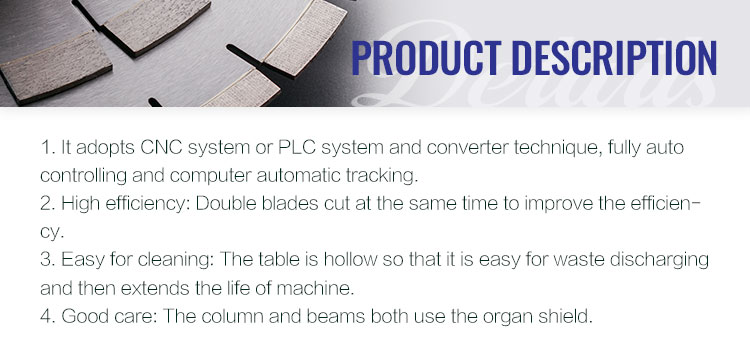

Product Features:

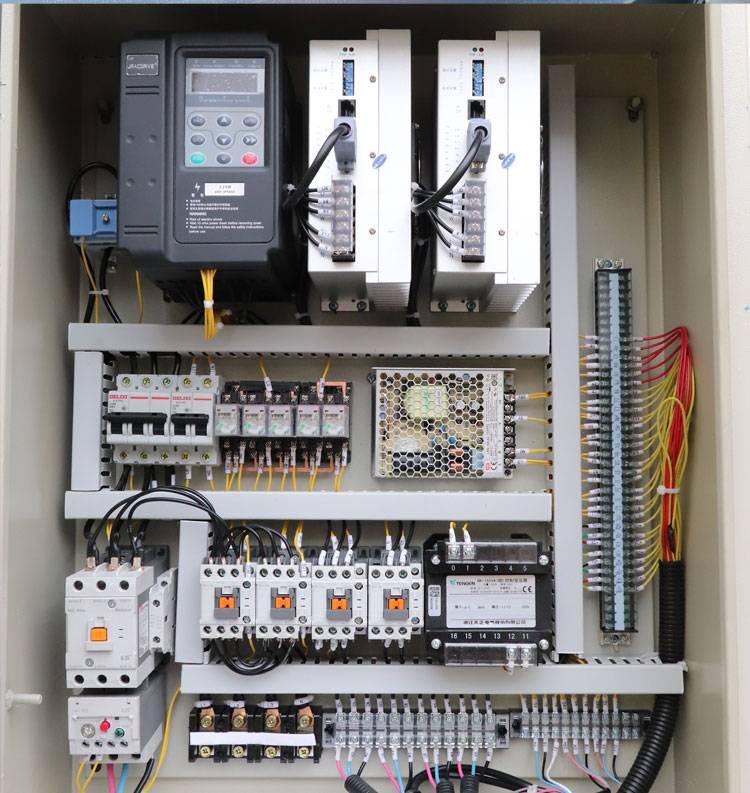

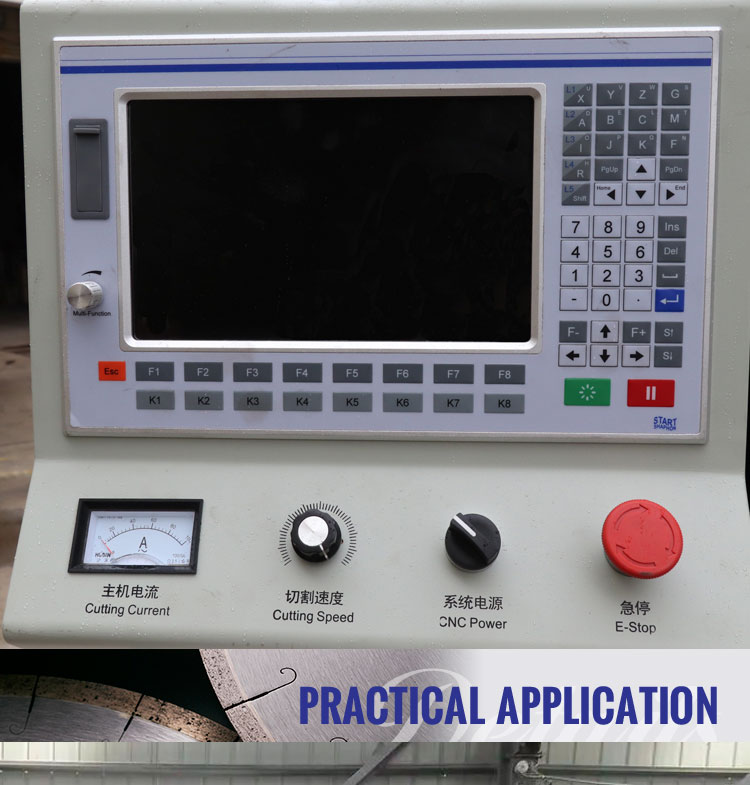

1. PLC programmable control type, easy to operate;
2. The working platform adopts oil-immersed seal guide rail;
3. Rack setted under the platform, symmetrical force, good rigidity and long service life;
4. Through optical fiber probe tracking, automatically cut according to the template mold profile;
5. A couple of blades mounted so as to process two stuffs at the same time for higher efficiency;
6. Equipped with precision mechanical parts and Japanese name brand electric parts, this machine provides high efficiency, stability, reliability.

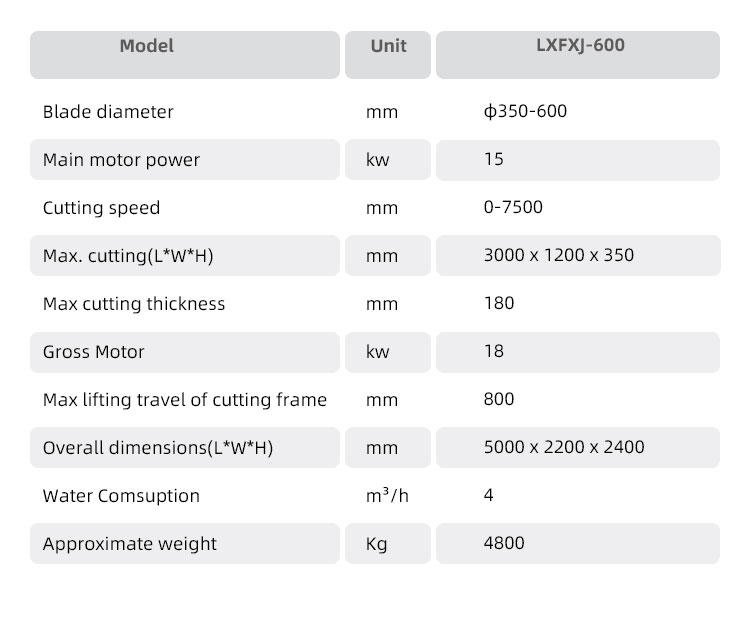

Product Specifications:
| Model | Unit | LXFX-600 |
| Blade diameter | mm | φ350-600 |

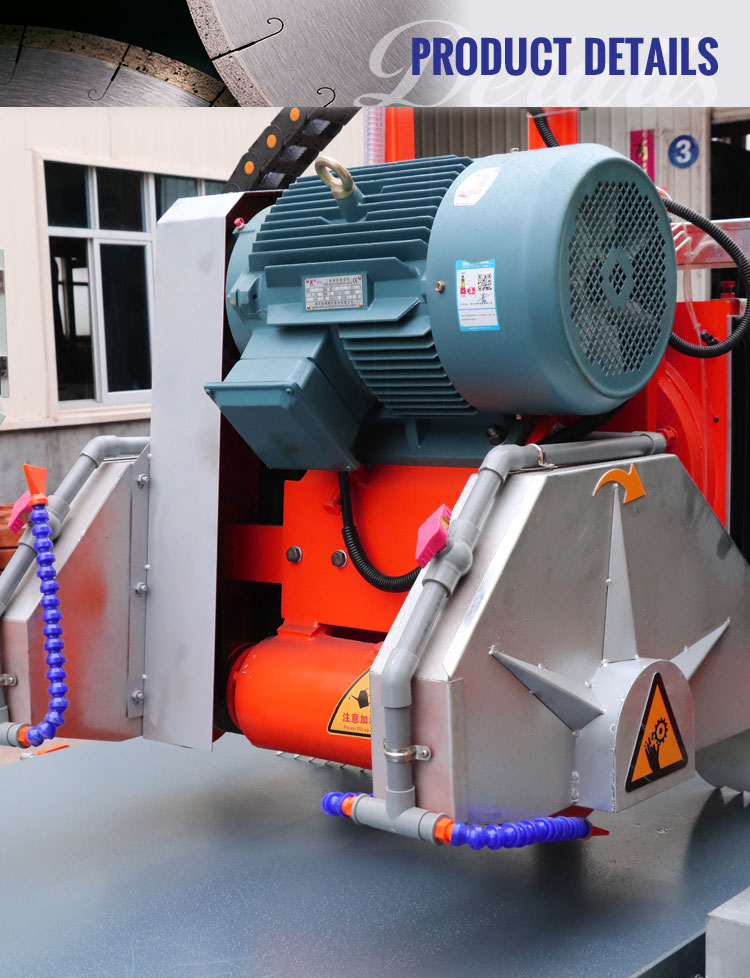

| Main motor power | kw | 15 |
| Cutting speed | mm | 0-7500 |
| Max. cutting(L*W*H) | mm | 3000 x 1200 x 350 |
| Max cutting thickness | mm | 180 |
| Overall dimensions(L*W*H) | mm | 5000 x 2200 x 2400 |
| Water Comsuption | m³/h | 4 |
| Approximate weight | Kg | 4800 |
